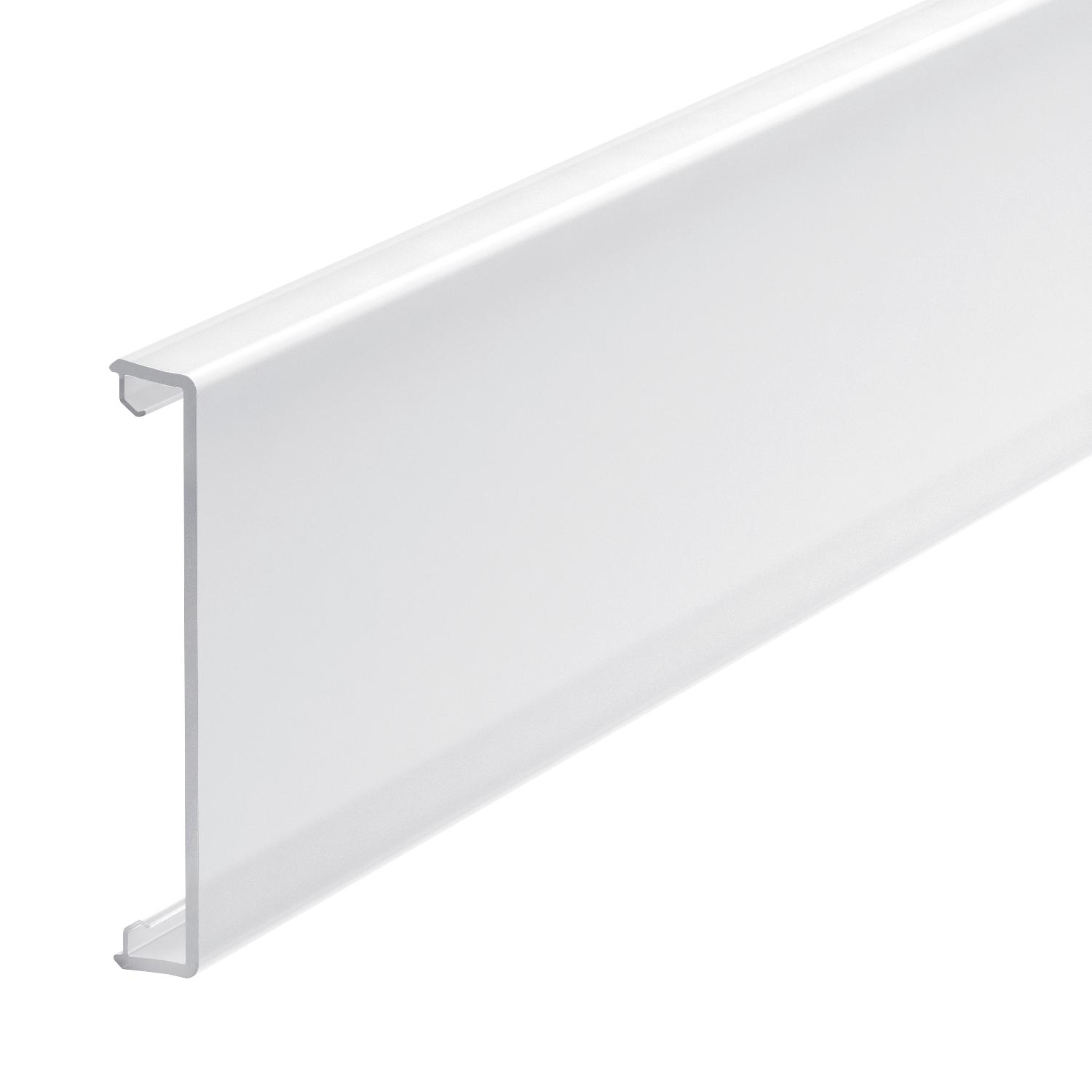

Cover Rapid 80, opal, smooth

Item no. 6278690 | EAN 4012196036233

6278690 / GK-OTGO
2000 mm
Transparent
Product description
Product description
Trunking cover for closing Rapid 80 GK (PVC), GS (steel) and GA (aluminium) device installation trunking as well as ISS service poles with a 76.5 mm system opening. The GK-OTGO cover is made from translucent but milky plastic (looking like cut glass) and is therefore suitable for integrating lighting in the trunking or service poles.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Transparent
Cover mounting type Internal
Dimension 80x2000mm
Halogen-free no
Height 12 mm
Length 2000 mm
Material Polycarbonate
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Version for Smooth
Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GK-OTGO 2000 mm Transparent 6278690
16 m
Downloads

Download

EU declaration of conformity GK-OTGO / 6278690 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
