Cover Signa Base OT 700802 2000 | Cream; RAL 9001

morepic-1

morepic-2

Cover Signa Base OT 700802

Item no. 6132735 | EAN 4012196717866

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Cover for closing the Signa Base device installation trunking.

Technical data

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Cover mounting type	Internal
Halogen-free	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	yes
Version for	Miscellaneous

Dimensions

Height	14 mm
Length	2000 mm

Width	79,4 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
BRK 700802 cws	2000 mm	Cream; RAL 9001	6132735	m	2 m
BRK 700802 rws	2000 mm	Pure white; RAL 9010	6132736	m	2 m
BRK 700802 lgr	2000 mm	Light grey; RAL 7035	6132737	m	2 m

Downloads

Data sheet BRK 700802 cws / 6132735 , 0.21MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

Declaration of conformity BRK 700802 cws / 6132735 , 0.17MB , pdf

REACH Declaration of conformity BRK 700802 cws / 6132735 , 0.12MB , pdf

Download

RoHS Declaration of conformity BRK 700802 cws / 6132735 , 0.12MB , pdf

Download

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

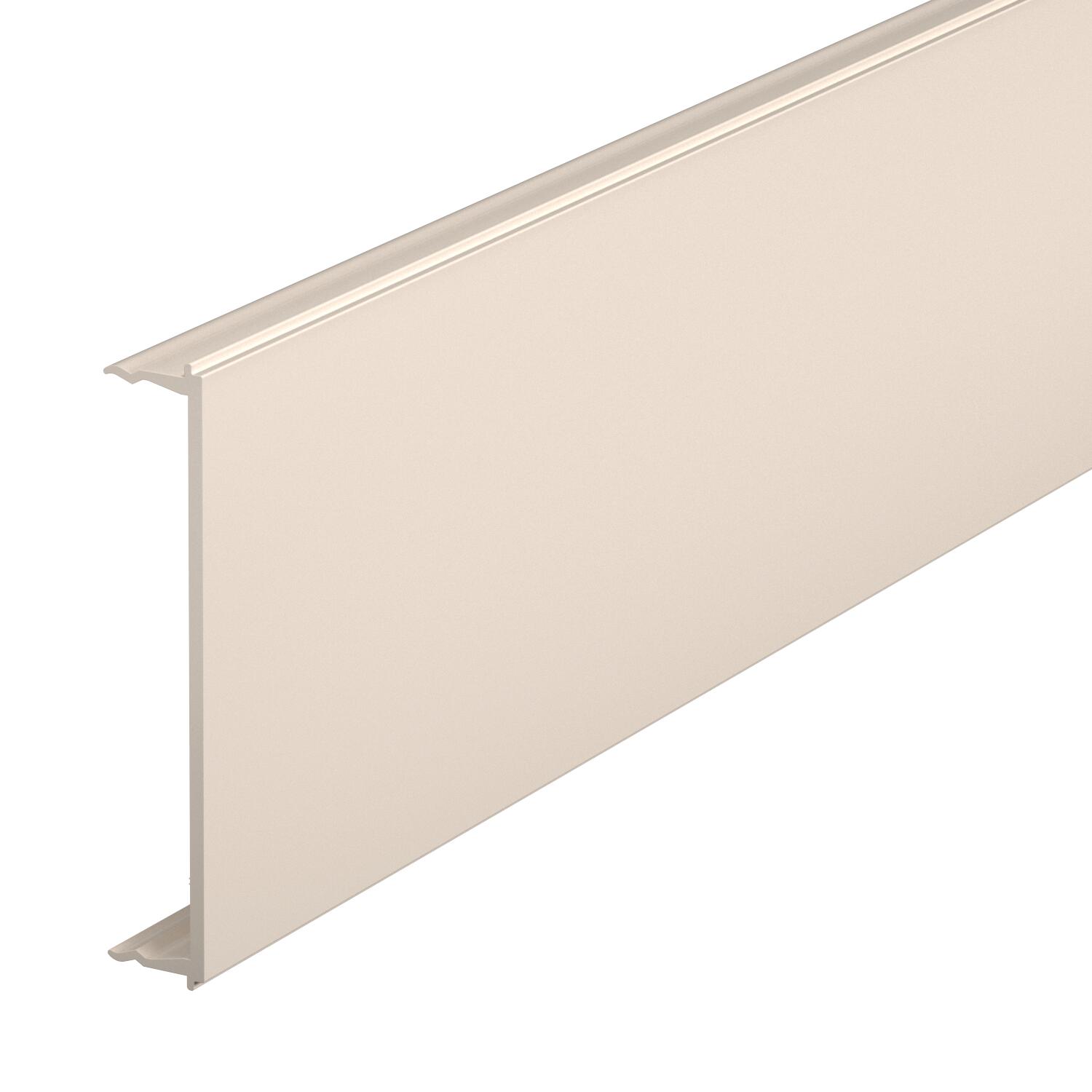

Product graphic BRK 700802 cws / 6132735, 52.65 kB, jpg

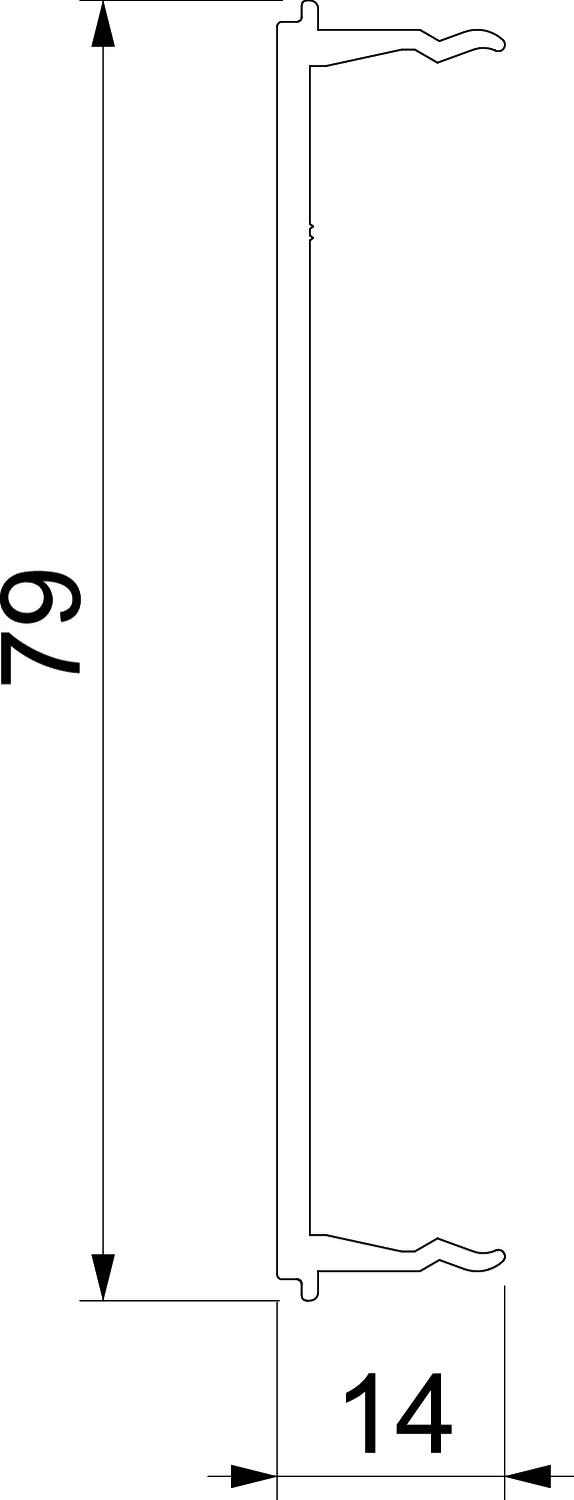

Scale drawing BRK 700802 cws / 6132735, 24.34 kB, jpg

No invitation to tender text is available for this product.
