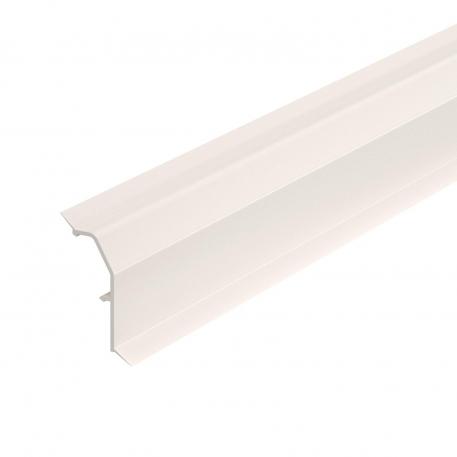

Cover SLL 2050 2000 | Cream; RAL 9001

morepic-1

morepic-2

Cover SLL 2050

Item no. 6132157 | EAN 4012196748327

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Cover for the skirting trunking.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover sealing lip	Wall/floor
Dimension	2000x20x16
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06

Dimensions

Height	20 mm
Length	2000 mm

Width	50 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SLL 2050 cws	2000 mm	Cream; RAL 9001	6132157	m	2 m
SLL 2050 rws	2000 mm	Pure white; RAL 9010	6132158	m	2 m

Downloads

Data sheet SLL 2050 cws / 6132157 , 0.23MB , pdf

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

Declaration of conformity SLL 2050 cws / 6132157 , 0.13MB , pdf

Label approval VDE symbol approval, SL skirting trunking , 0.27MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

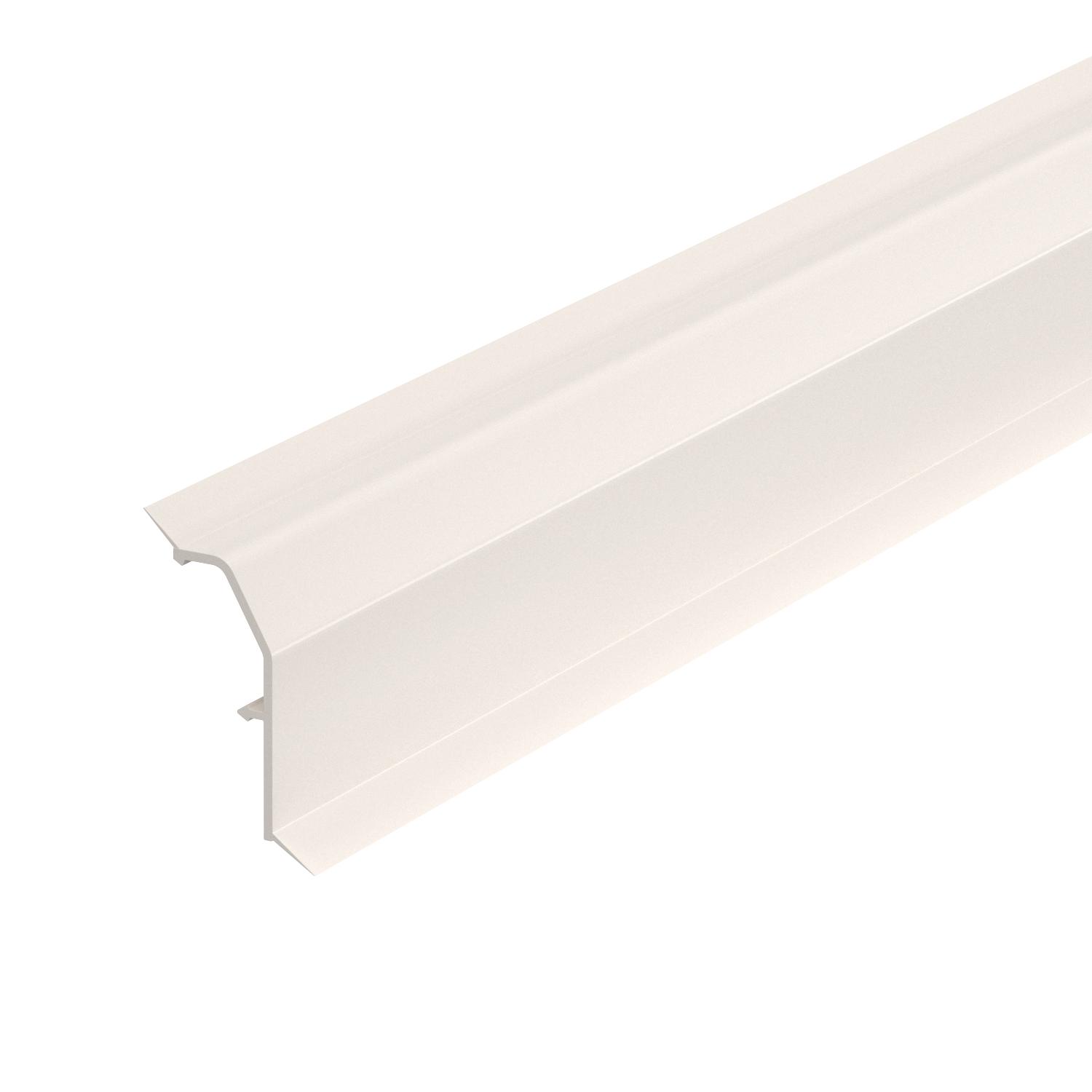

Product graphic SLL 2050 cws / 6132157, 38.52 kB, jpg

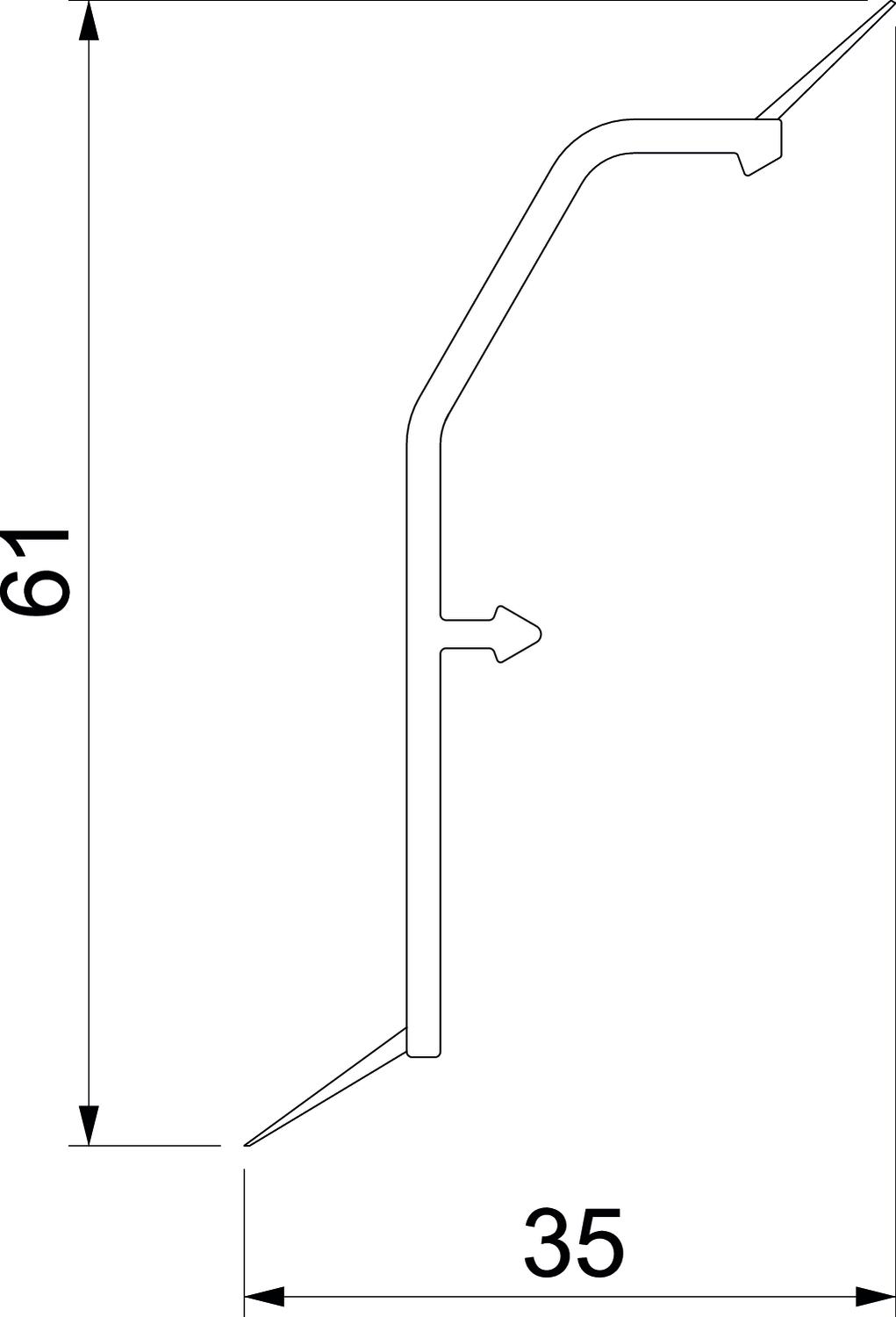

Scale drawing SLL 2050 cws / 6132157, 39.17 kB, jpg
