Cover SLL 2050 2000 | Pure white; RAL 9010

morepic-1

morepic-2

Cover SLL 2050

Item no. 6132158 | EAN 4012196748334

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Cover for the skirting trunking.

Technical data

Technical data

Colour	Pure white; RAL 9010
Cover sealing lip	Wall/floor
Dimension	2000x20x16
Height	20 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Width	50 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SLL 2050 cws	2000 mm	Cream; RAL 9001	6132157	m	96 m
SLL 2050 rws	2000 mm	Pure white; RAL 9010	6132158	m	96 m

Downloads

Data sheet SLL 2050 rws / 6132158 , 0.19MB , pdf

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

EU declaration of conformity SLL 2050 rws / 6132158 , 0.13MB , pdf

Label approval VDE symbol approval, SL skirting trunking , 0.27MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

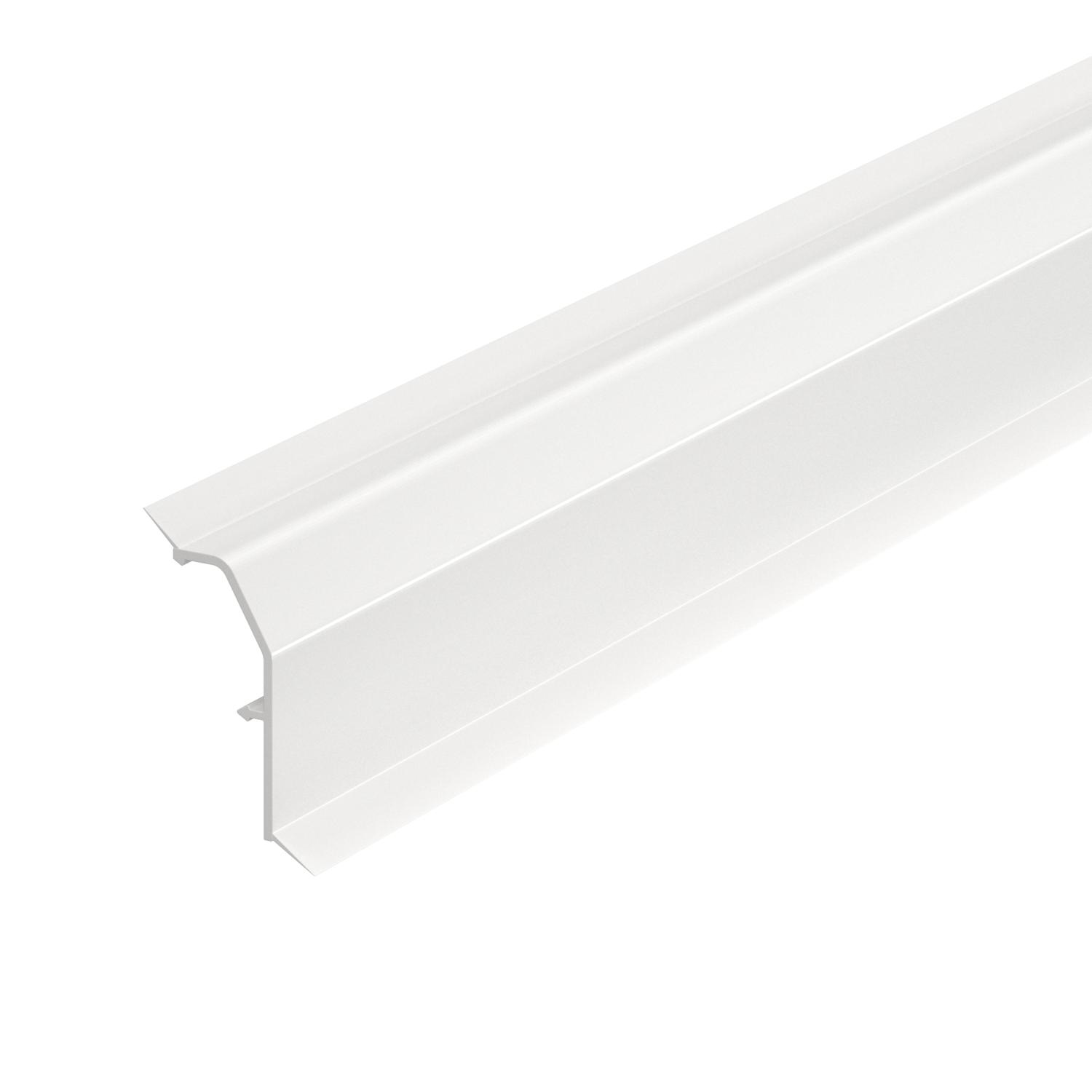

Product graphic SLL 2050 rws / 6132158, 33.13 kB, jpg

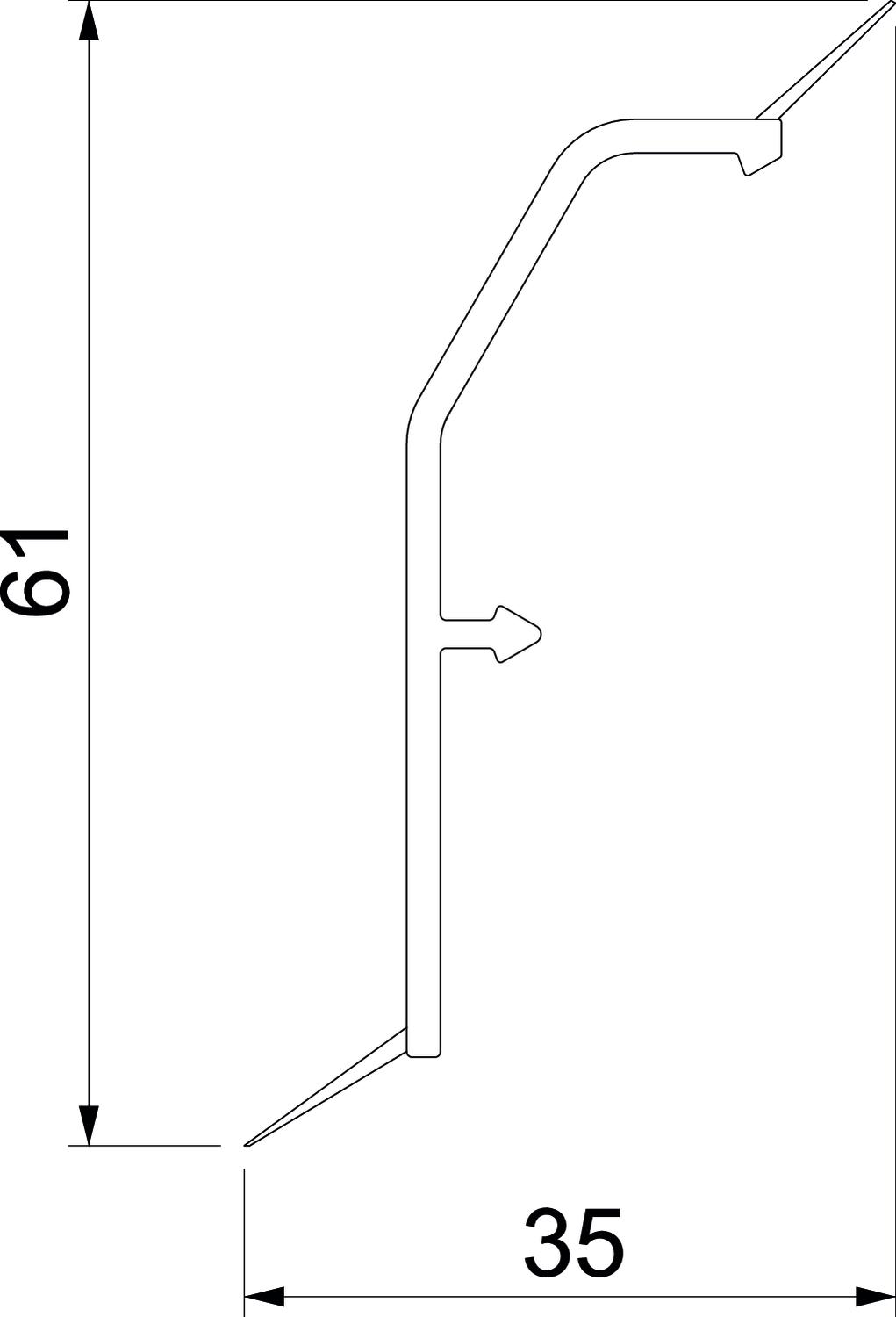

Scale drawing SLL 2050 rws / 6132158, 39.17 kB, jpg

No invitation to tender text is available for this product.
