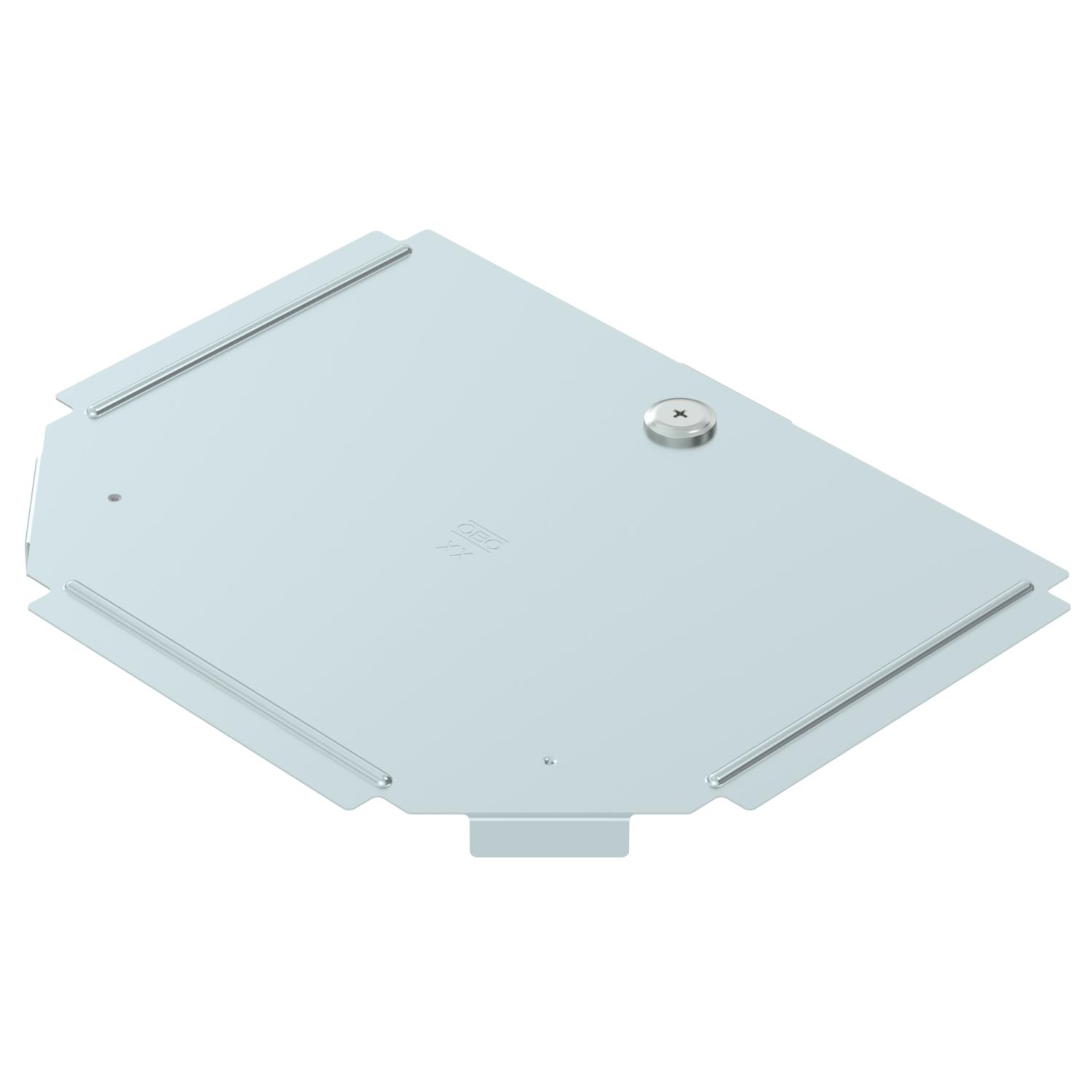

Cover, T piece DD

Item no. 6038642 | EAN 4012197408152

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for T piece fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	zinc
Dimension	B150mm
Dimension B	150 mm
Fastening type	Sash lock
Material	Steel
Material thickness	0,75 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RTD 100 DD	100 mm	0.75 mm	6038640	piece	1 piece
RTD 150 DD	150 mm	0.75 mm	6038642	piece	1 piece
RTD 200 DD	200 mm	0.75 mm	6038644	piece	1 piece
RTD 300 DD	300 mm	0.75 mm	6038646	piece	1 piece
RTD 400 DD	400 mm	1 mm	6038648	piece	1 piece
RTD 500 DD	500 mm	1 mm	6038650	piece	1 piece
RTD 600 DD	600 mm	1 mm	6038652	piece	1 piece
