- Product description
-
Product description

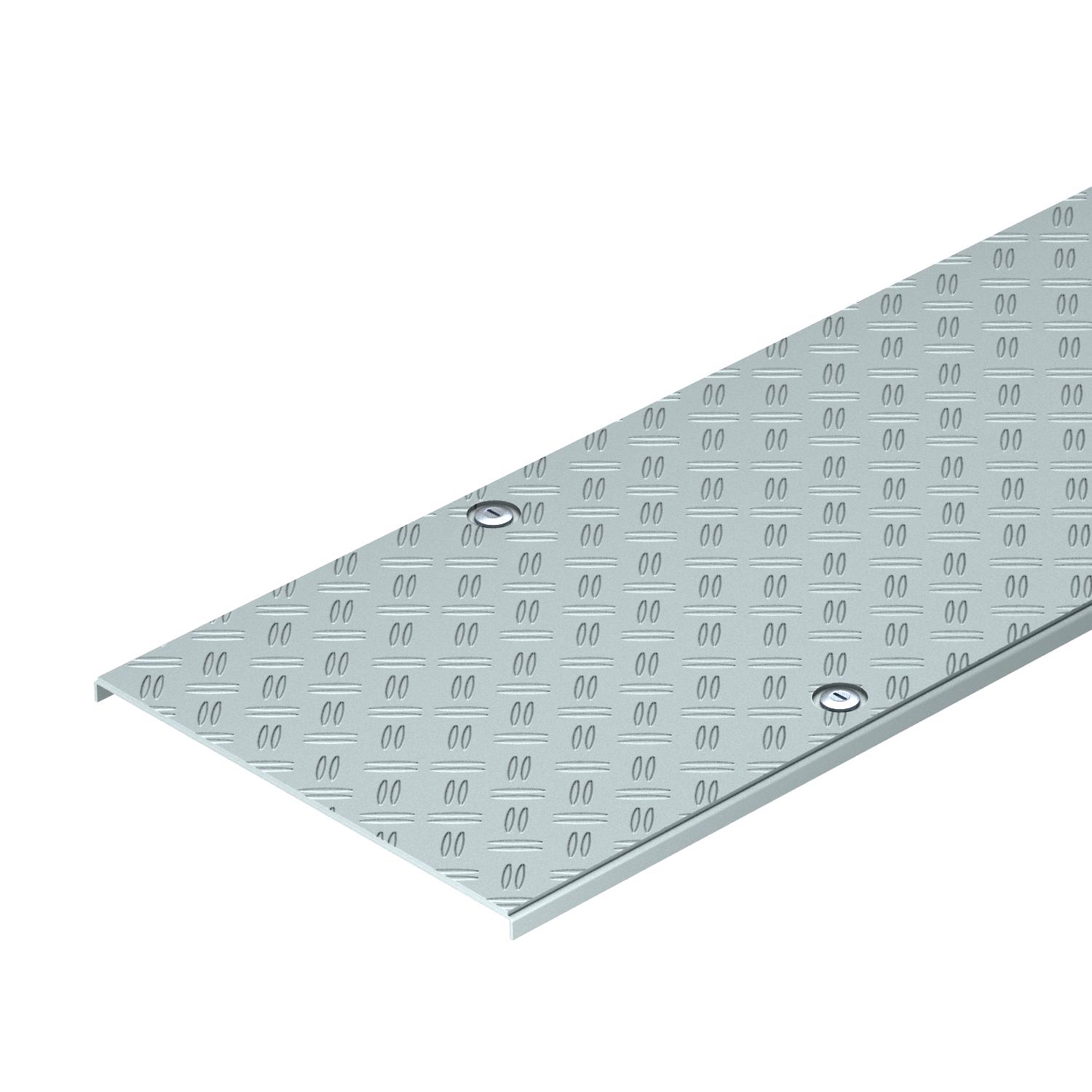

Cable tray cover for the walkable BKRS cable tray system. The basic cover is strip galvanised in a material thickness of 2 mm with additional aluminium chequer riveted on in a thickness of 4 mm, sturdy and non-slip. Turn buckle fastening with a turn buckle distance of 500 mm.
When the cover is used under wind, draught or pressure impacts, additional security measures are required.
- Technical data
-
Technical data

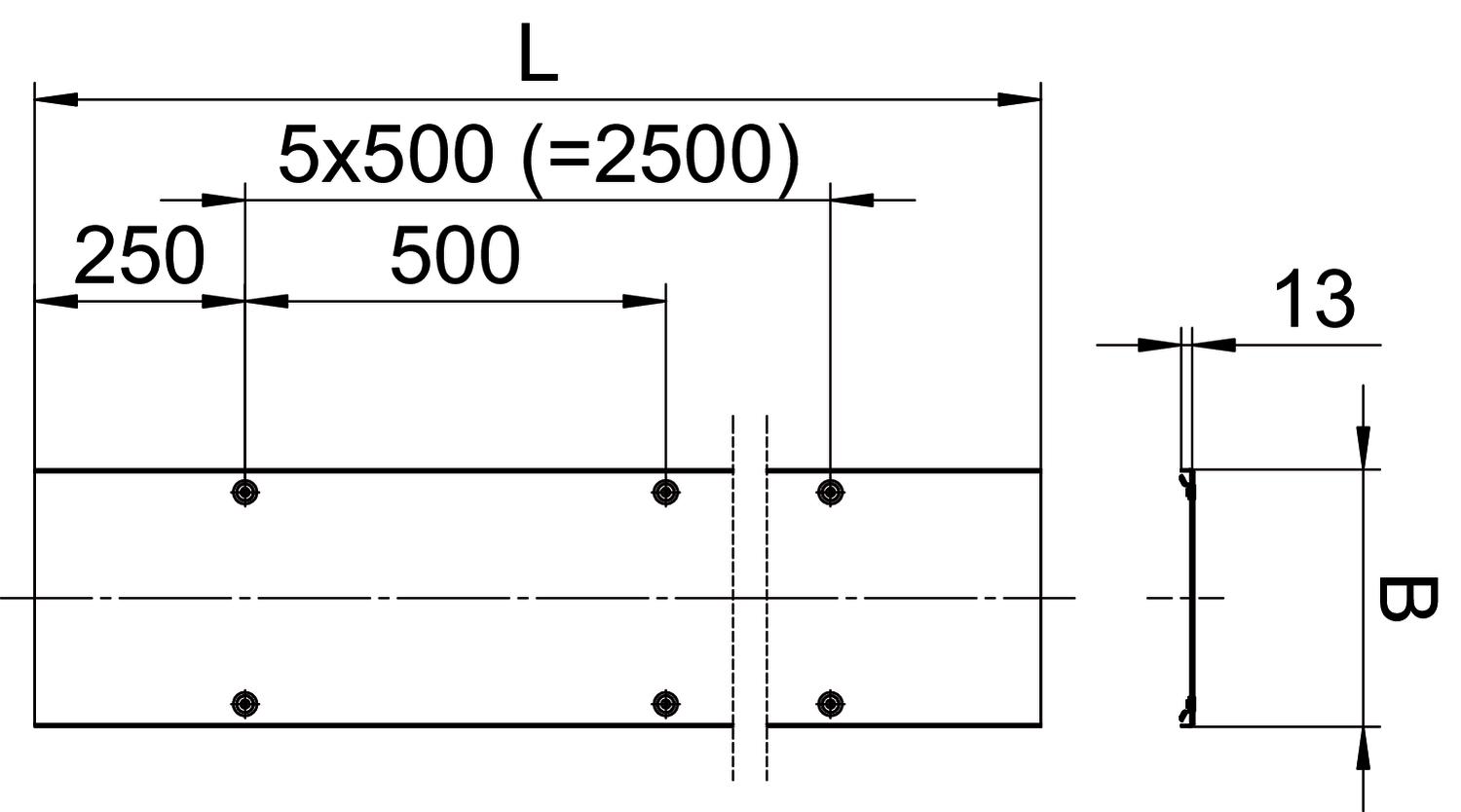

Dimension 100x3000 Dimension B 100 mm Dimension L 3000 mm Fastening type Sash lock Length 10 ft Length 3000 mm Maintain electrical functions no Material Aluminium/Steel Number of turn buckles 14 St. Plate thickness 6 mm Plate thickness 0,24 in Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Width 4 in Width 100 mm - All types
- Downloads
-
Data sheet DF BKR10 FS AL / 6049181 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DF BKR10 FS AL / 6049181 , 0.10MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
