- Product description
-

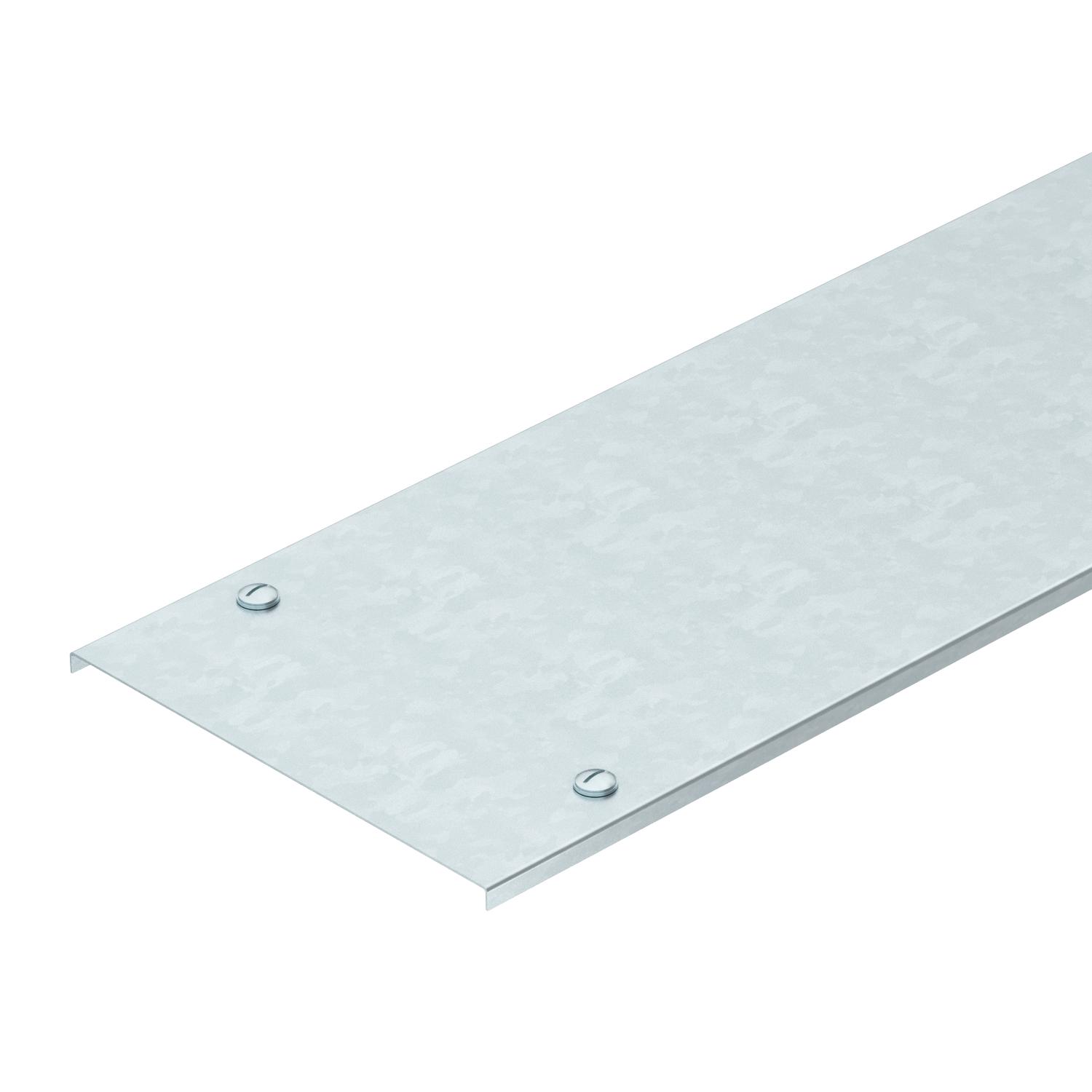

Product descriptionCover for mobile radio tray with five pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data

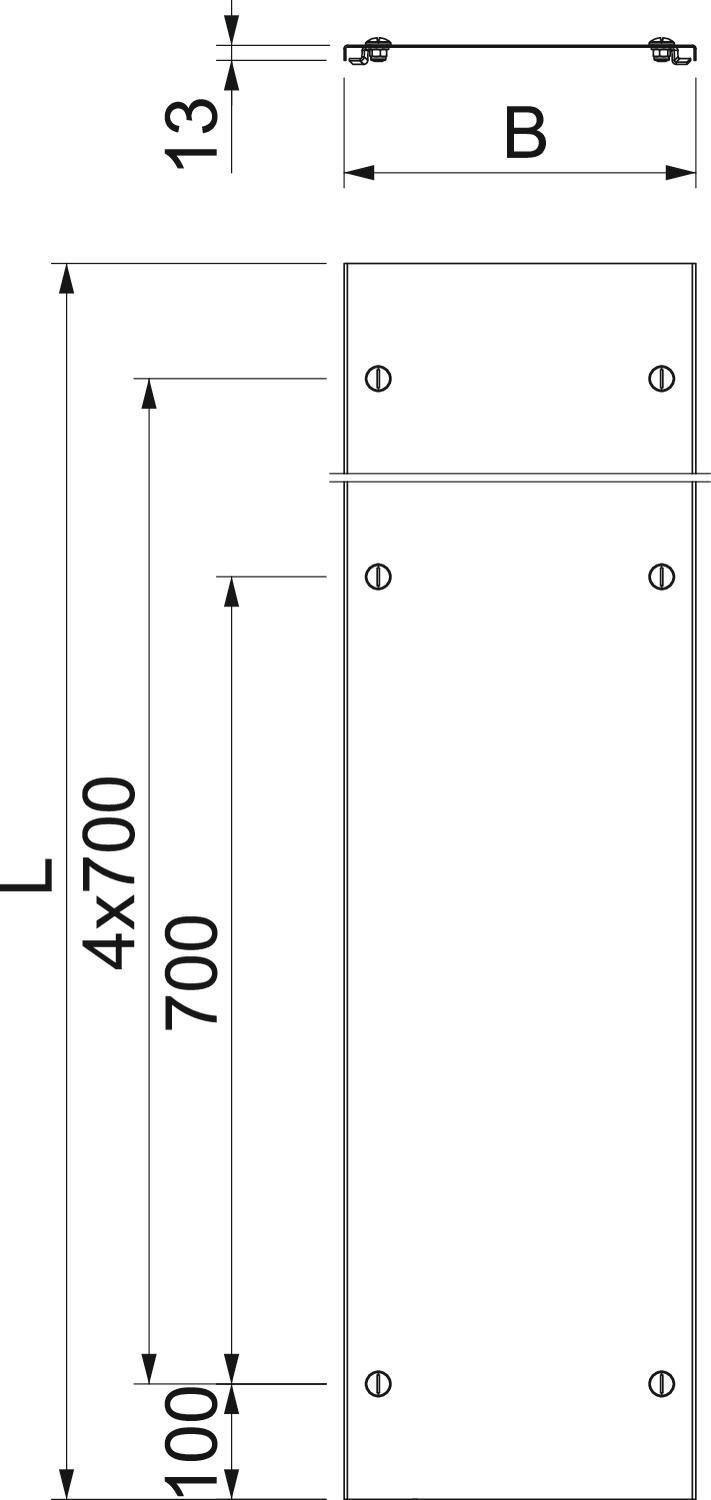

Colour zinc Dimension 200x3000 Dimension B 200 mm Dimension H 15 mm Dimension L 3000 mm Fastening type Sash lock Height 15 mm Length 118 ft Length 3000 mm Maintain electrical functions no Material Steel Number of turn buckles 10 St. Plate thickness 1 mm Plate thickness 0,06 in Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Width 200 mm Width 8 in - All types
- Downloads
-
Data sheet DMFR 200 FT / 6083150 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DMFR 200 FT / 6083150 , 0.10MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
