- Product description
-

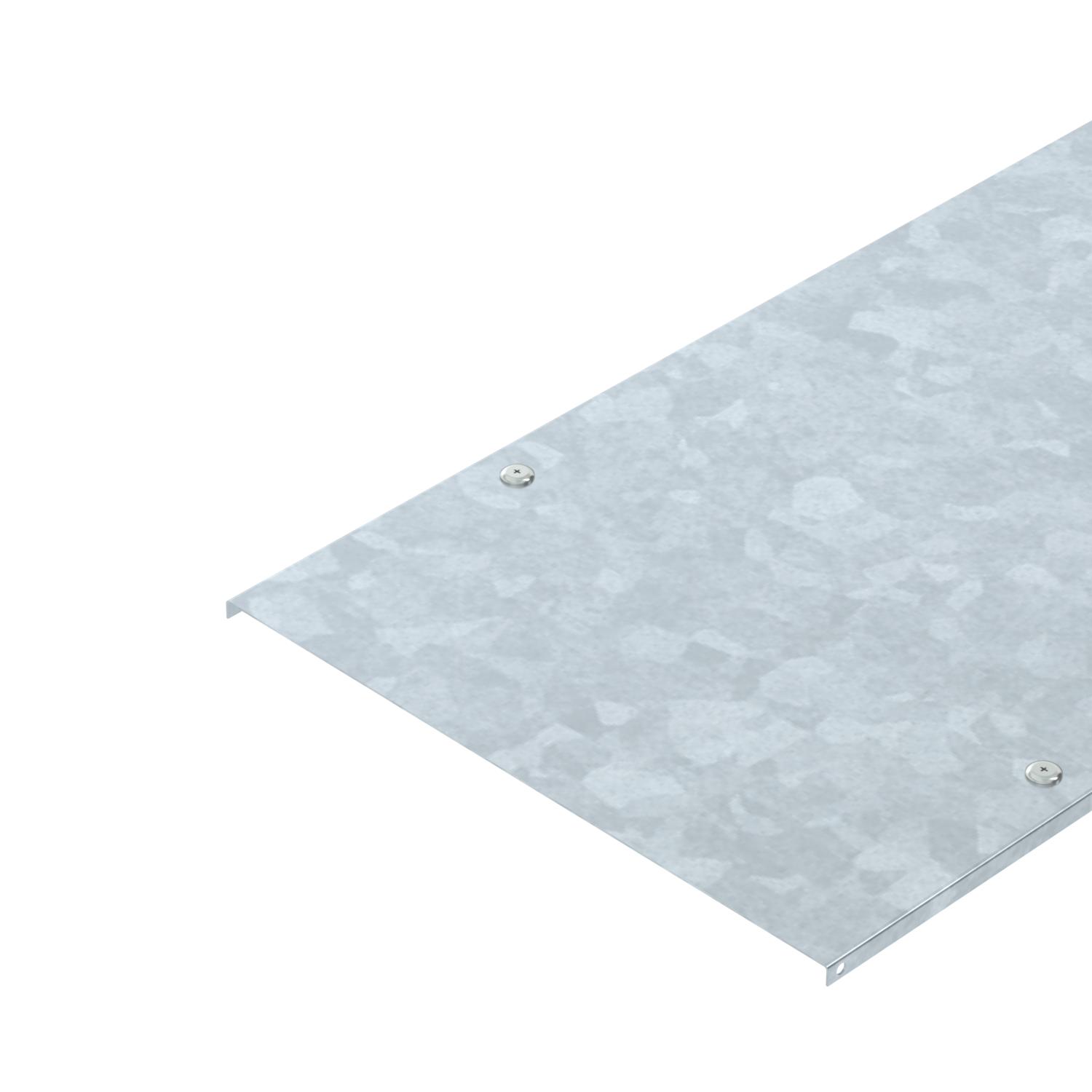

Product descriptionCover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 4,4854 kg CO₂e / 1 Meter Dimension 200x3000 Dimension B 200 mm Fastening type Sash lock Height 13 mm Length 10 ft Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 0,04 in Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Width 8 in Width 200 mm - All types
- Downloads
-
Data sheet DRL 200 FT / 6051367 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DRL 200 FT / 6051367 , 0.10MB , pdfUK Declaration of Conformity DRL 200 FT / 6051367 , 0.09MB , pdfREACH Declaration of conformity DRL 200 FT / 6051367 , 0.12MB , pdfRoHS Declaration of conformity DRL 200 FT / 6051367 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
