CP empty housing

morepic-1

morepic-2

CP empty housing

Item no. 6108037 | EAN 4012195577942

Product description

Product description

Consolidation Point empty housing for the installation of 4 Modul 45® devices, consisting of housing base and cover, a cover hood to separate data technology and heavy current, 2 support plates for the installation of 2 Modul 45® accessories each, 2 blanking plates, 2 cable glands V-TEC VM25 LGR and a protective conductor connection bracket.

Technical data

Technical data

Dimension	253x234x67
Height	67 mm
Length	253 mm

Material	Steel
Width	234 mm

All types

All types

Types		Item no.	Quantity	SSU
CP45-LG 8A		6108037	piece	7 piece

Downloads

Data sheet CP45-LG 8A / 6108037 , 0.18MB , pdf

Brochure Pluggable connection technology with Wieland gst 18 , 2.10MB , pdf

Brochure Connectable connection technology with WINSTA® MIDI , 2.10MB , pdf

Catalogue Installation systems , 28.45MB , pdf

Mounting instructions Mounting instructions, CP45/8 , 0.10MB , pdf

Download

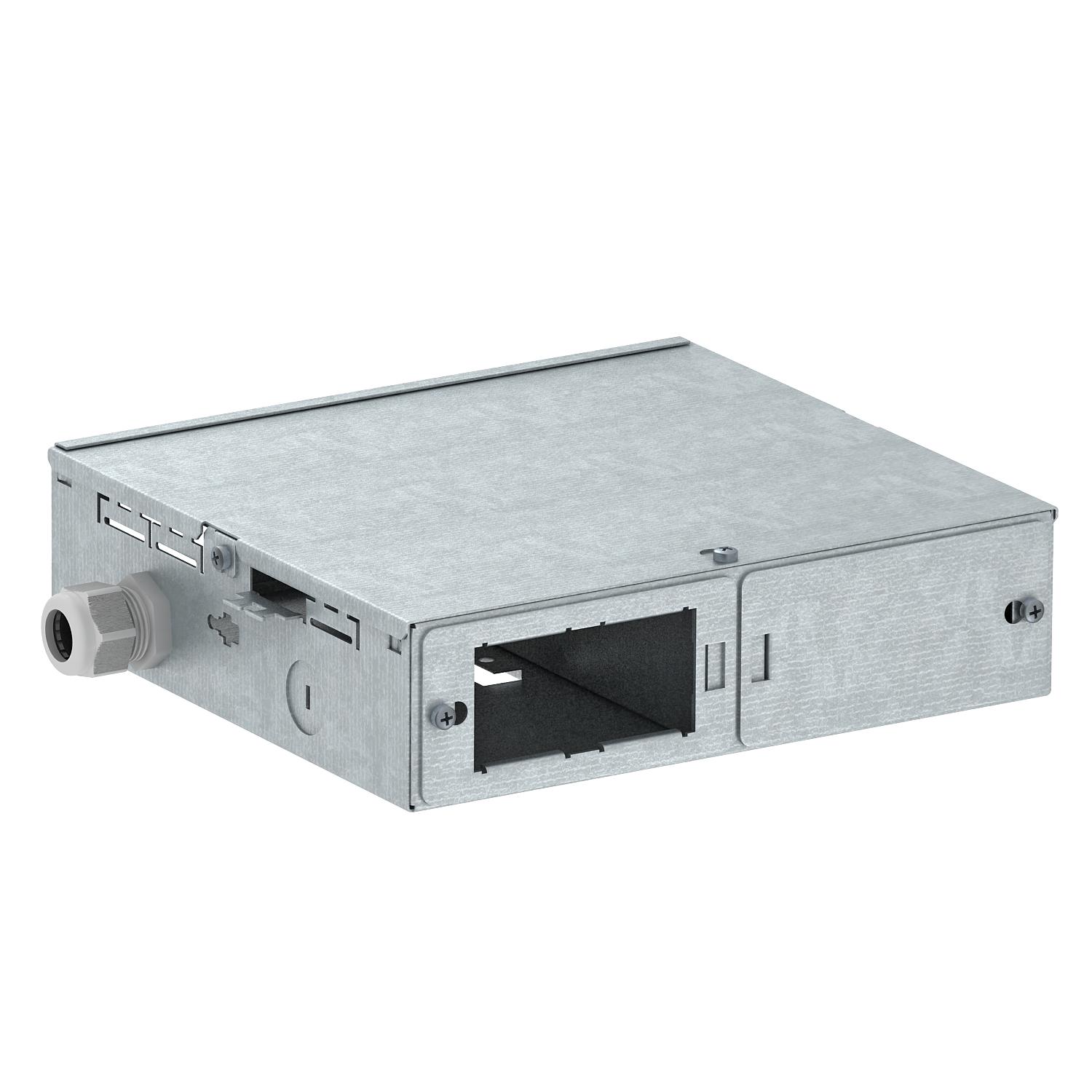

Product graphic CP45-LG 8A / 6108037, 122.31 kB, jpg

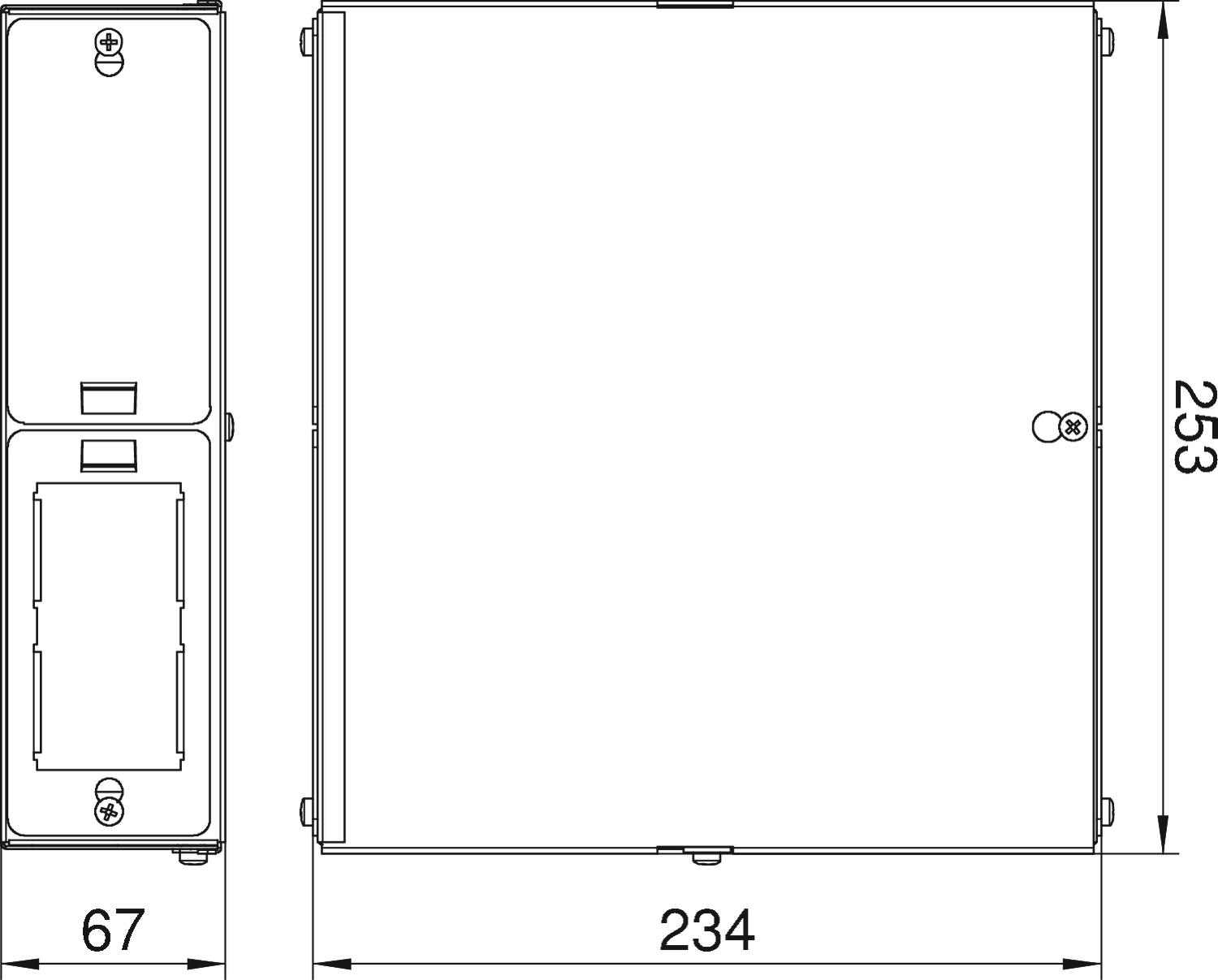

Scale drawing CP45-LG 8A / 6108037, 63.65 kB, jpg

No invitation to tender text is available for this product.

Consolidation Point Modul45.rfa, 948.00 kB
