Cross-connector flat/flat without adapter plate A4

Item no. 5314574 | EAN 4012196428137

5314574 / 256 S6 V4A
max. FL30 mm
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
  • Lightning current-tested
Technical data

Technical data

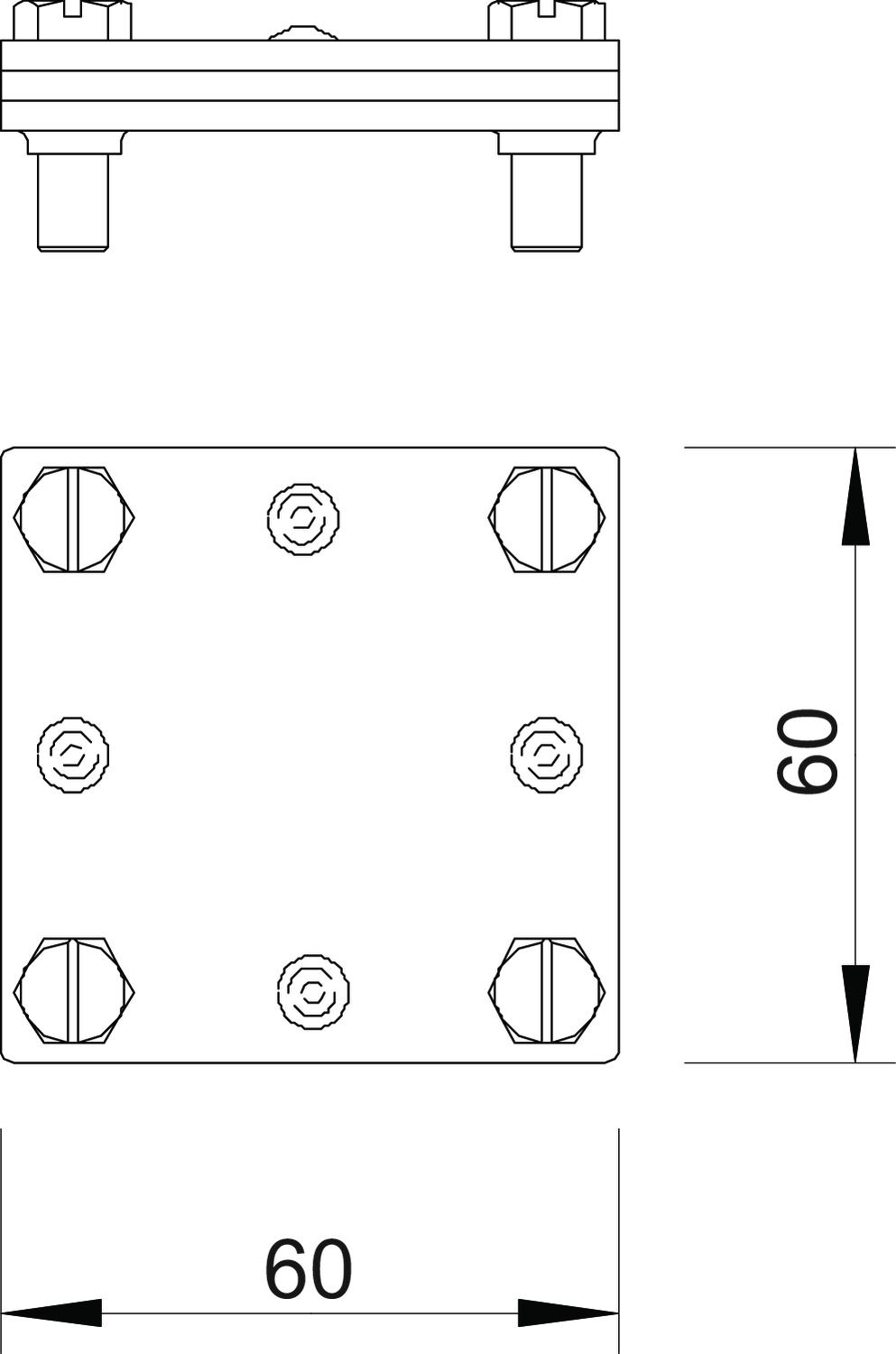

Dimension 30mm
Dimension A 60 mm
Dimension B 60 mm
Fit max. FL30 mm
Lightning current carrying capacity H/100 kA
Material Stainless steel
Suitable for connection Flat conductor Fl 30 / Fl 30
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
256 S6 V4A max. FL30 mm 5314574
3600 piece
