Cross-connector flat/flat without adapter plate FT

Item no. 5314572 | EAN 4012196428120

5314572 / 256 S6 FT
max. FL30 mm
Hot-dip galvanised
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)

• Fit: Max. FL 30 x FL 30 or max. FL 40 x FL 40

• Without adapter plate

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
  • Lightning current-tested
Technical data

Technical data

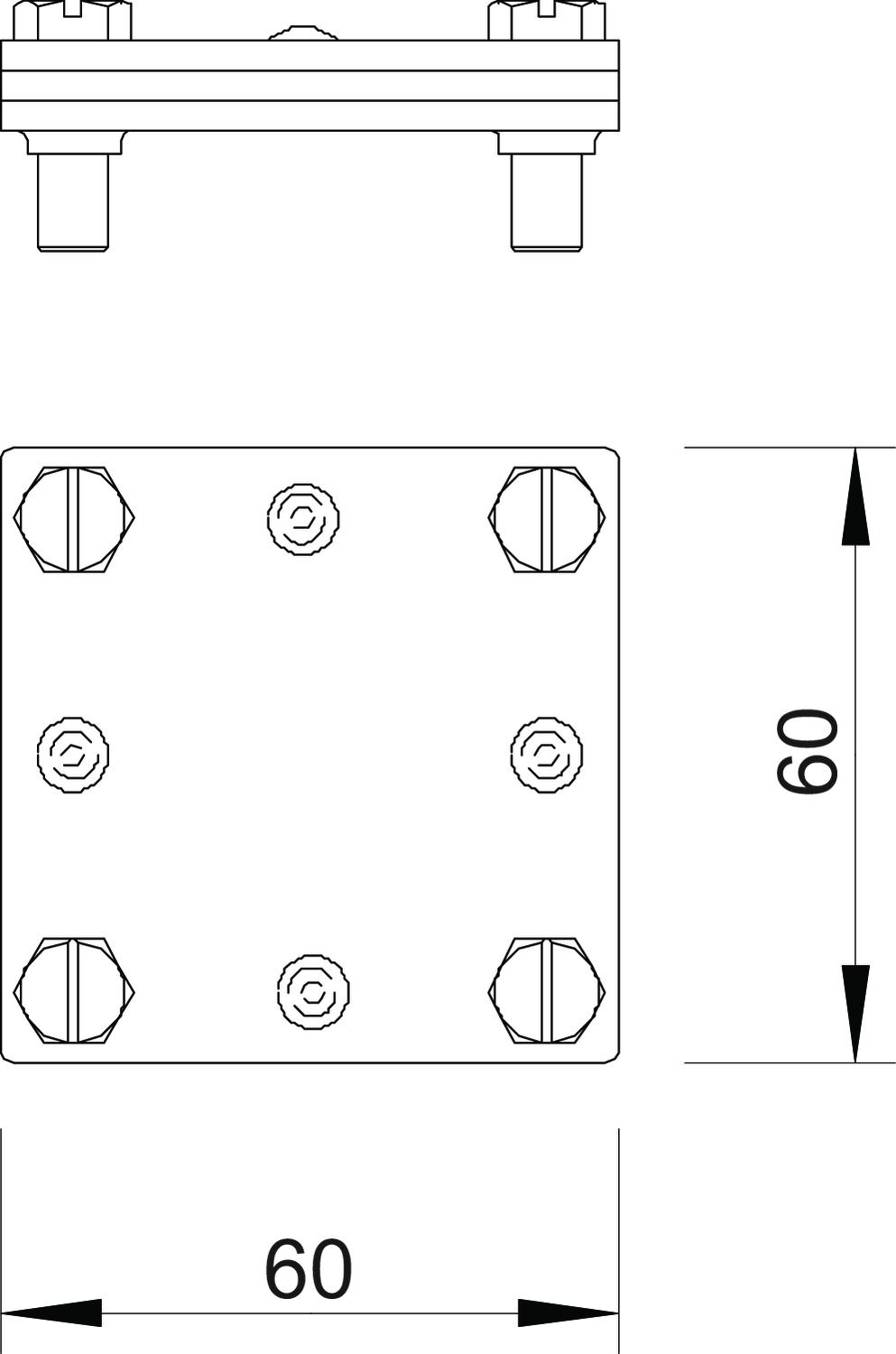

Dimension 30mm
Dimension A 60 mm
Dimension B 60 mm
Fit max. FL30 mm
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Flat conductor Fl 30 / Fl 30
Surface Hot-dip galvanised
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Surface Item no. Quantity SSU
256 S6 FT max. FL30 mm Hot-dip galvanised 5314572
3600 piece
