Cross-connector for flat conductor max. FL30 | Hot-dip galvanised
morepic-1 morepic-2 video-1

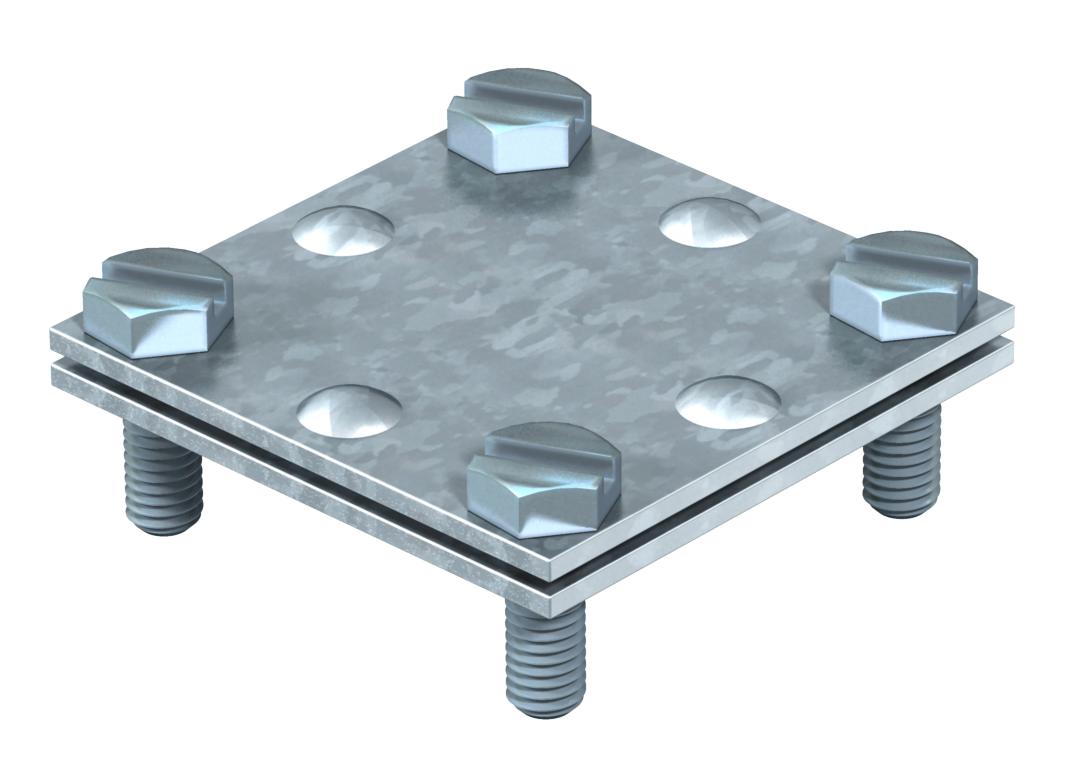

Cross-connector for flat conductor

Item no. 5314534 | EAN 4012195419235

5314534 / 255 A-FL30 FT
max. FL30 mm
Hot-dip galvanised
Product description
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)

• Fit: Max FL 30 x FL 30

• Without adapter plate

• Mounted with 4 hexagonal bolts M6 x 20 (F)
  • Lightning current-tested
Technical data

Technical data

Dimension 30mm
Dimension A 52 mm
Dimension B 52 mm
Fit max. FL30 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Flat conductor Fl 30 / Fl 30
Surface Hot-dip galvanised
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Surface Item no. Quantity SSU
255 A-FL30 FT max. FL30 mm Hot-dip galvanised 5314534
20 piece
