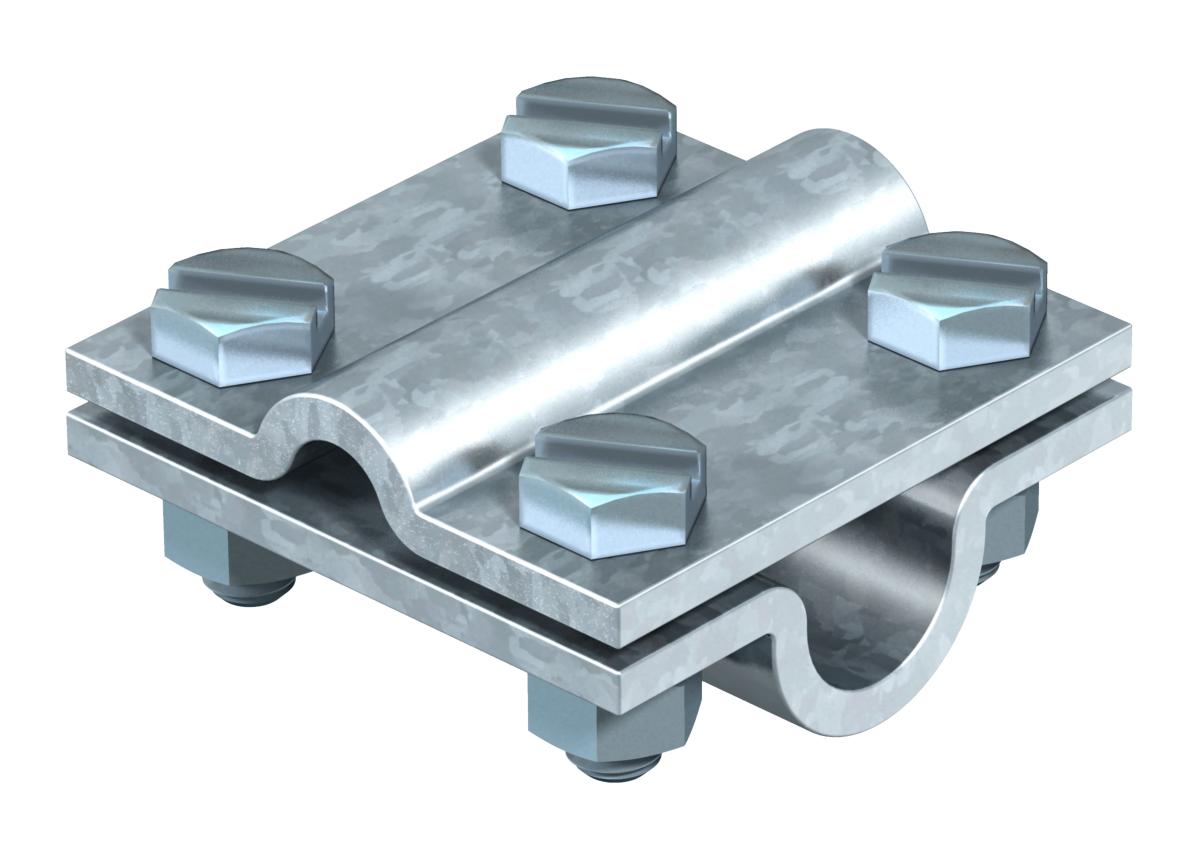

Cross-connector for Rd 8−10 x Rd 16

Item no. 5312809 | EAN 4012195418573

5312809 / 253 10X16
Rd 8-10 x 16 mm
Hot-dip galvanised
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

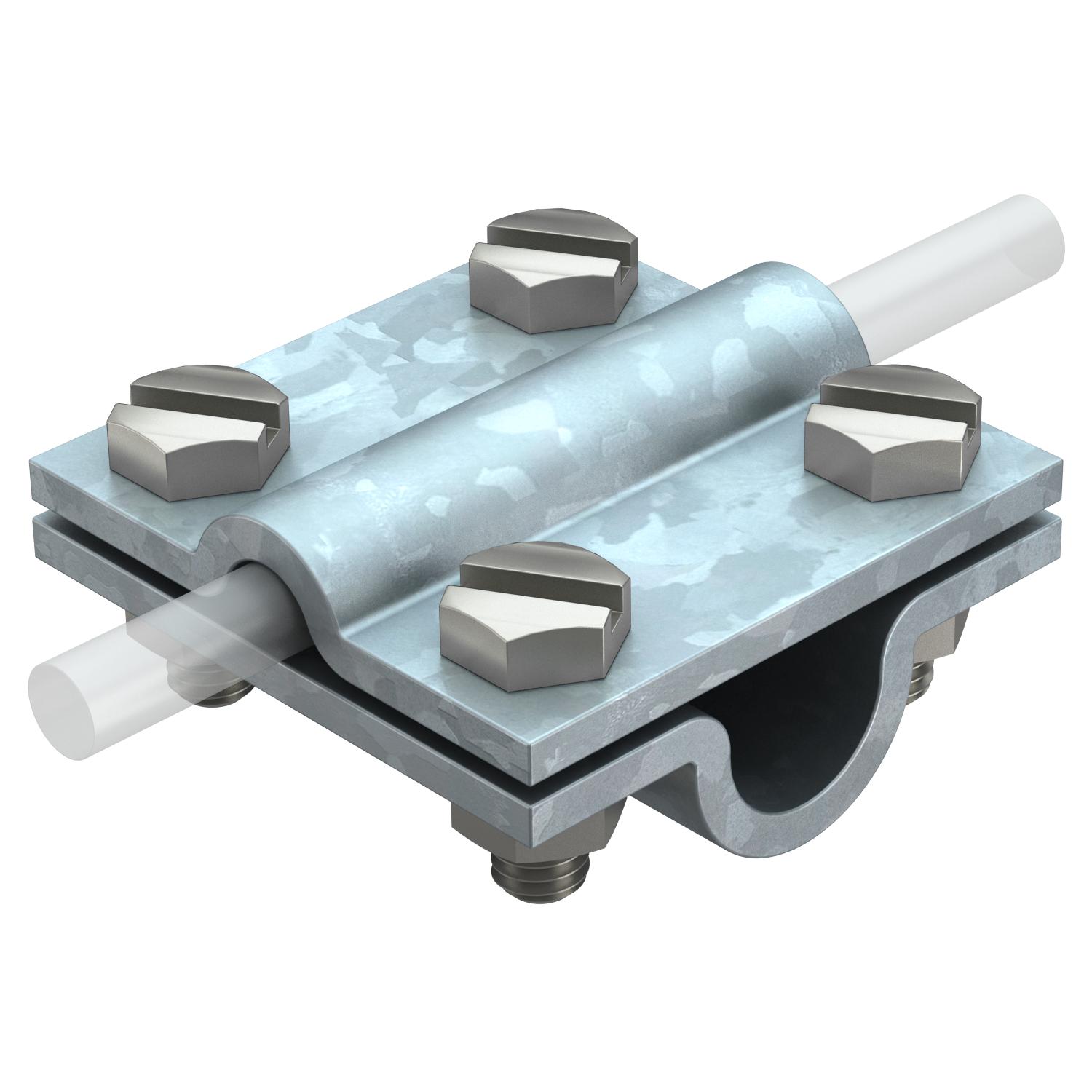

• Fit: Rd 8-10 x Rd 16 / FL 30

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm

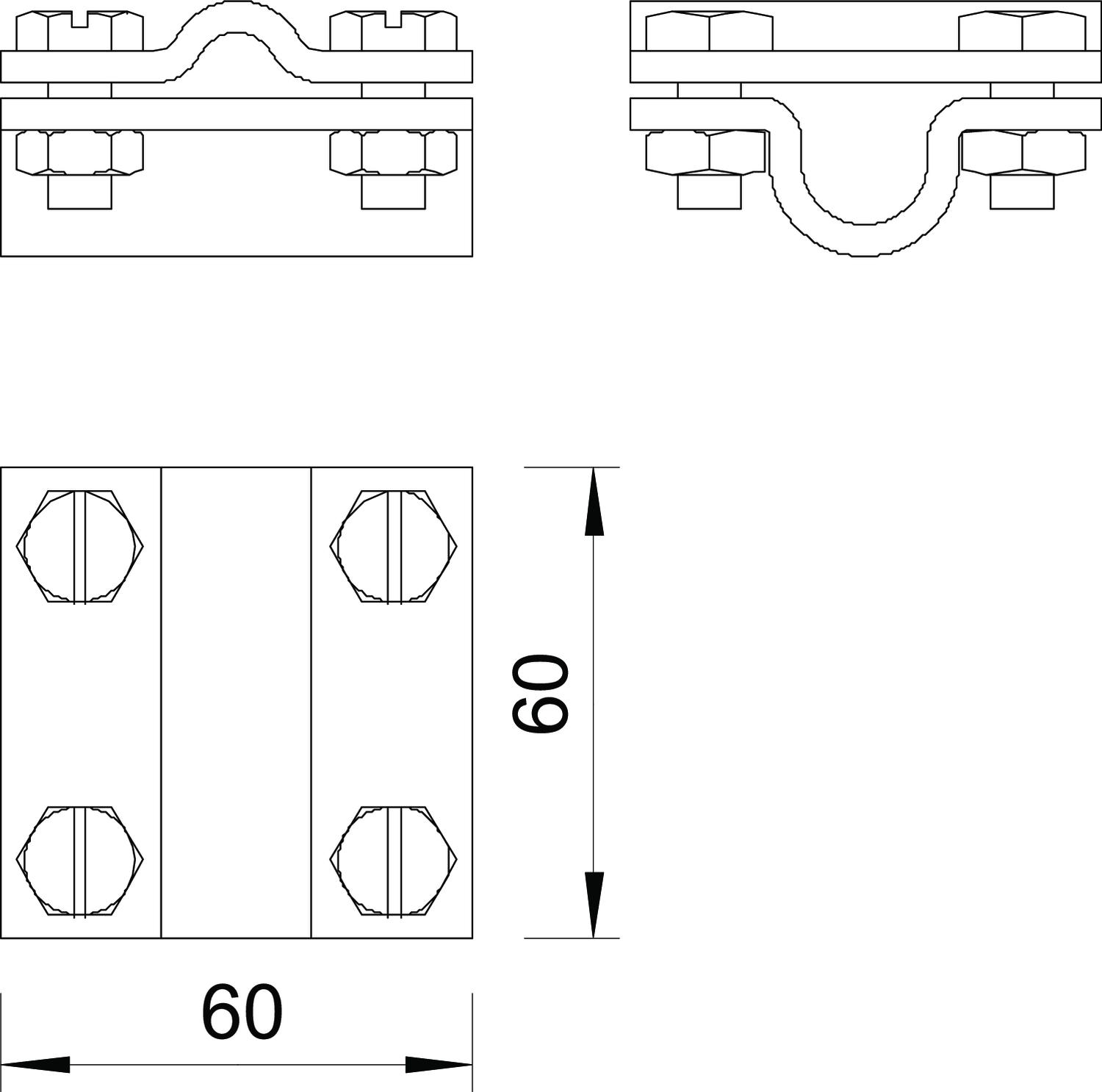

Dimension A 60 mm
Dimension B 60 mm
Fit Rd 8-10 x 16 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Round conductor Rd 8-10 / Rd 16
Surface Hot-dip galvanised
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Surface Item no. Quantity SSU
253 10X16 Rd 8-10 x 16 mm Hot-dip galvanised 5312809
25 piece
