- Product description
-

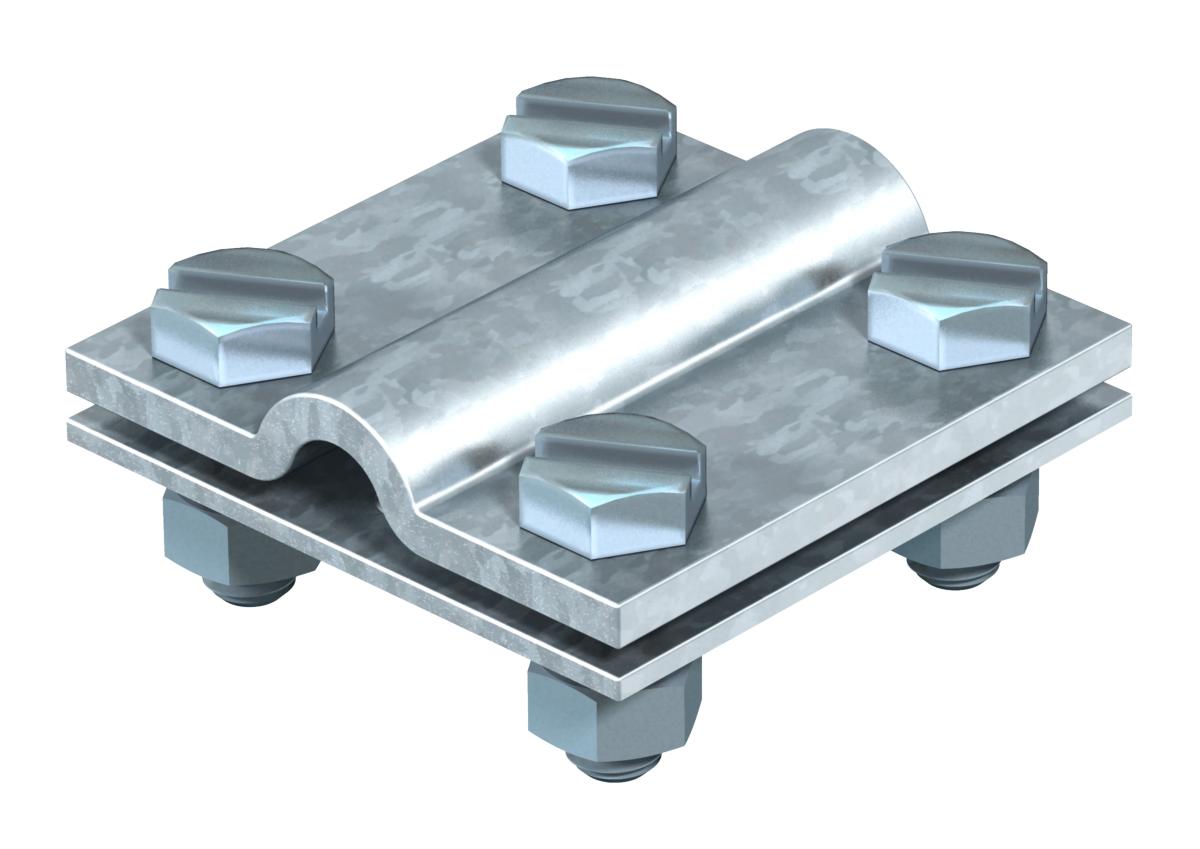

Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
- Technical data
-
Technical data
Dimension 8-10mm Dimension A 60 mm Dimension B 60 mm Fit Rd 8-10/FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 252 8-10XFL30 FT / 5312655 , 0.22MB , pdfREACH Declaration of conformity 252 8-10XFL30 FT / 5312655 , 0.27MB , pdfRoHS Declaration of conformity 252 8-10XFL30 FT / 5312655 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
