- Product description
-

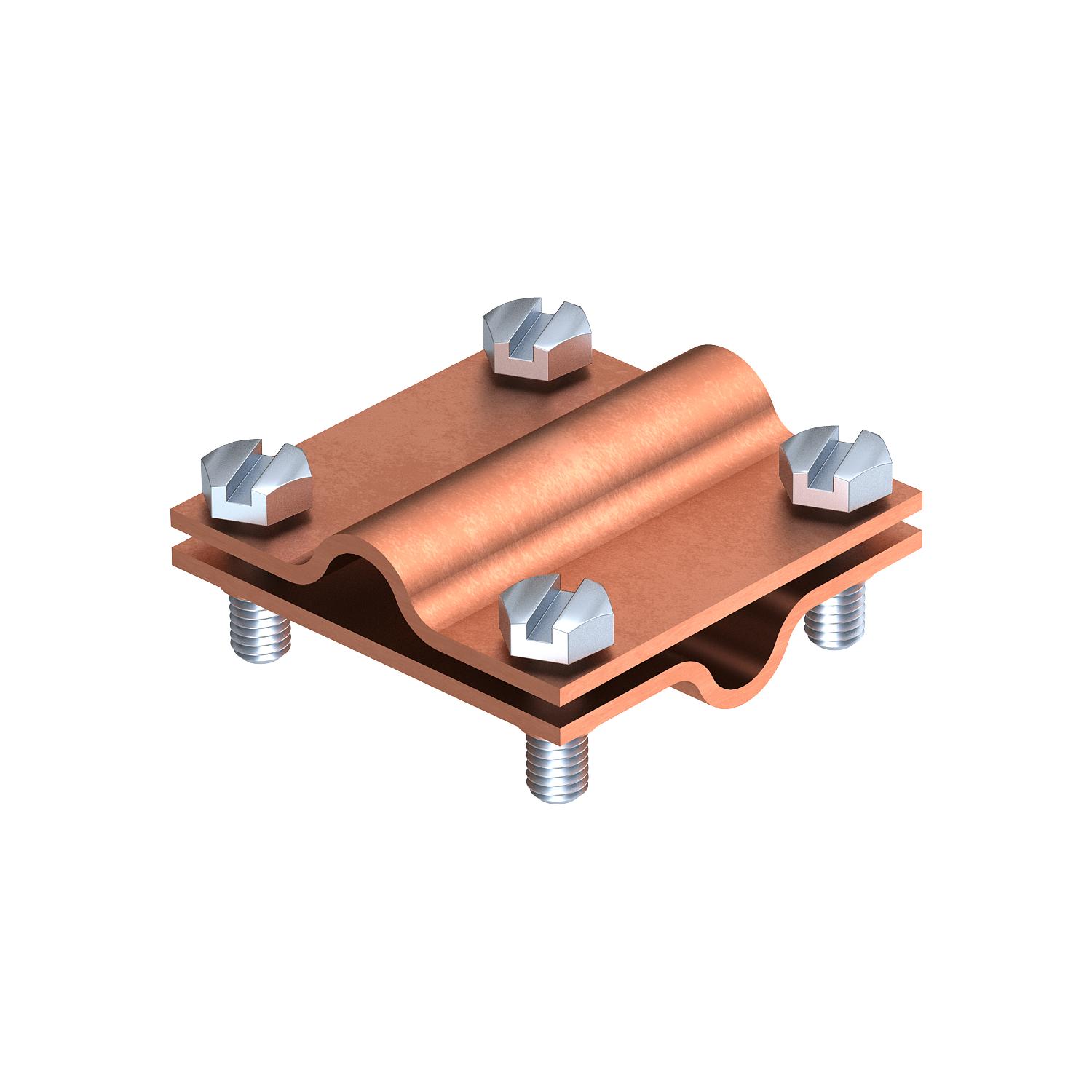

Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10
• With 4 hexagonal bolts M6 x 16, made of rust-proof steel (VA)
- Technical data
-
Technical data
Dimension 8-10mm Dimension A 52 mm Dimension B 52 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Copper Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 251 CU / 5312132 , 0.17MB , pdfEU declaration of conformity 251 CU / 5312132 , 0.06MB , pdfREACH Declaration of conformity 251 CU / 5312132 , 0.12MB , pdfRoHS Declaration of conformity 251 CU / 5312132 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
