- Product description
-

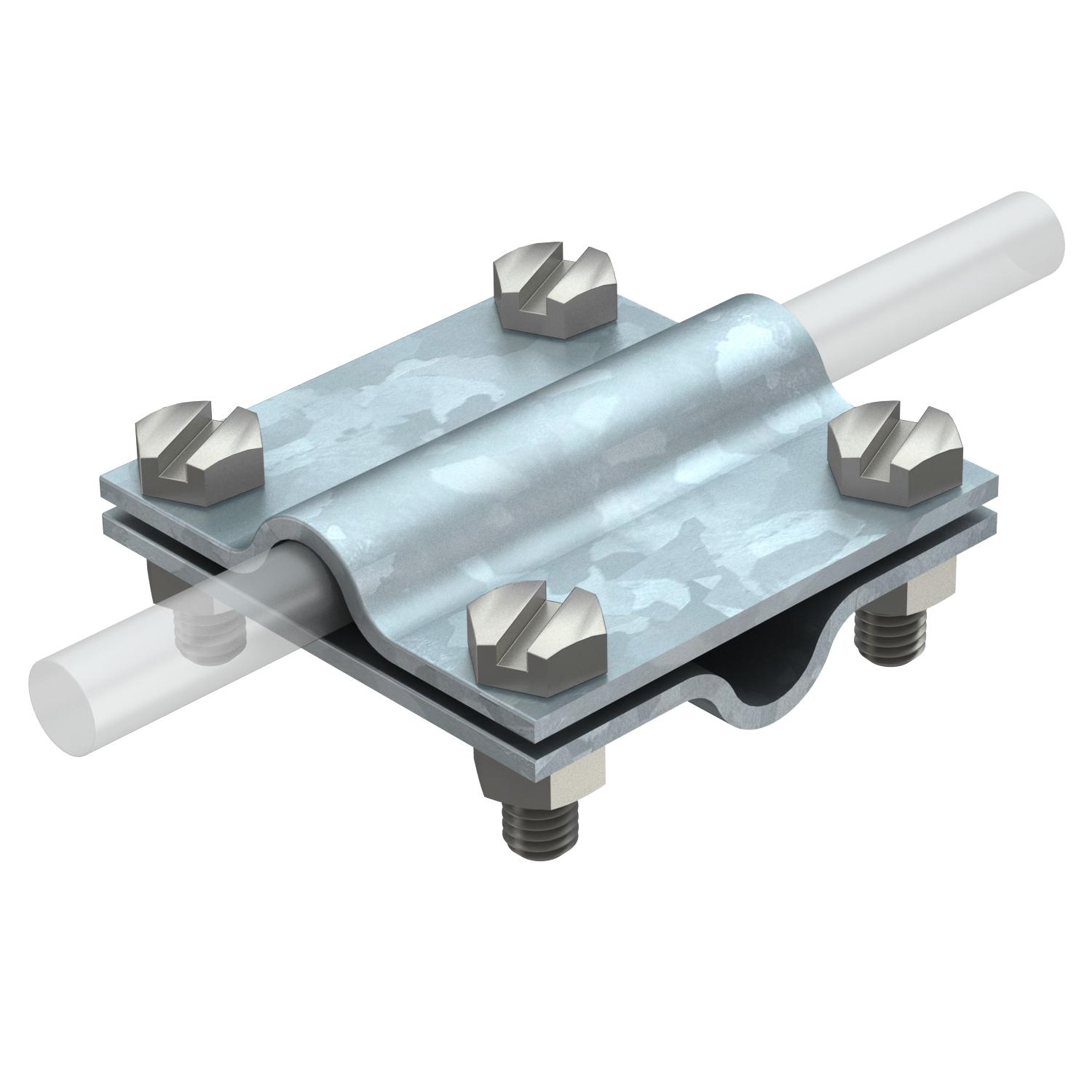

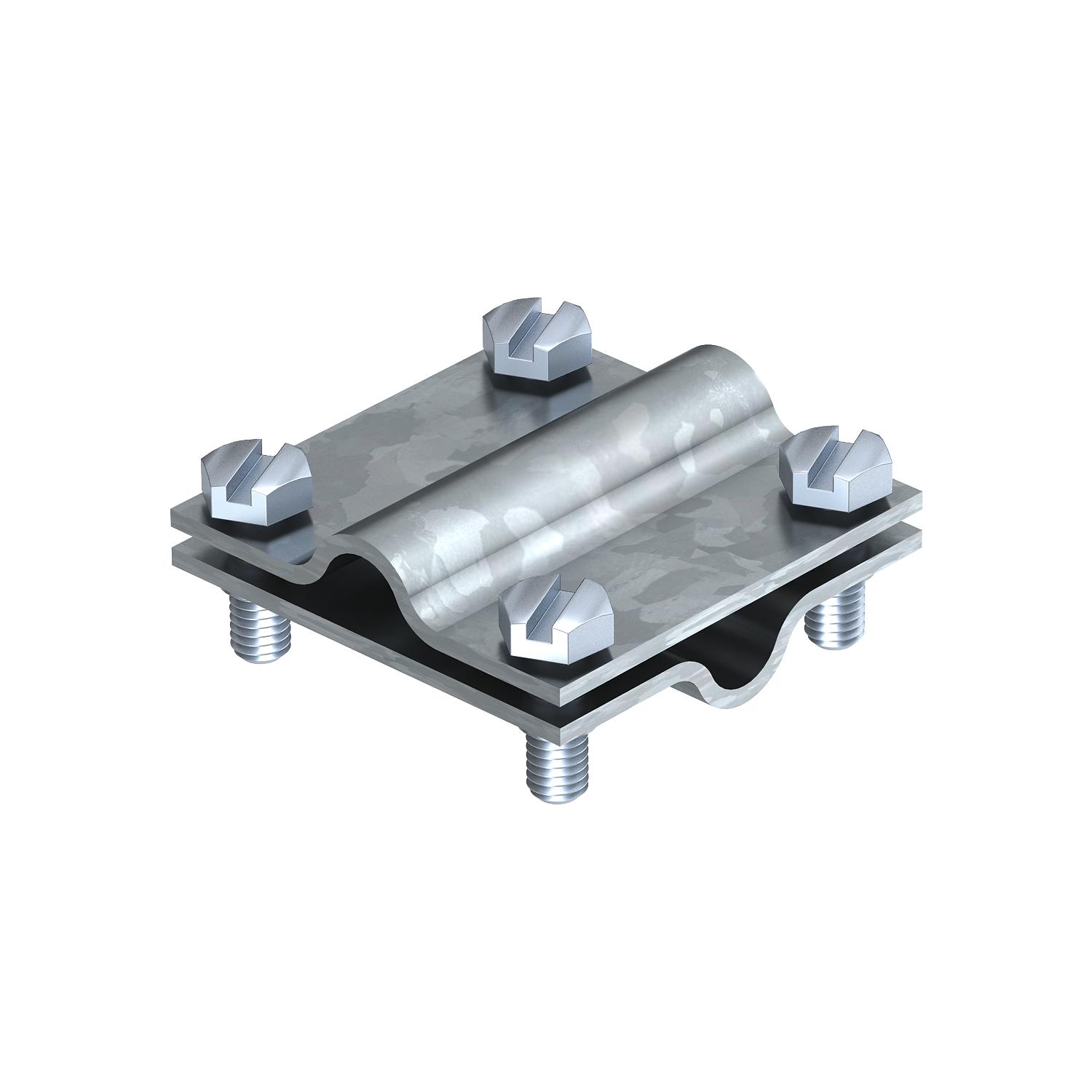

Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• For round conductors, fit: Rd 8-10 x Rd 8-10
• With 4 hexagonal bolts M6 x 16 (VA)
- Technical data
-
Technical data

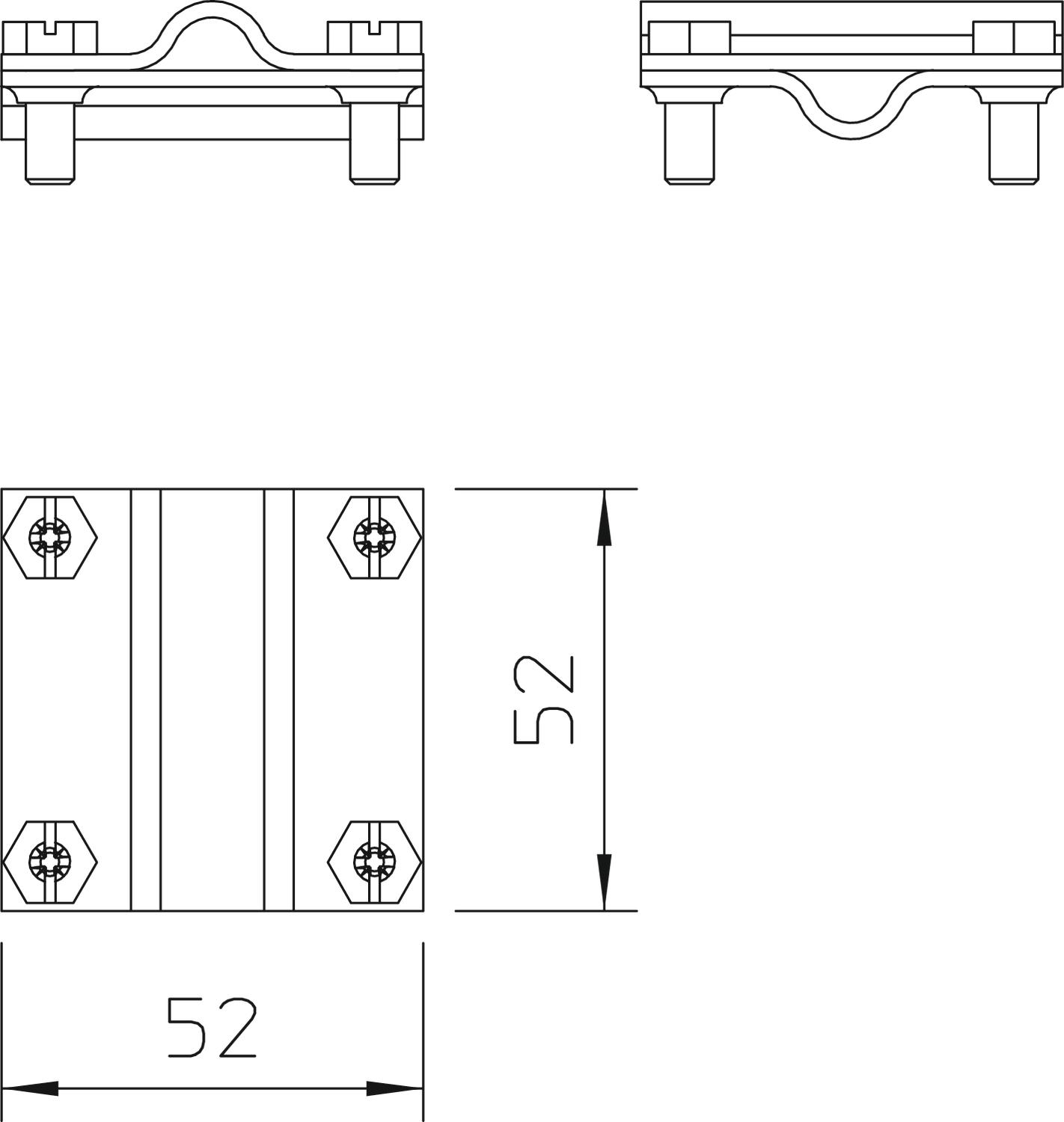

Dimension 8-10mm Dimension A 52 mm Dimension B 52 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 251 8-10 / 5312035 , 0.18MB , pdfDeclaration of conformity 251 8-10 / 5312035 , 0.06MB , pdfREACH Declaration of conformity 251 8-10 / 5312035 , 0.27MB , pdfRoHS Declaration of conformity 251 8-10 / 5312035 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
