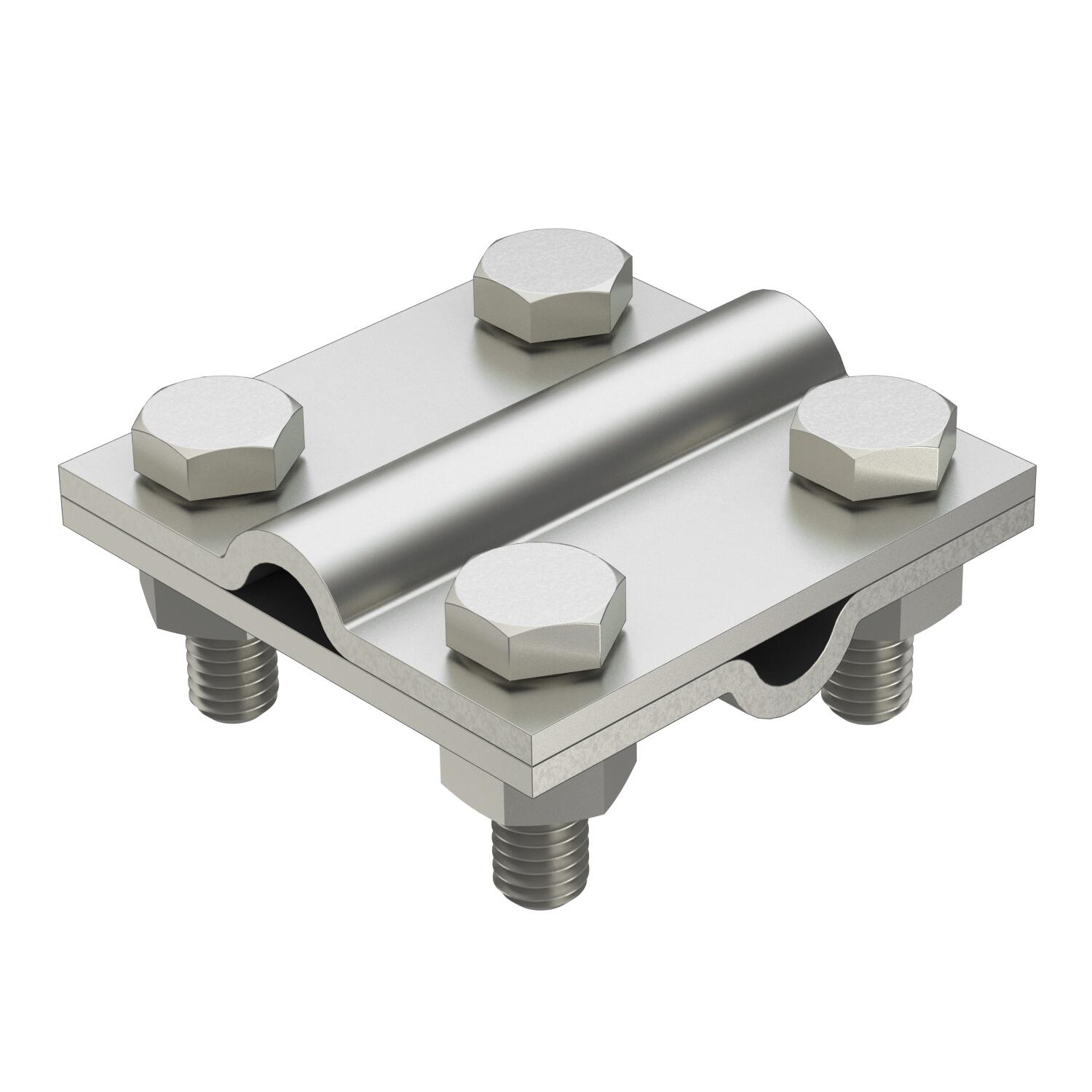

Cross-connector round/round without intermediate plate A4
Item no. 5312594 | EAN 4012196428090
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8–10 x Rd 8–10
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 253 S3 V4A / 5312594 , 0.19MB , pdfEU declaration of conformity 253 S3 V4A / 5312594 , 0.06MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
