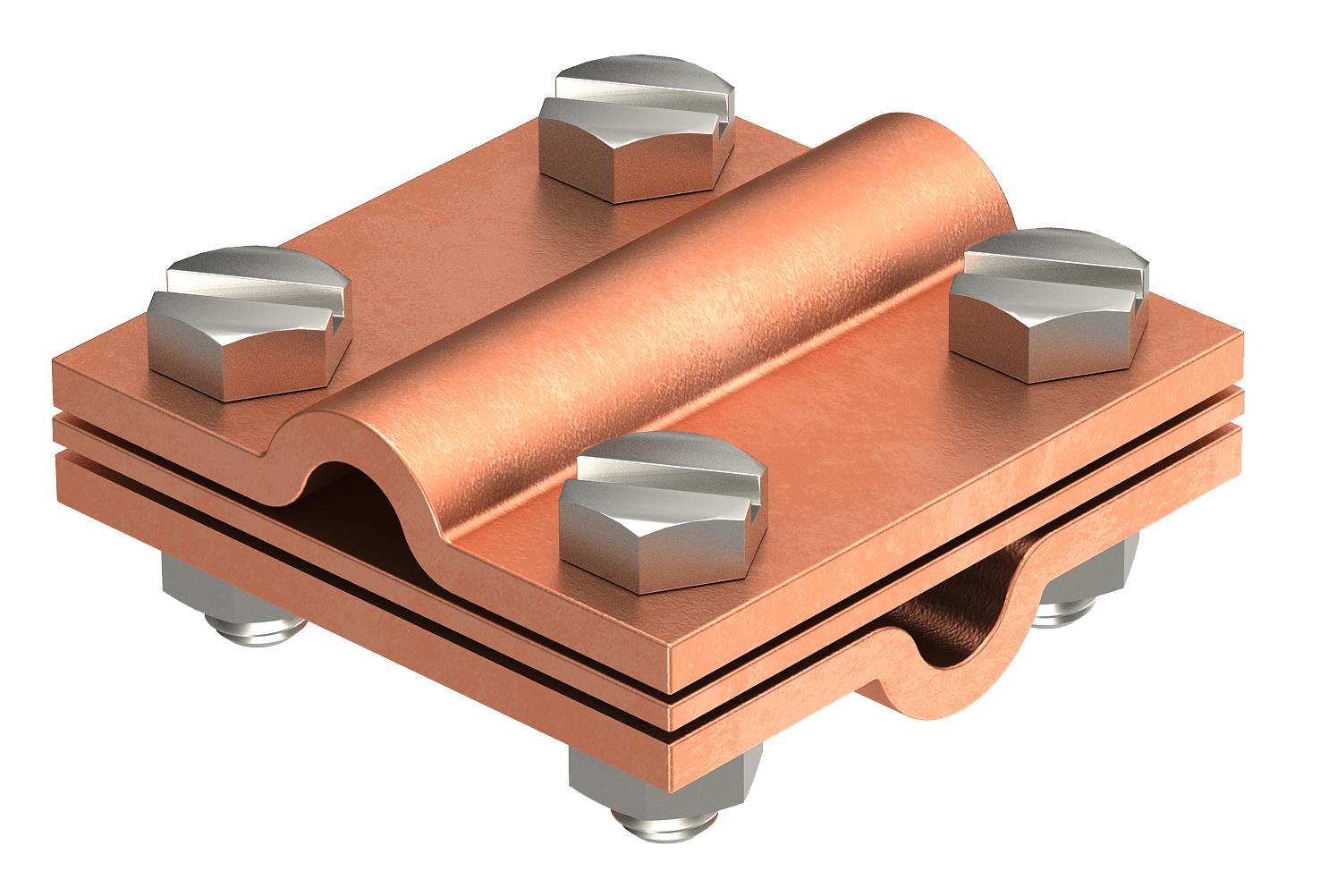

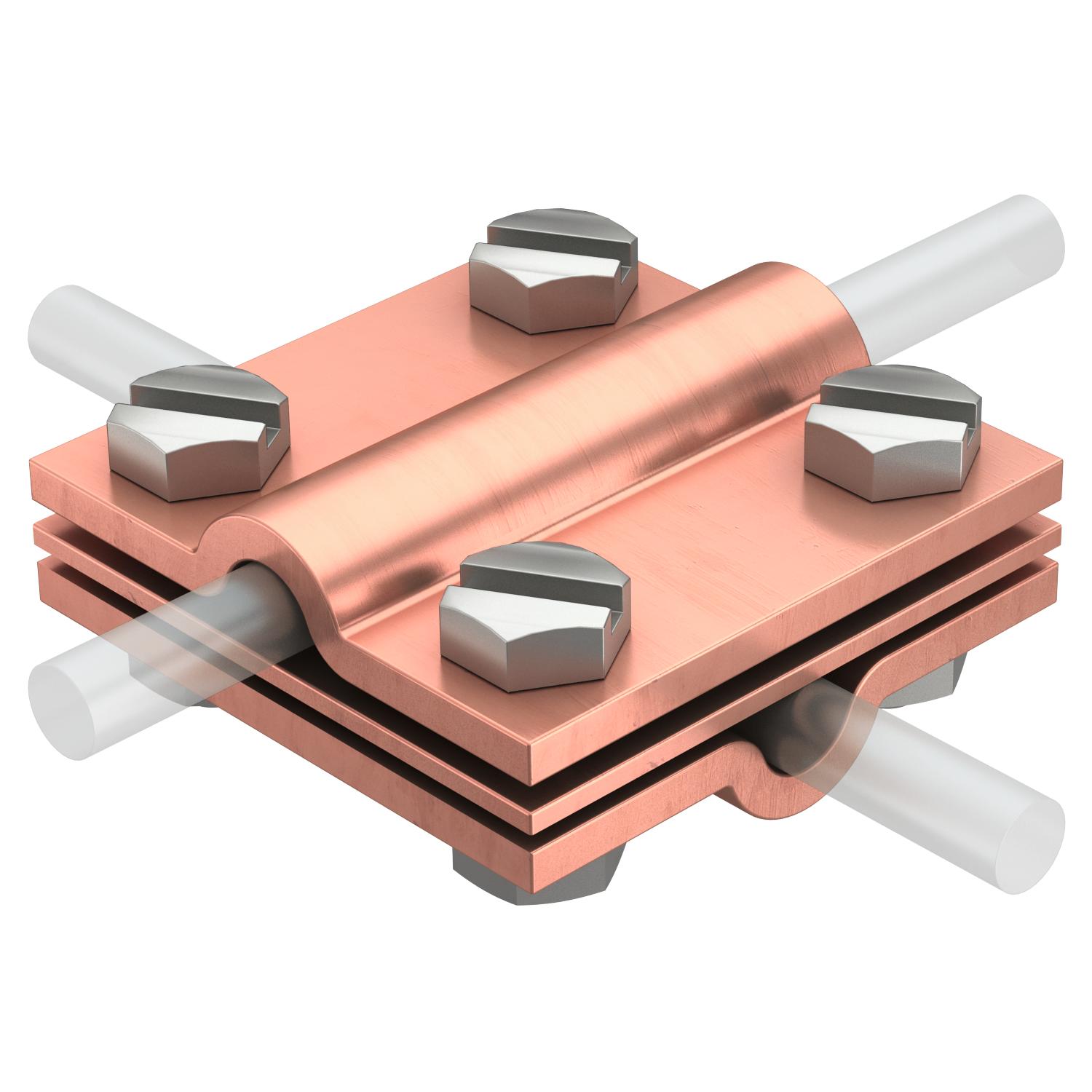

Cross-connector with intermediate plate for Rd 8−10 mm Cu

Item no. 5312418 | EAN 4012195418214

5312418 / 252 8-10 CU
Rd 8-10 mm
Product description
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8–10 x Rd 8–10 / FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 made of rust-proof stainless steel (A2)
  • Lightning current-tested
Technical data

Technical data

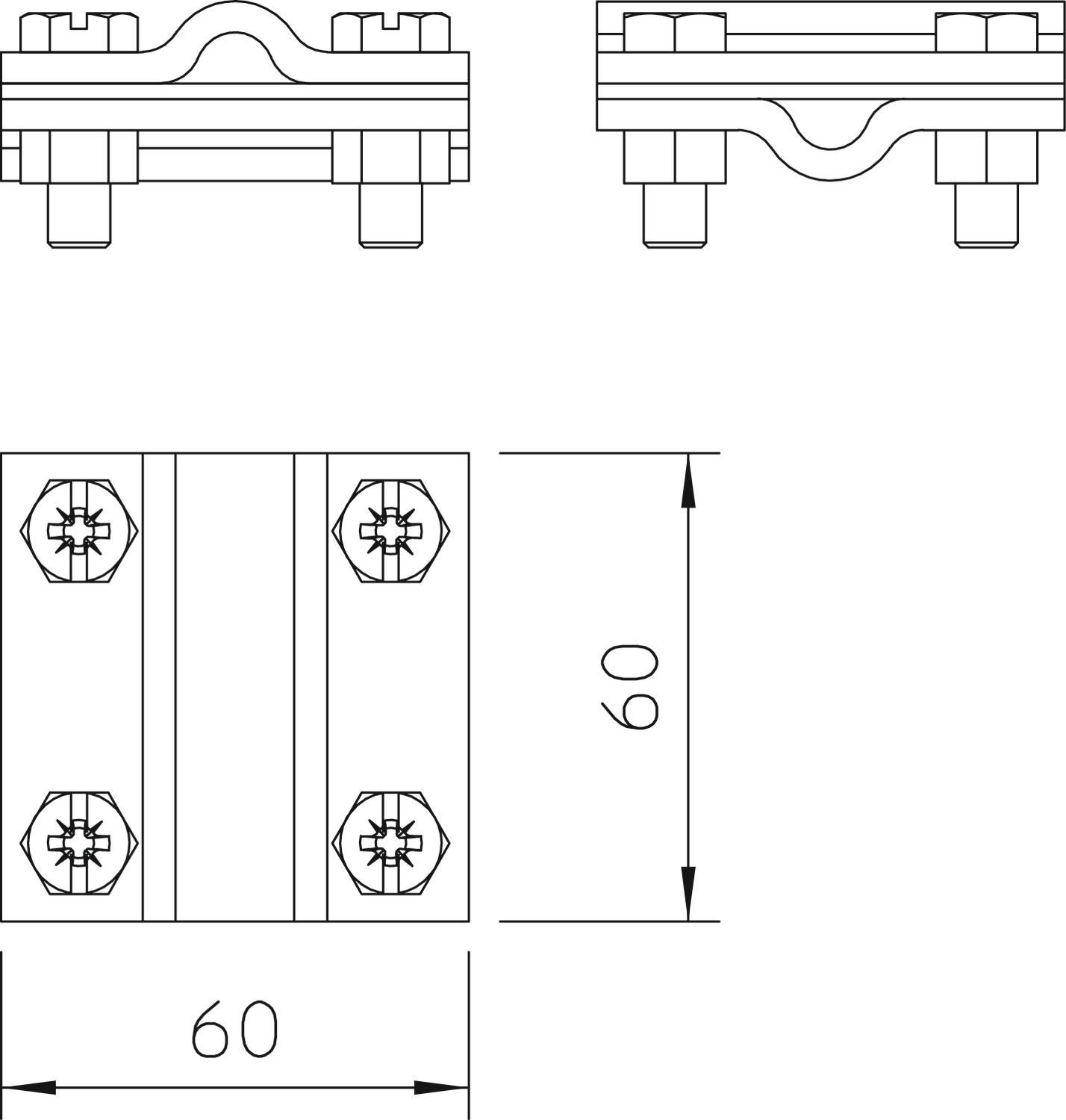

Dimension 8-10mm
Dimension A 60 mm
Dimension B 60 mm
Fit Rd 8-10 mm
Intermediate plate yes
Lightning current carrying capacity H/100 kA
Material Copper
Suitable for connection Round conductor Rd 8–10 / Rd 8–10
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
252 8-10 CU Rd 8-10 mm 5312418
10 piece
