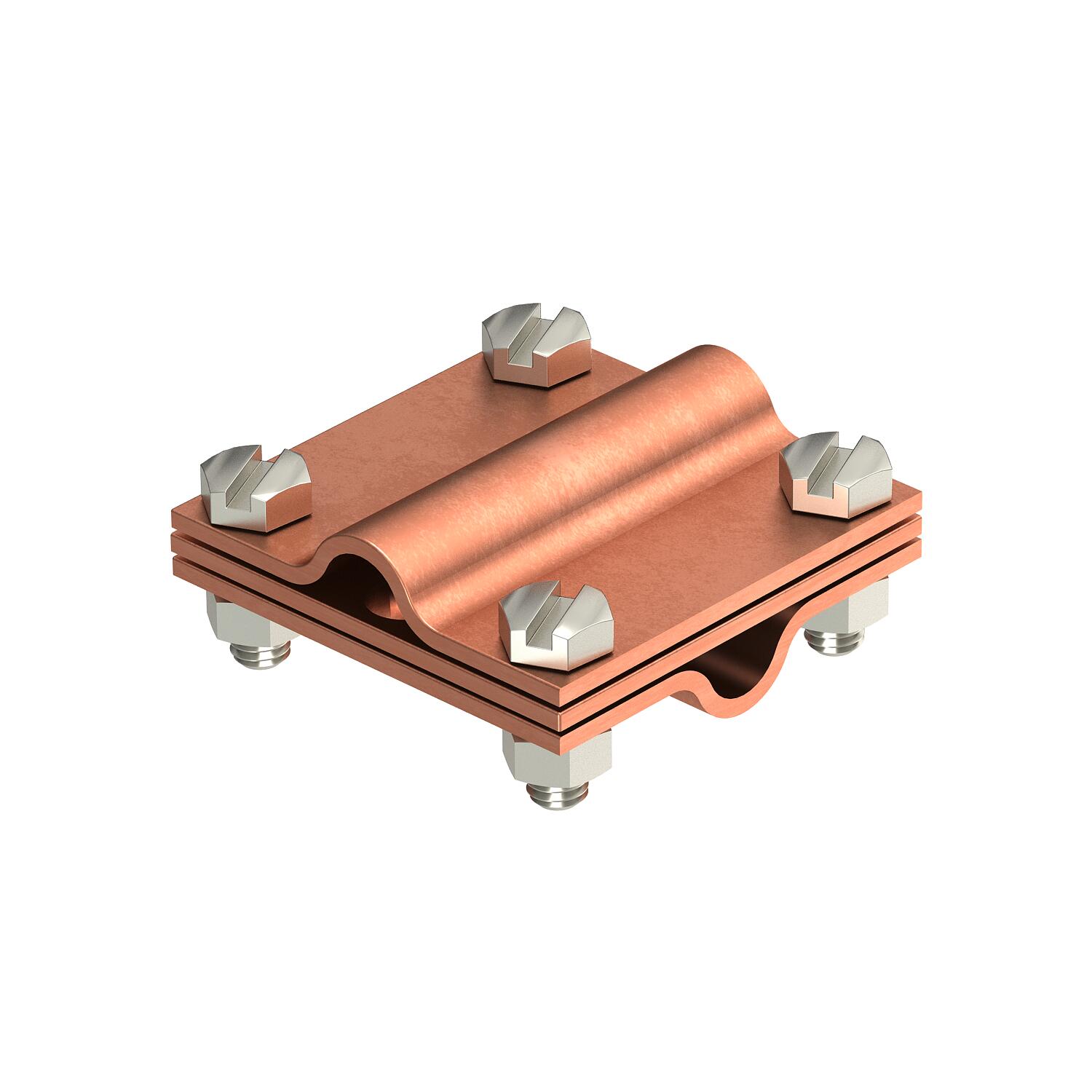

Cross-connector with intermediate plate for Rd 8−10 mm Cu

Item no. 5314135 | EAN 4012195419112

5314135 / 254 DIN 8-10 CU
Rd 8-10 mm
Product description
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

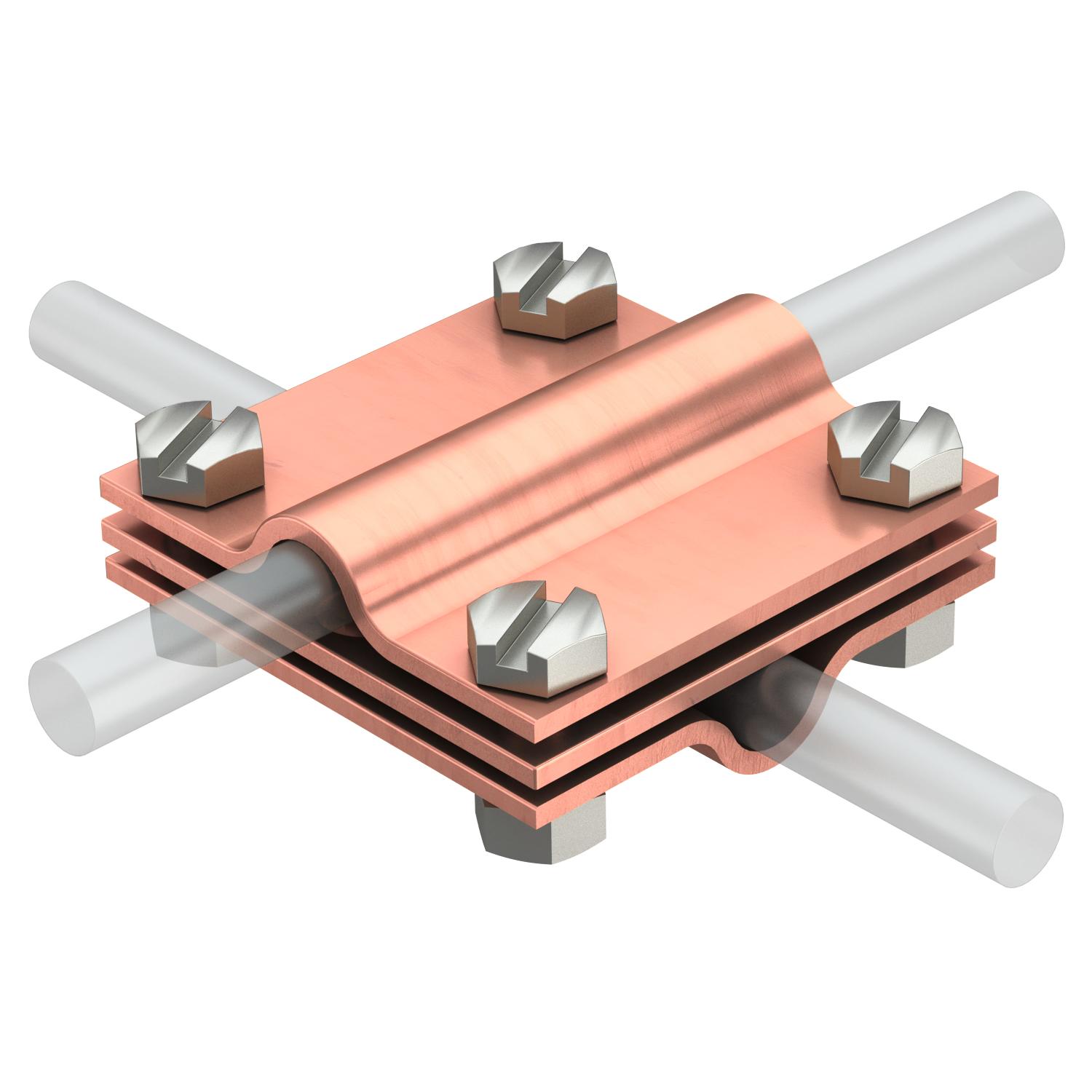

• Fit: Rd 8-10 x Rd 8-10

• With adapter plate

• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6 (F)

made of rustproof steel (VA)
  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm
Dimension A 52 mm
Dimension B 52 mm
Fit Rd 8-10 mm
Intermediate plate yes
Lightning current carrying capacity H/100 kA
Material Copper
Suitable for connection Round conductor Rd 8–10 / Rd 8–10
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
254 DIN 8-10 CU Rd 8-10 mm 5314135
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 254 DIN 8-10 CU / 5314135 , 0.06MB , pdf
