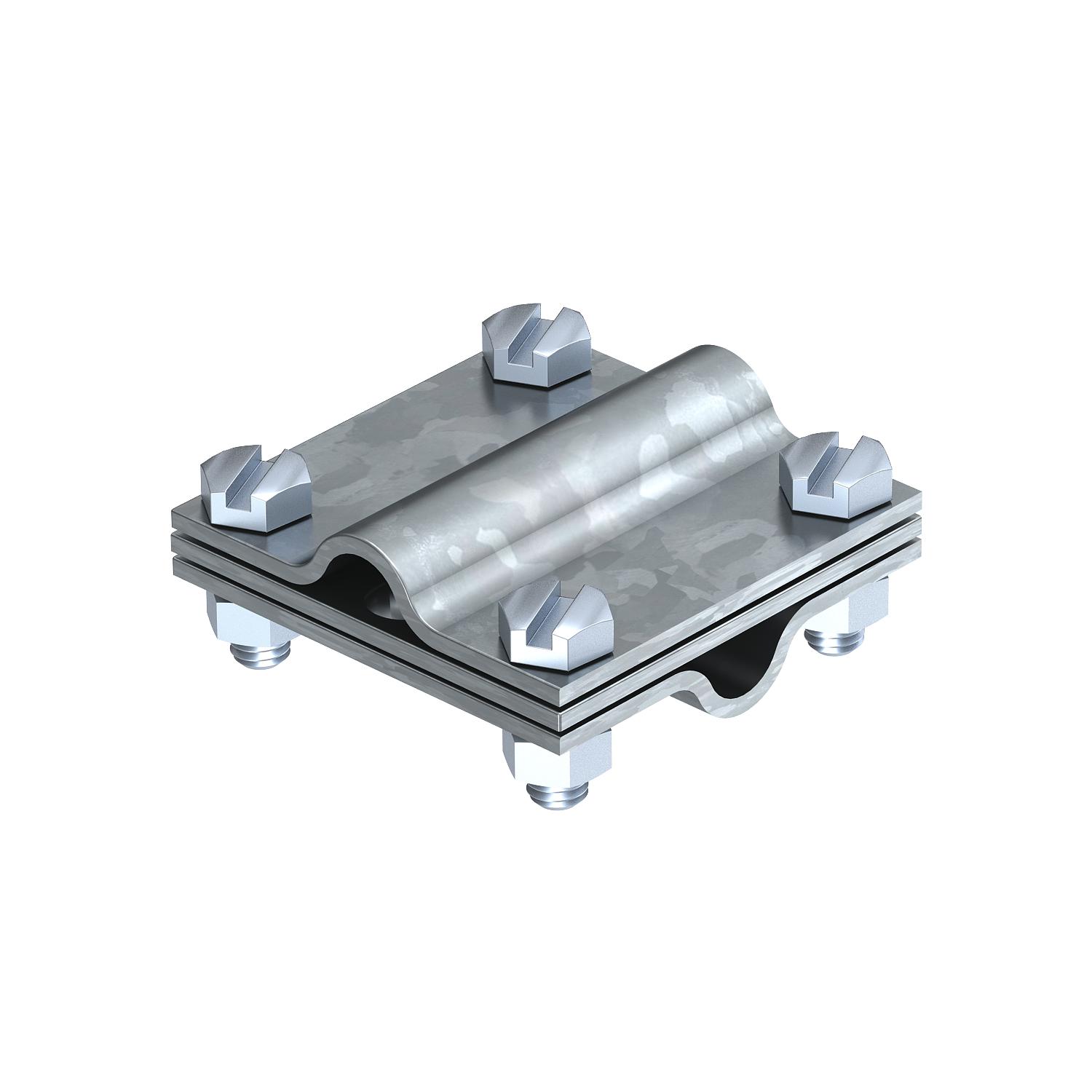

Cross-connector with intermediate plate for Rd 8−10 mm FT
Item no. 5314038 | EAN 4012195418993
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

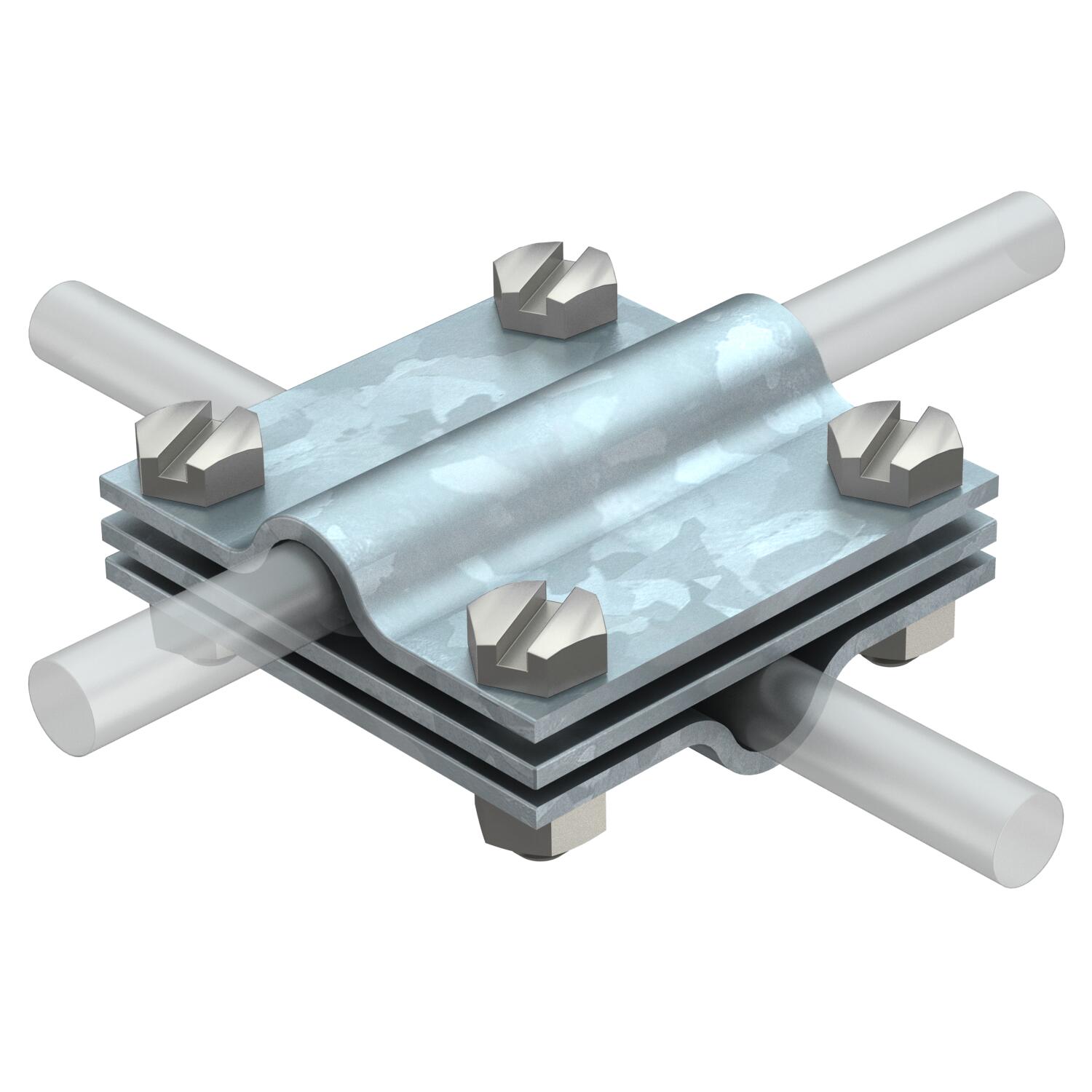

• For round conductors, fit: Rd 8-10 x Rd 8-10
• With adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

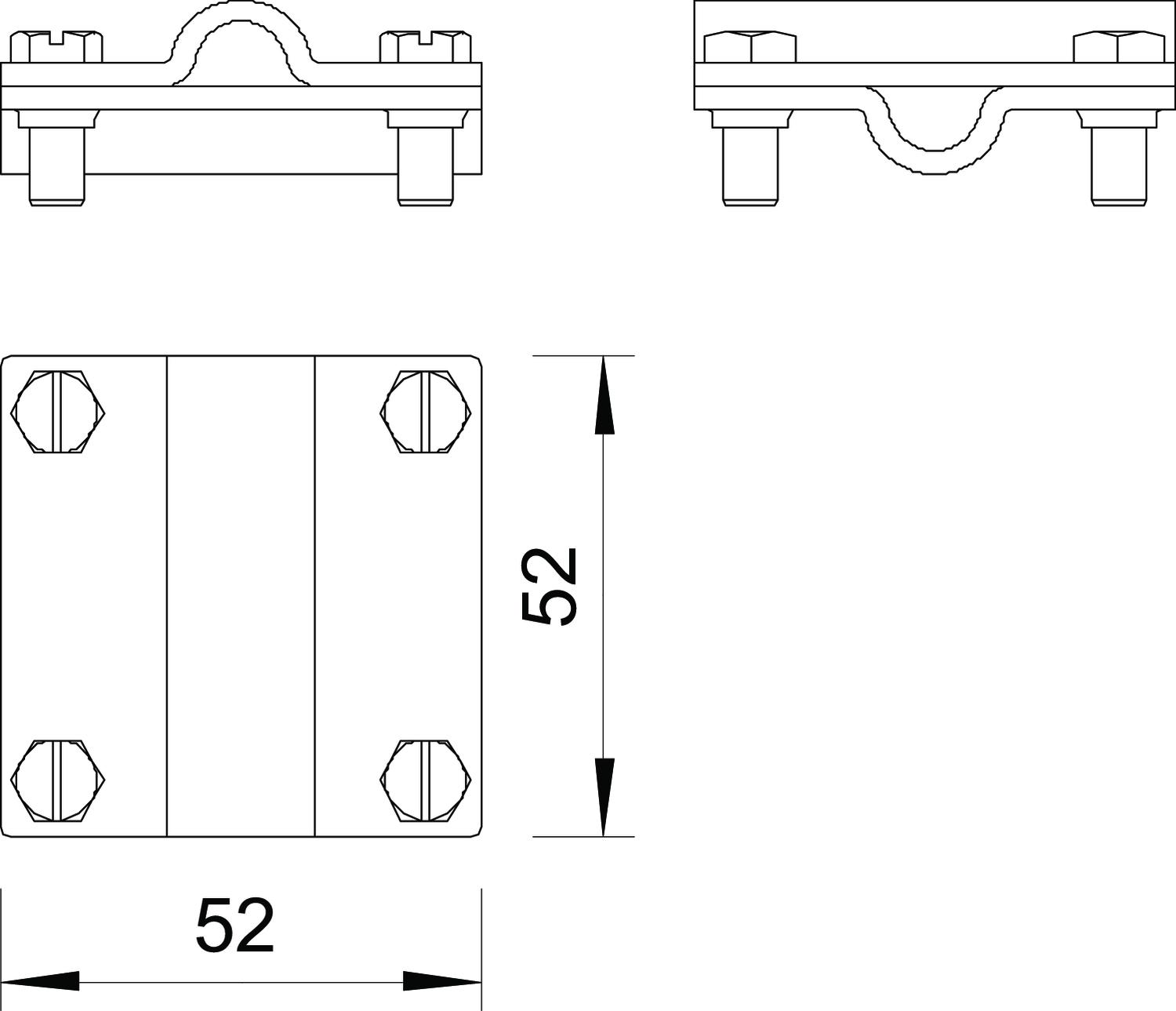

Dimension A 52 mm Dimension B 52 mm - All types
- Downloads
-
Data sheet 254 DIN 8-10 FT / 5314038 , 0.14MB , pdfDeclaration of conformity 254 DIN 8-10 FT / 5314038 , 0.06MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
