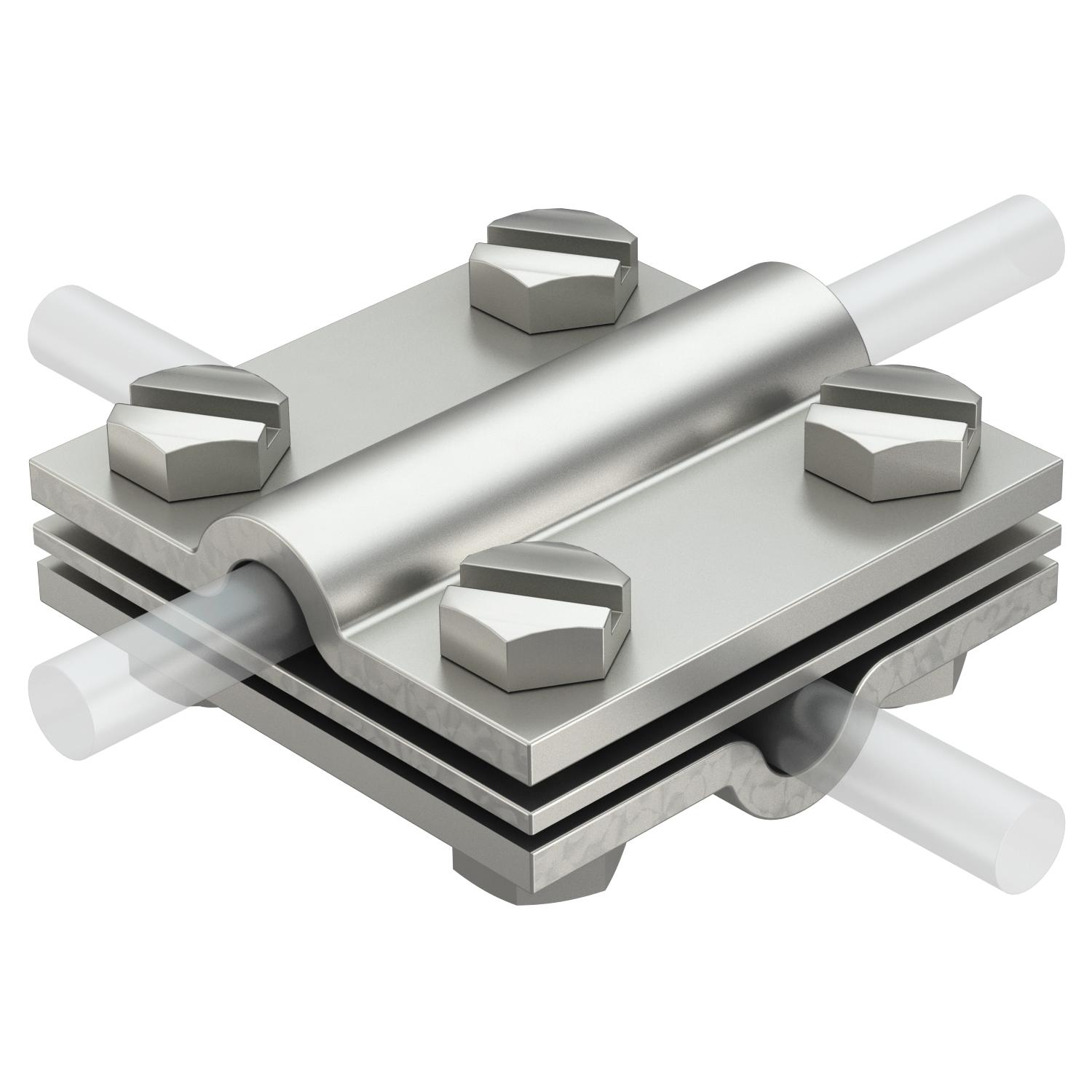

Cross-connector with intermediate plate for Rd 8−10 mm, wide version A4
Item no. 5312294 | EAN 4012196428045
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10 / FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 252 S1 V4A / 5312294 , 0.23MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
