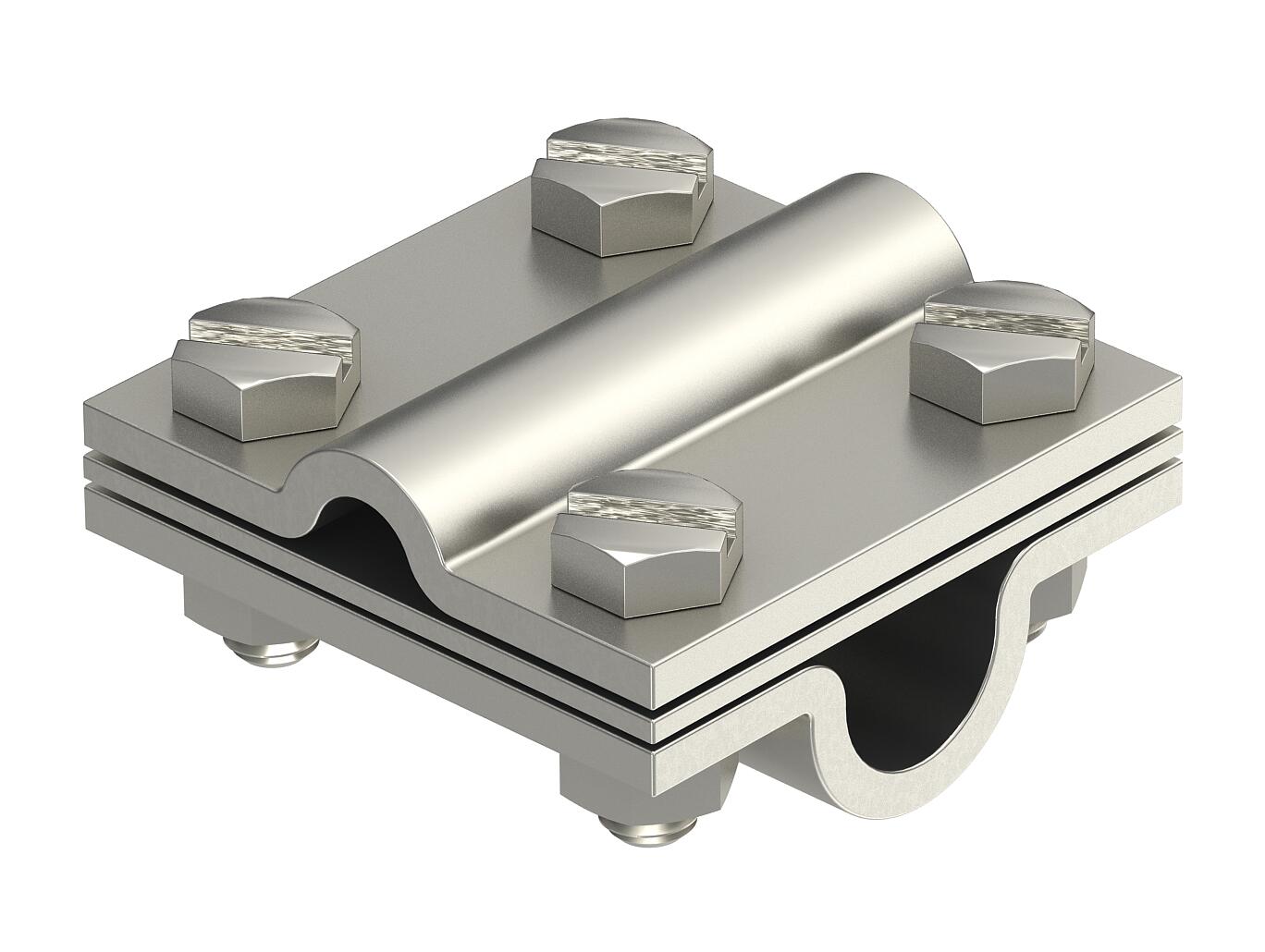

Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4
Item no. 5312346 | EAN 4012195893103
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

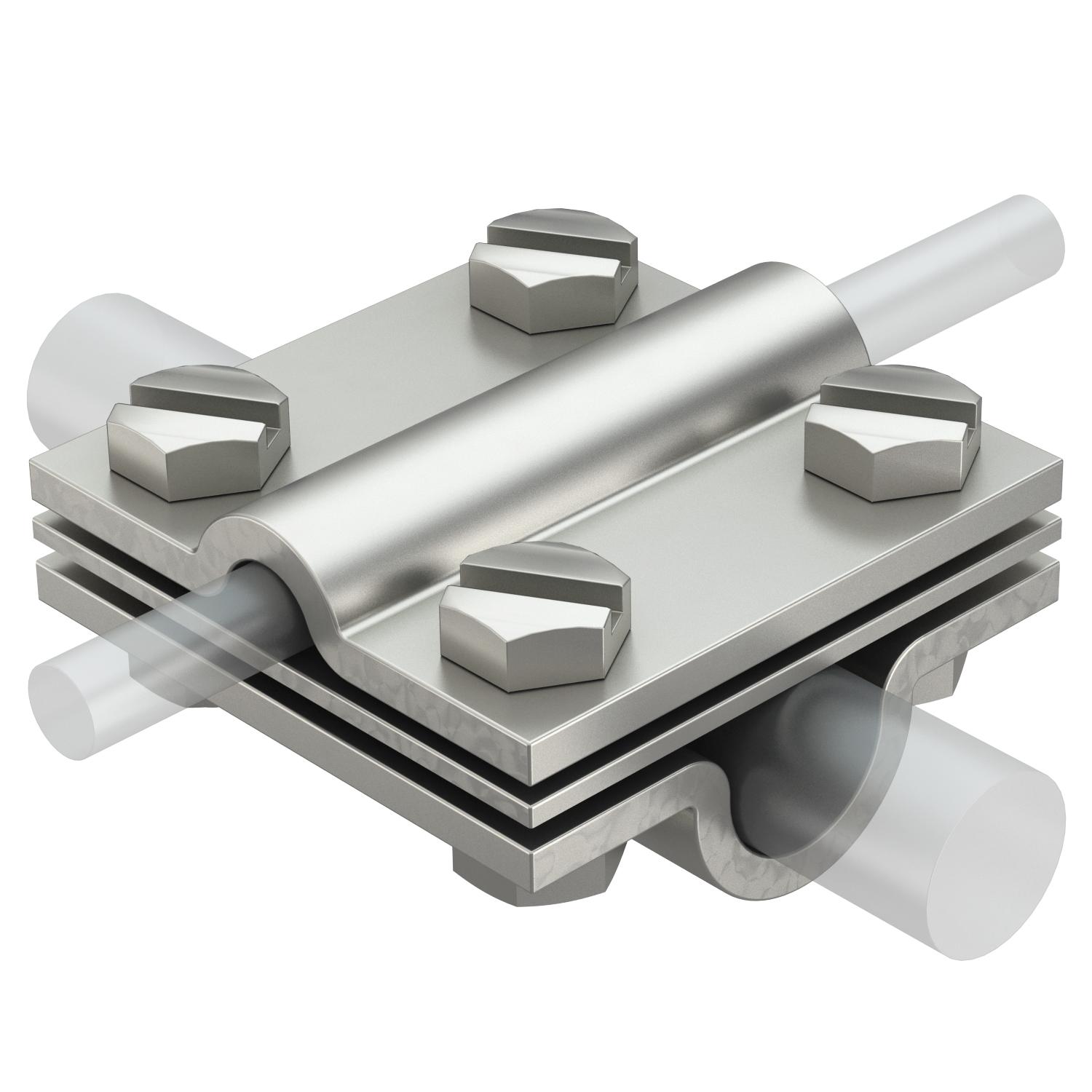

• Fit: Rd 8-10 x Rd 16 / FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 x 16 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8-10 / Rd 16 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

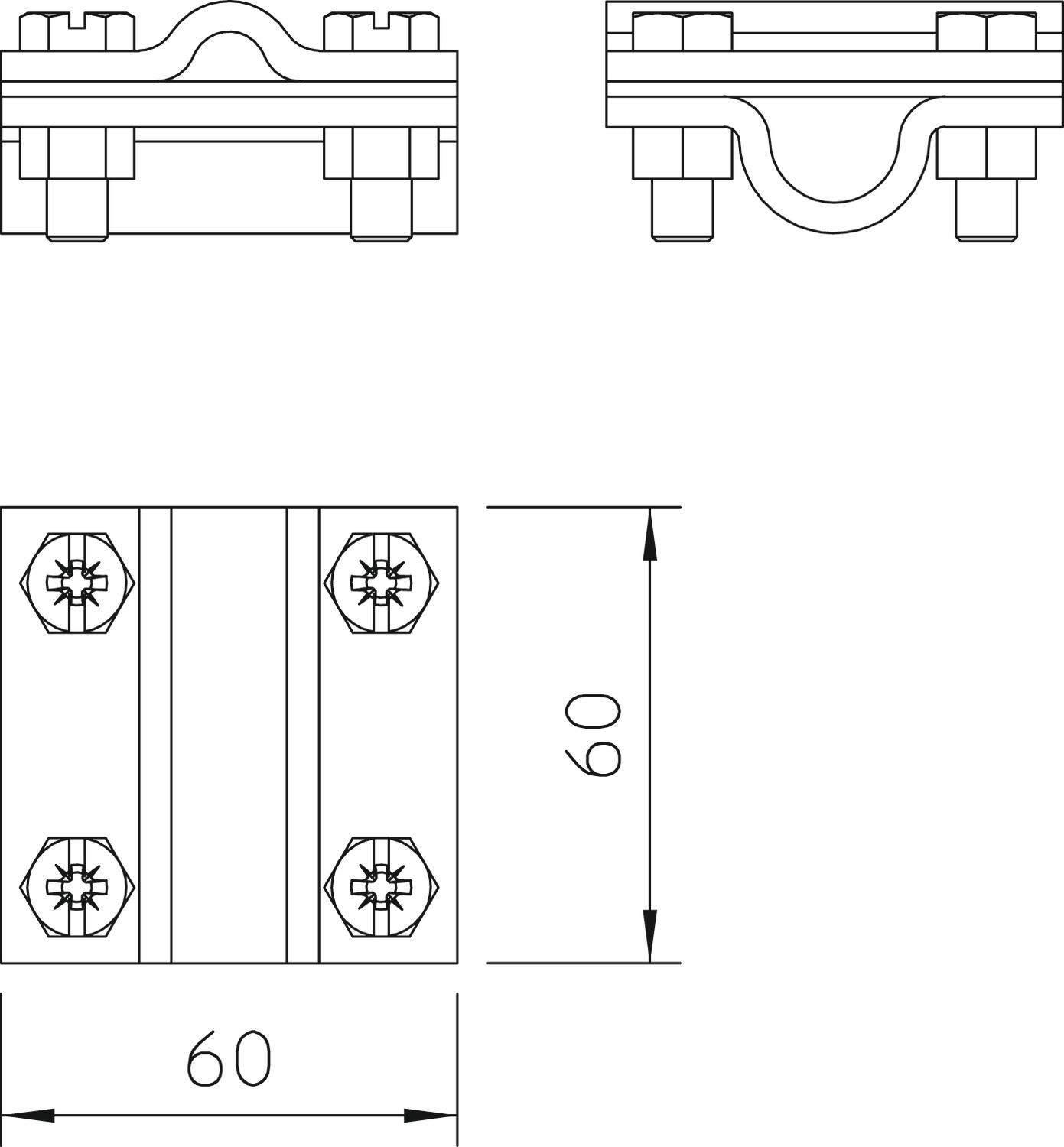

Dimension A 60 mm Dimension B 60 mm - All types
- Downloads
-
Data sheet 252 8-10x16 V4A / 5312346 , 0.25MB , pdfREACH Declaration of conformity 252 8-10x16 V4A / 5312346 , 0.12MB , pdfRoHS Declaration of conformity 252 8-10x16 V4A / 5312346 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdfNo invitation to tender text is available for this product.
