Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT

Item no. 5312345 | EAN 4012195418153

Item no. / Types	5312345 / 252 8-10X16 FT

Fit	Rd 8-10 x 16 mm

Surface	Hot-dip galvanised

Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Fit: Rd 8-10 x Rd 16 / FL 30

• With adapter plate

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Technical data

Technical data

Dimension	8-10mm
Dimension A	60 mm
Dimension B	60 mm
Fit	Rd 8-10 x 16 mm
Intermediate plate	yes
Lightning current carrying capacity	H/100 kA

Material	Steel
Suitable for connection	Round conductor Rd 8-10 / Rd 16
Surface	Hot-dip galvanised
Type of connector	Cross-connectors
Type of fastening screw	Hexagonal bolt

All types

All types

Types	Fit	Surface	Item no.	Quantity	SSU
252 8-10X16 FT	Rd 8-10 x 16 mm	Hot-dip galvanised	5312345	piece	25 piece

Downloads

Data sheet 252 8-10X16 FT / 5312345 , 0.21MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

REACH Declaration of conformity 252 8-10X16 FT / 5312345 , 0.27MB , pdf

Download

RoHS Declaration of conformity 252 8-10X16 FT / 5312345 , 0.12MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Mounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf

Download

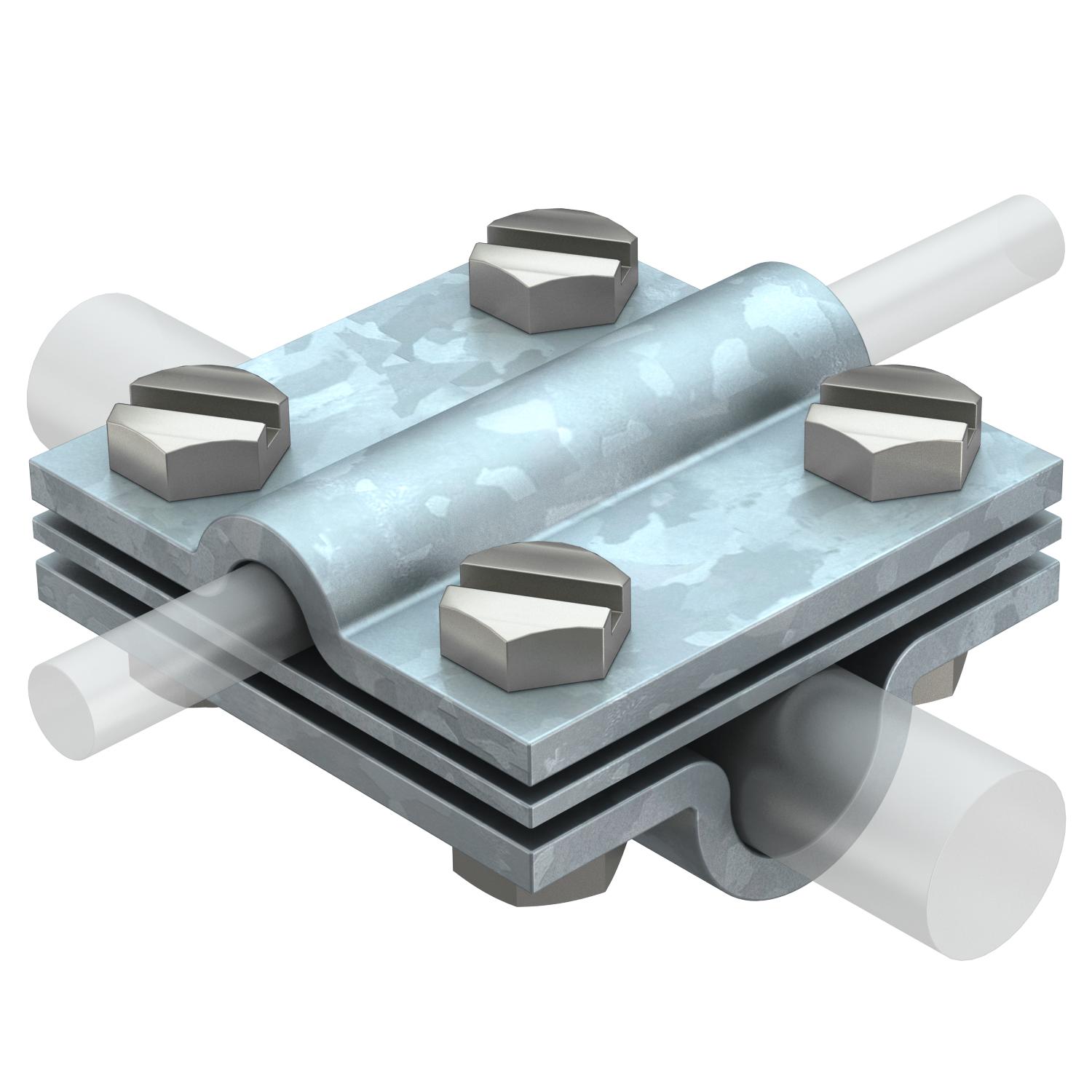

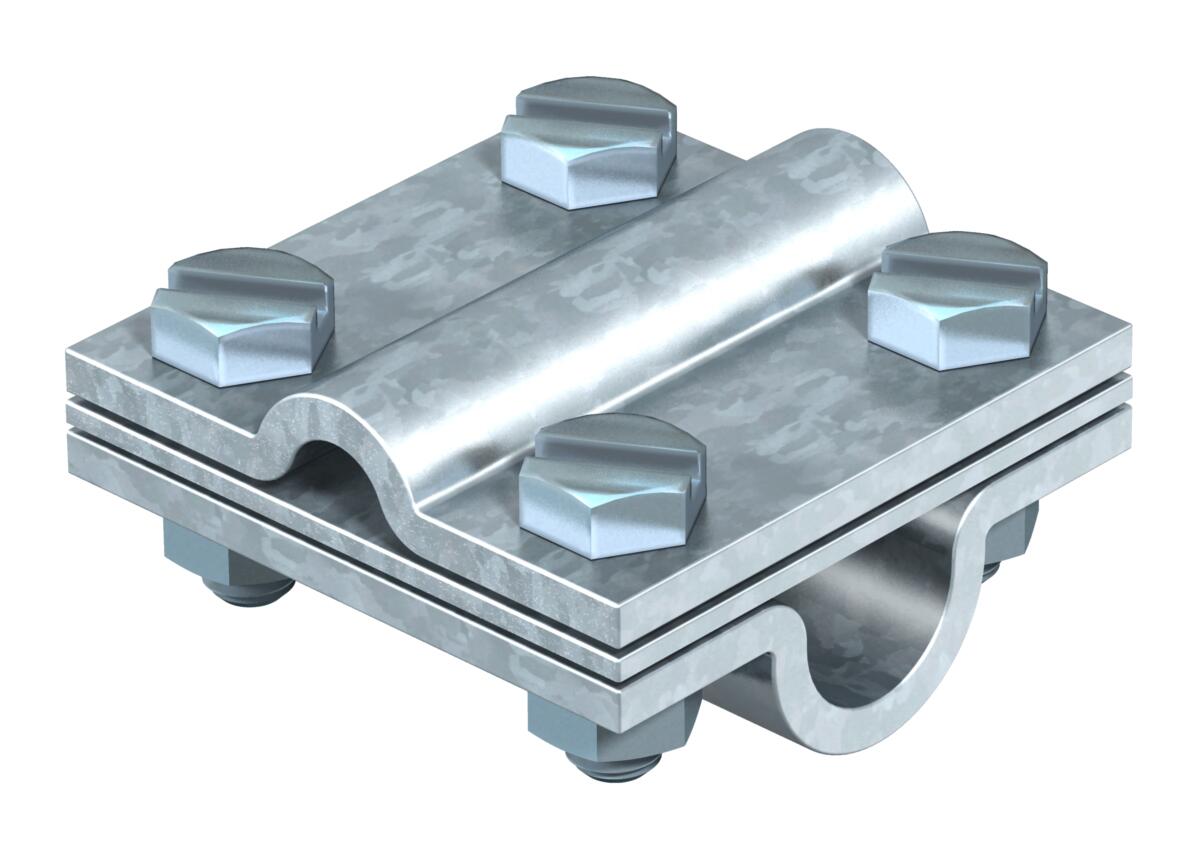

Product graphic 252 8-10X16 FT / 5312345, 115.74 kB, jpg

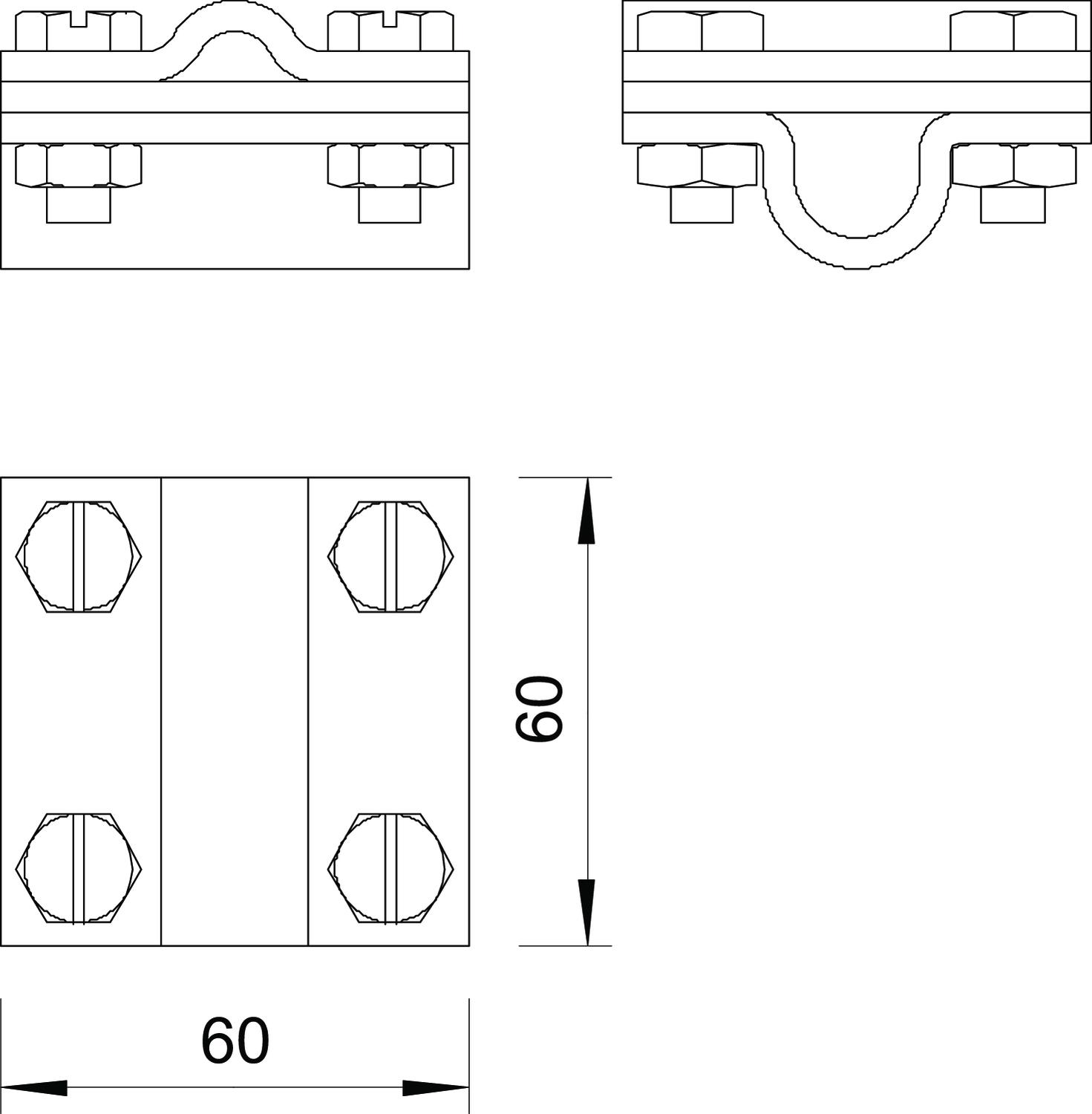

Scale drawing 252 8-10X16 FT / 5312345, 79.95 kB, jpg
