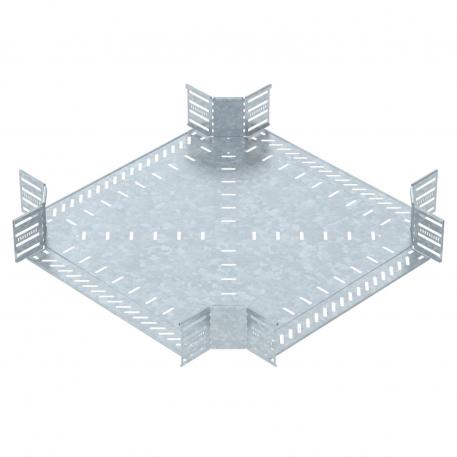

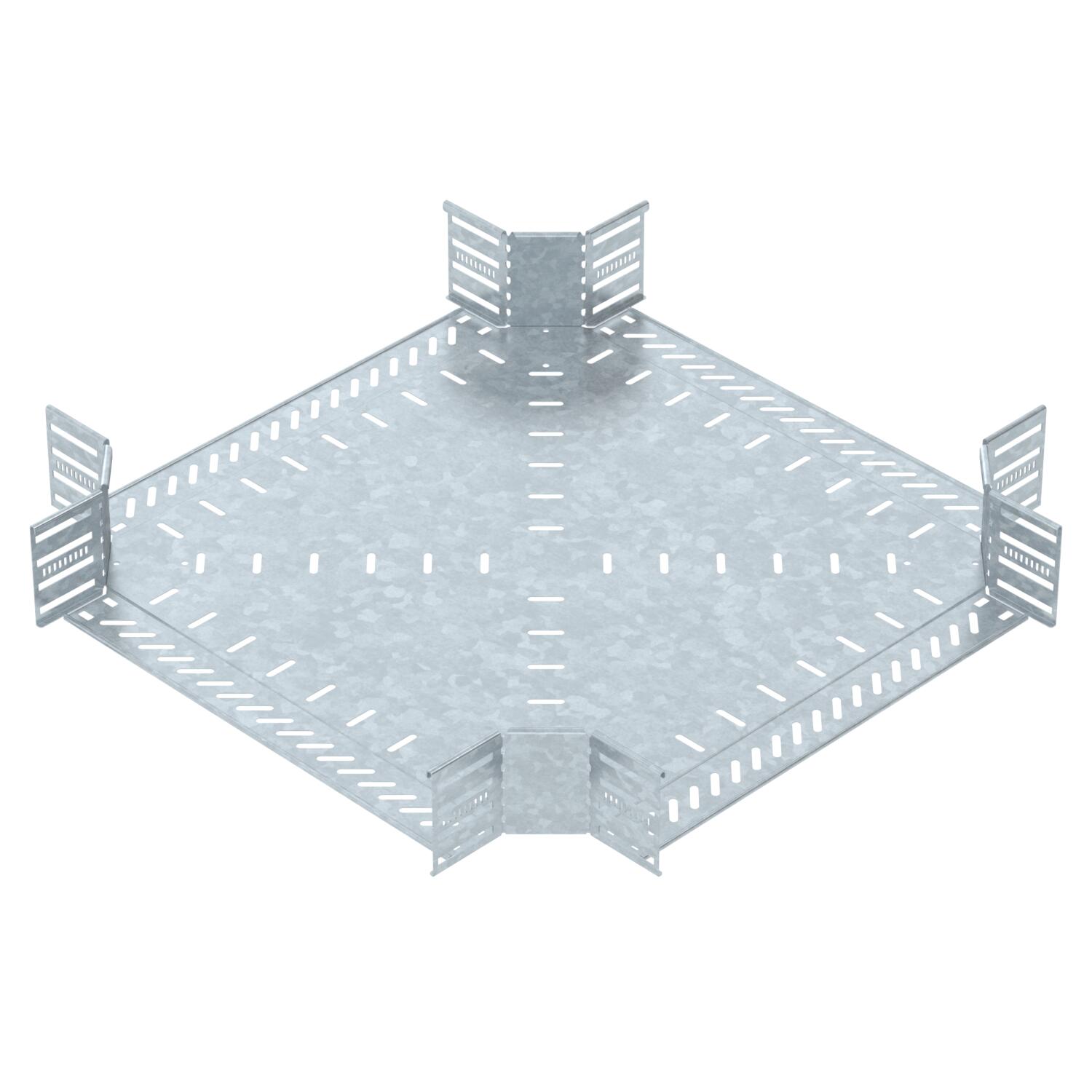

Cross-over 110 FT

Item no. 7027461 | EAN 4012197339562

Item no. / Types

Width

Product description

Product description

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

Colour	zinc
Connector version	Integrated connector

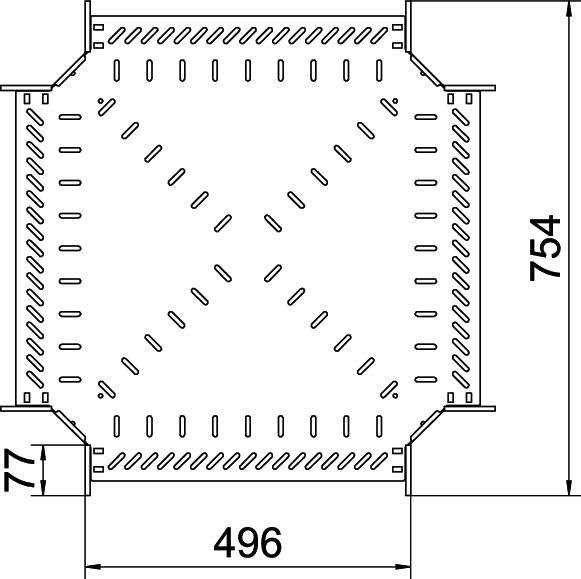

Dimension	110x500
Dimension B	500 mm
Height	110 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	1 mm
NATO hole pattern	no
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	48 St.
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	500 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 110 FT	100 mm	7027451	piece	1 piece
RK 120 FT	200 mm	7027453	piece	1 piece
RK 130 FT	300 mm	7027455	piece	1 piece
RK 140 FT	400 mm	7027457	piece	1 piece
RK 150 FT	500 mm	7027461	piece	1 piece
RK 160 FT	600 mm	7027463	piece	1 piece
