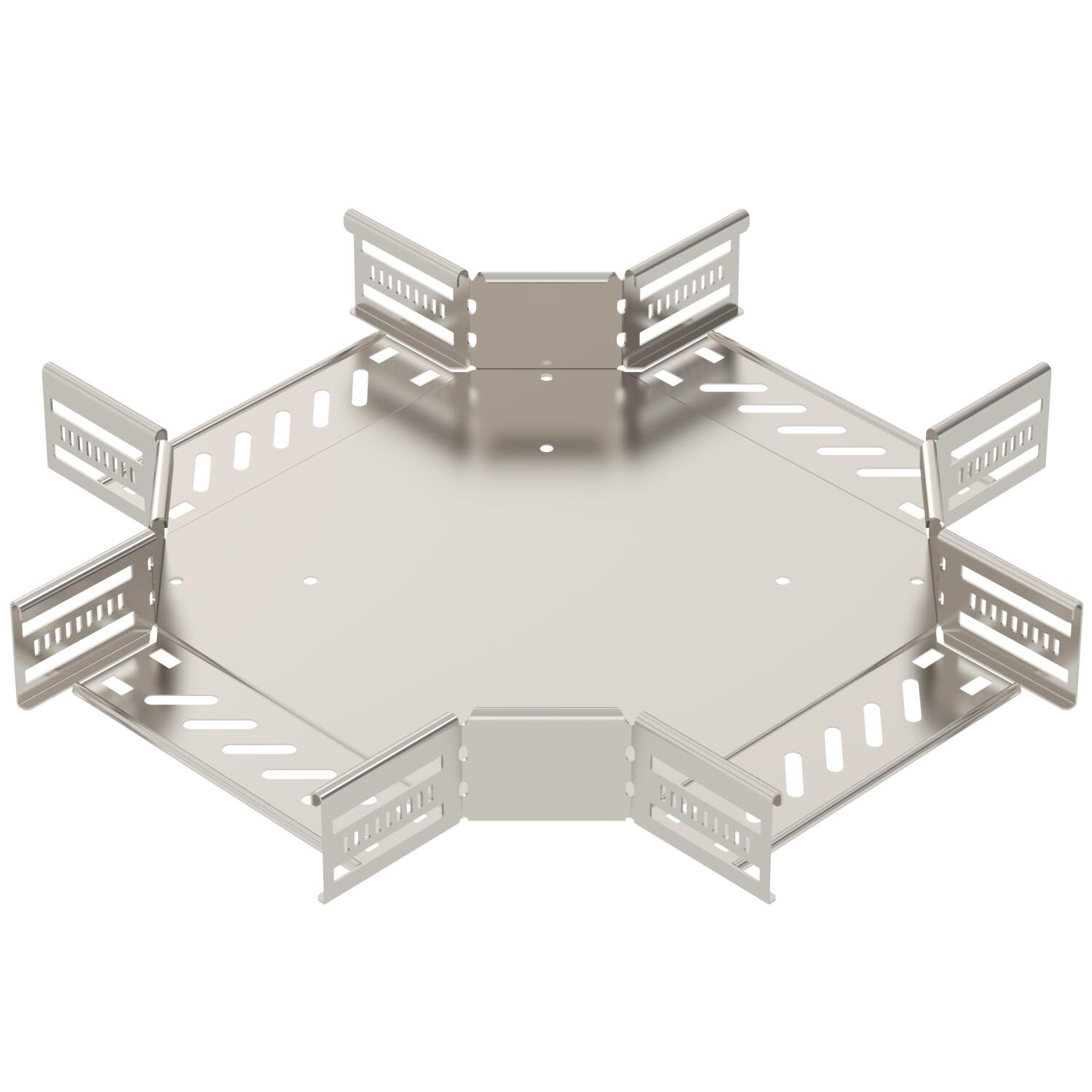

Cross-over 60/200 A4
Item no. 7027522 | EAN 4012197339838
- Product description
-
Product description
Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

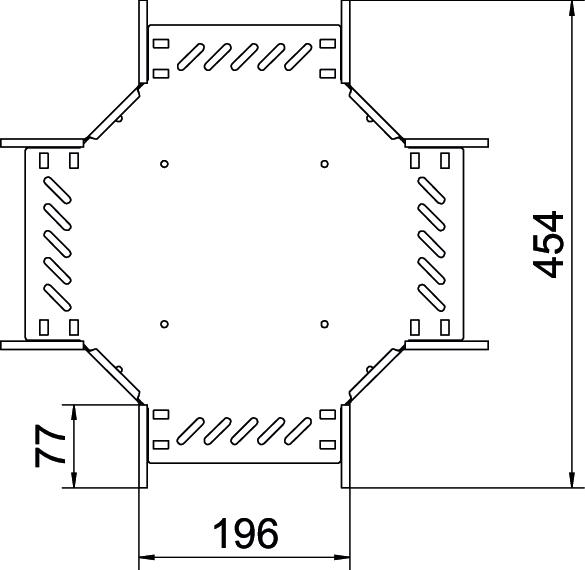

Connector version Integrated connector Dimension 60x200 Maintain electrical functions yes Material Stainless steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 24 St. Rustproof steel, pickled no Surface Bright, treated Type of connector, cable support system Screwed Wide-span version no Dimensions
Dimension B 200 mm Height 60 mm Width 200 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Cover, cross-over 400 A4
RKD 400 A4 7027886 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A4
FRSB 6x12 A4 6406142 100 piece - Downloads
-
Data sheet RK 620 A4 / 7027522 , 0.21MB , pdfDeclaration of conformity RK 620 A4 / 7027522 , 0.17MB , pdfREACH Declaration of conformity RK 620 A4 / 7027522 , 0.12MB , pdfRoHS Declaration of conformity RK 620 A4 / 7027522 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
