Cross-over 60 FS

Item no. 7027313 | EAN 4012197338480

Item no. / Types

Width

Product description

Product description

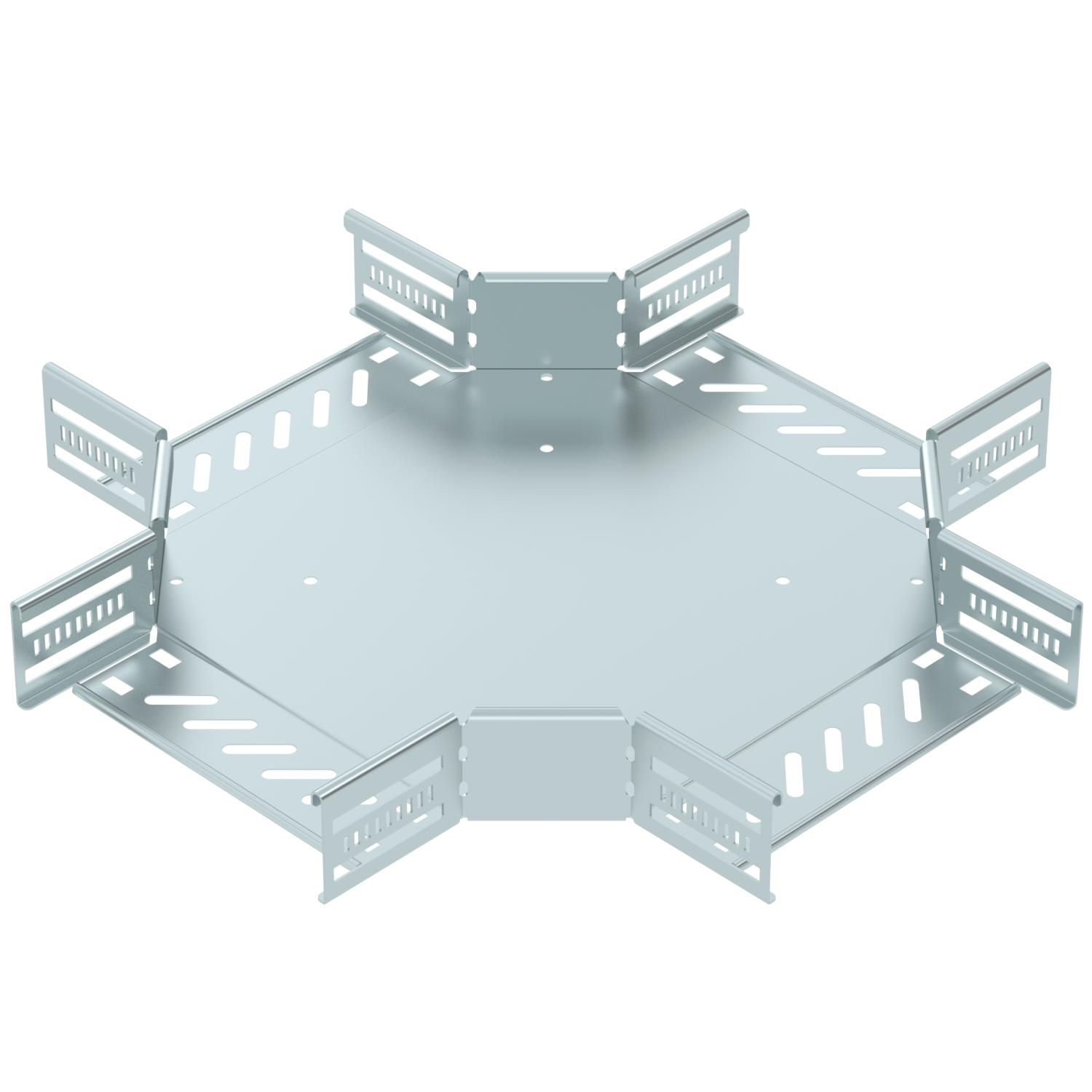

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.

Technical data

Technical data

Connector version	Integrated connector

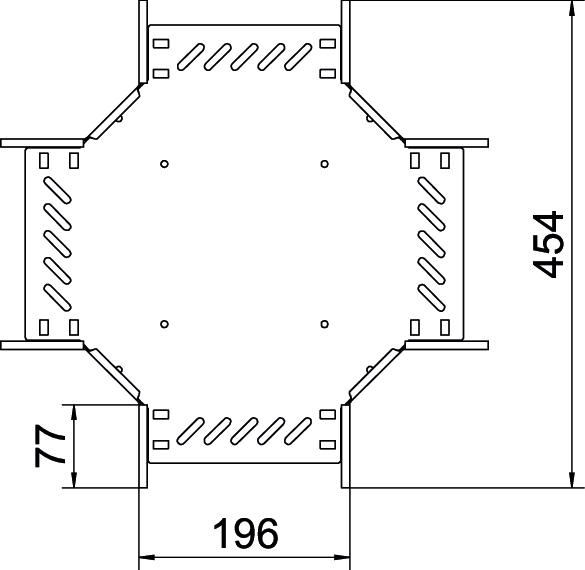

Dimension	60x200
Dimension B	200 mm
Height	60 mm
Maintain electrical functions	yes
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	24 St.
Rustproof steel, pickled	no
Surface	Strip galvanized
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 610 FS	100 mm	7027311	piece	1 piece
RK 620 FS	200 mm	7027313	piece	1 piece
RK 630 FS	300 mm	7027315	piece	1 piece
RK 640 FS	400 mm	7027317	piece	1 piece
RK 650 FS	500 mm	7027319	piece	1 piece
RK 660 FS	600 mm	7027321	piece	1 piece
