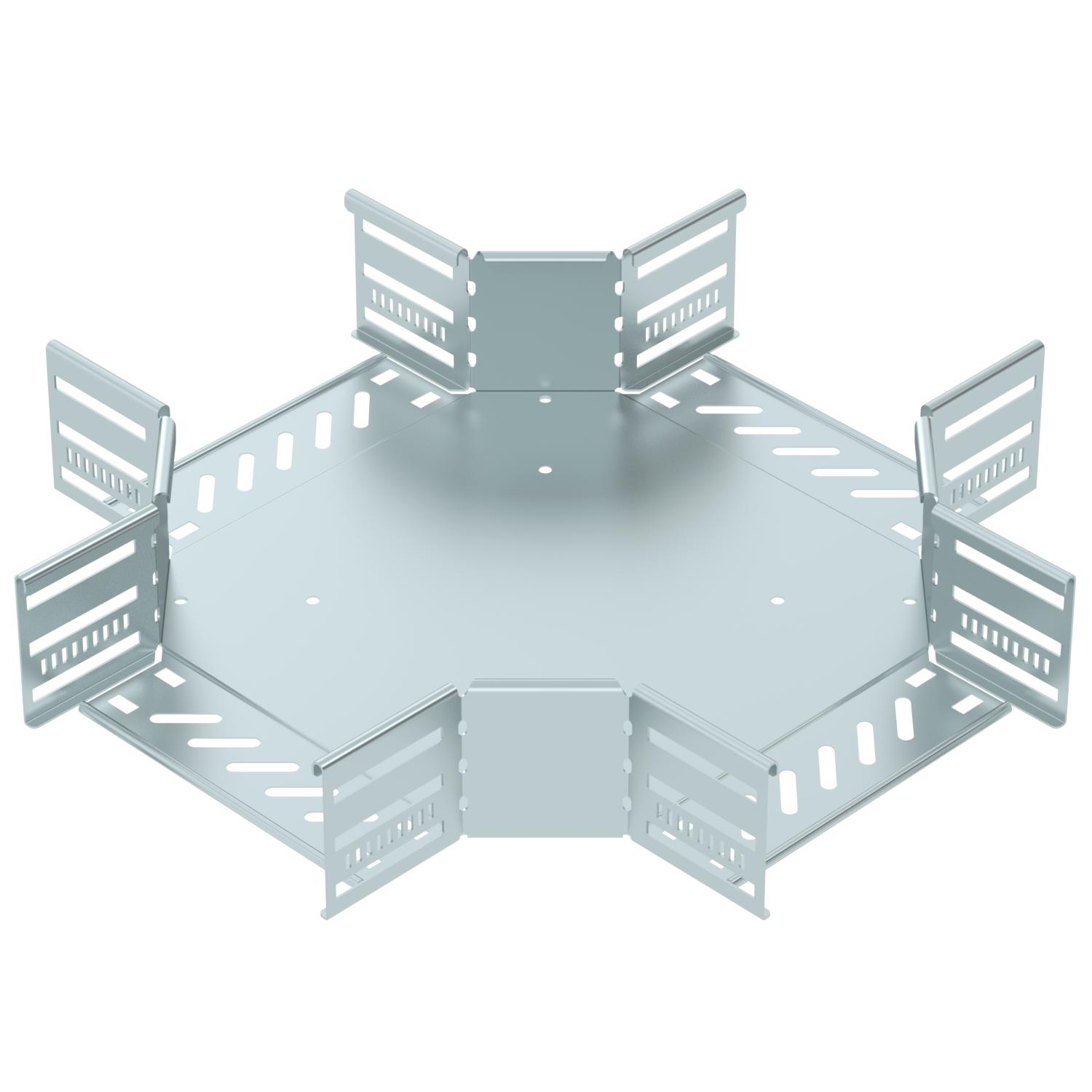

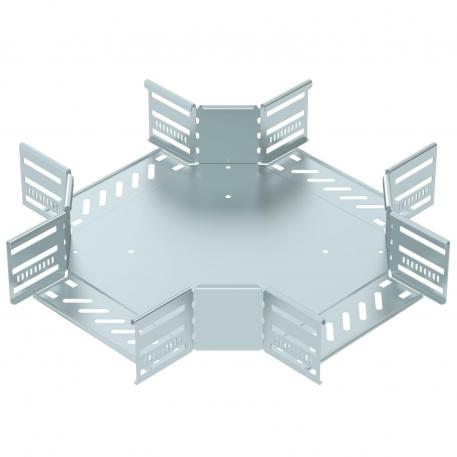

Cross-over 85 FS

Item no. 7027333 | EAN 4012197338664

Item no. / Types

Width

Product description

Product description

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.

Technical data

Technical data

Connector version	Integrated connector

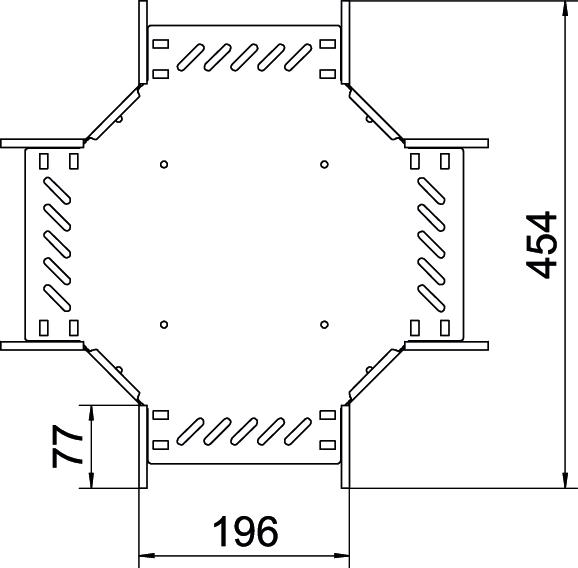

Dimension	85x200
Dimension B	200 mm
Dimension R	50 mm
Height	85 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	32 St.
Rustproof steel, pickled	no
Surface	Strip galvanized
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 810 FS	100 mm	7027331	piece	1 piece
RK 820 FS	200 mm	7027333	piece	1 piece
RK 830 FS	300 mm	7027335	piece	1 piece
RK 840 FS	400 mm	7027337	piece	1 piece
RK 850 FS	500 mm	7027339	piece	1 piece
RK 860 FS	600 mm	7027341	piece	1 piece
