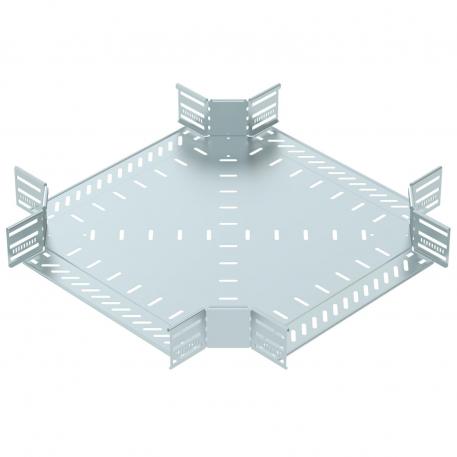

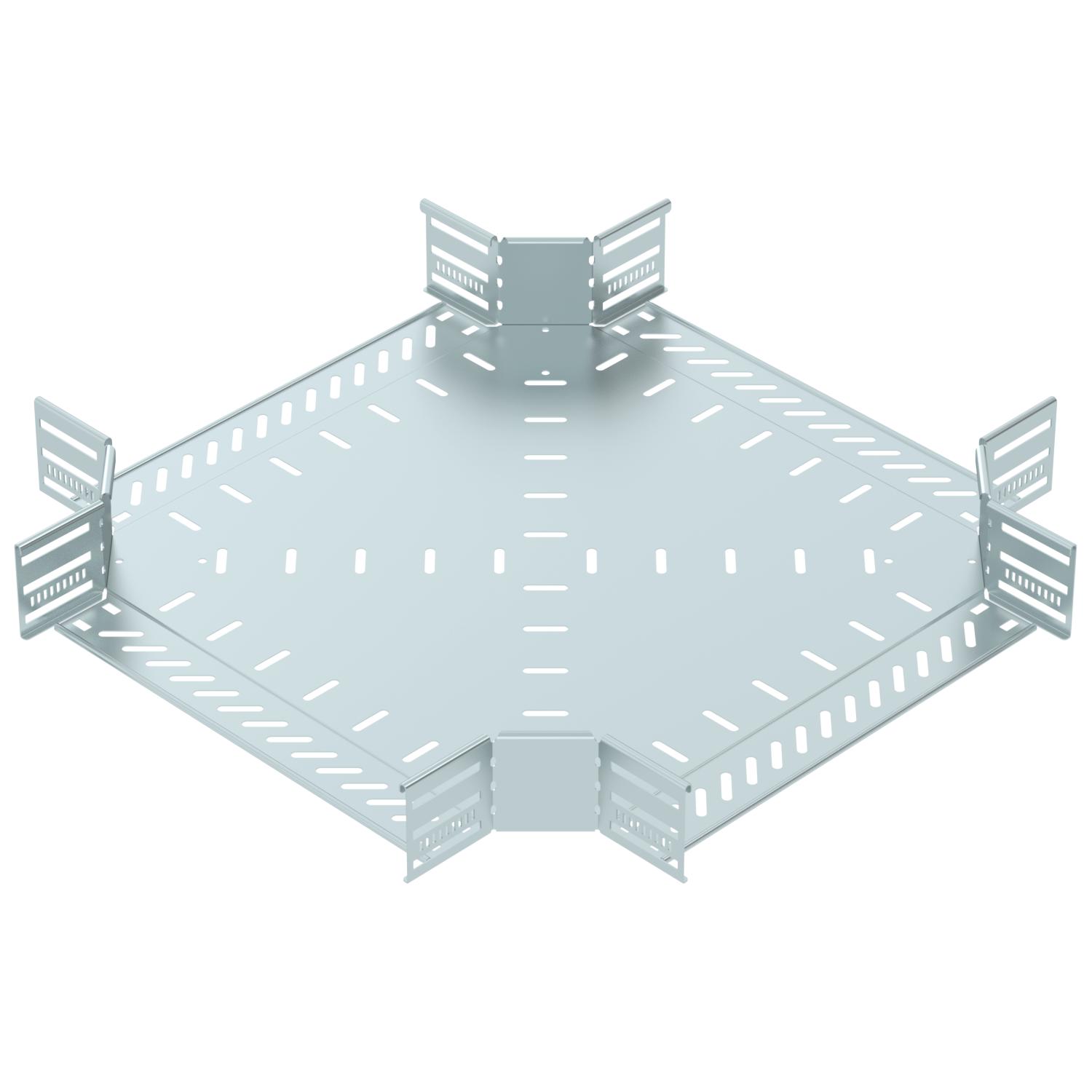

Cross-over 85 FS
Item no. 7027337 | EAN 4012197338725
- Product description
-
Product description
Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
Connector version Integrated connector Dimension 85x400 Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 36 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system screwed/clamped Wide-span version no Dimensions

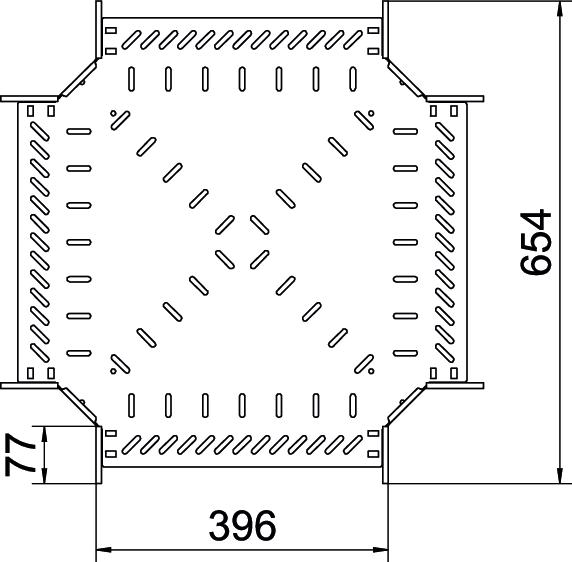

Dimension B 400 mm Dimension R 50 mm Height 85 mm Width 400 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Cover, cross-over FS
RKD 400 FS 7027806 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Double clamp, fitting mounting A2
DOP A2 6035998 10 piece - Downloads
-
Data sheet RK 840 FS / 7027337 , 0.20MB , pdfDeclaration of conformity RK 840 FS / 7027337 , 0.15MB , pdfREACH Declaration of conformity RK 840 FS / 7027337 , 0.12MB , pdfRoHS Declaration of conformity RK 840 FS / 7027337 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
