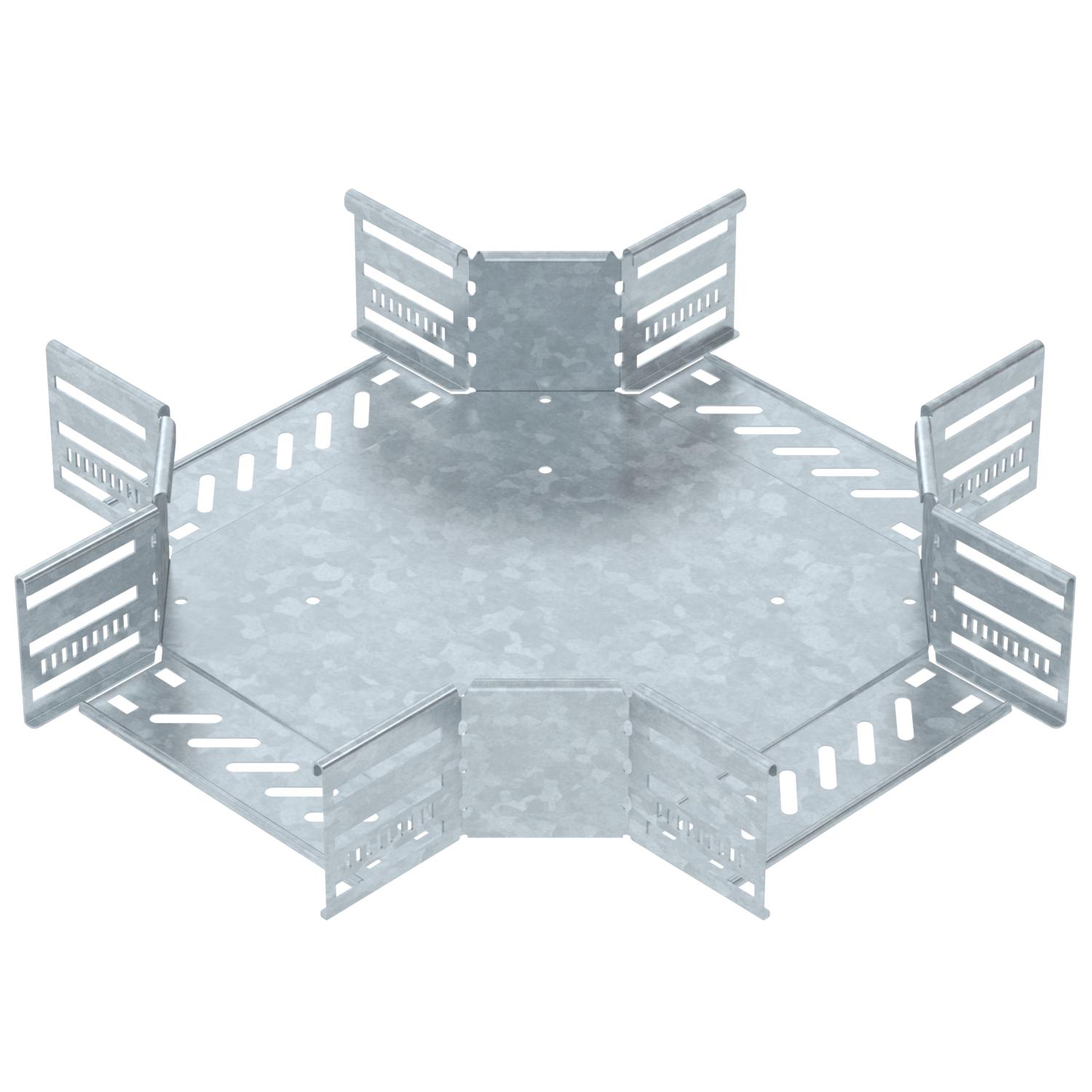

Cross-over 85 FT

Item no. 7027433 | EAN 4012197339296

Item no. / Types

Width

Product description

Product description

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

Colour	zinc
Connector version	Integrated connector

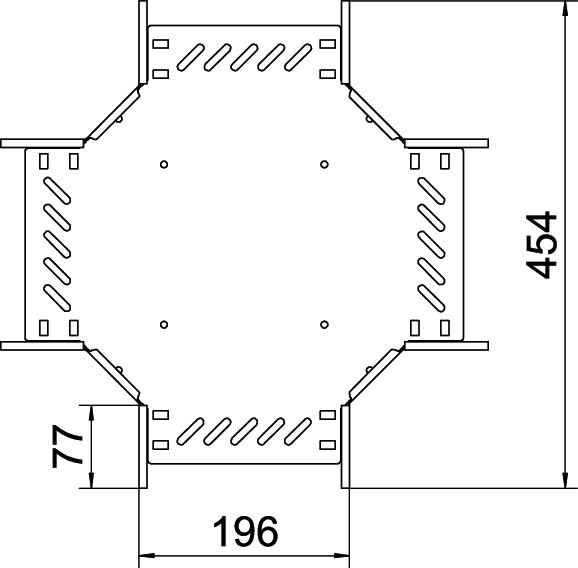

Dimension	85x200
Dimension B	200 mm
Dimension R	50 mm
Height	85 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	32 St.
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 810 FT	100 mm	7027431	piece	1 piece
RK 820 FT	200 mm	7027433	piece	1 piece
RK 830 FT	300 mm	7027435	piece	1 piece
RK 840 FT	400 mm	7027437	piece	1 piece
RK 850 FT	500 mm	7027439	piece	1 piece
RK 860 FT	600 mm	7027441	piece	1 piece
