CTC cable tie clip 180 | 32 | 0.36
morepic-1 morepic-2

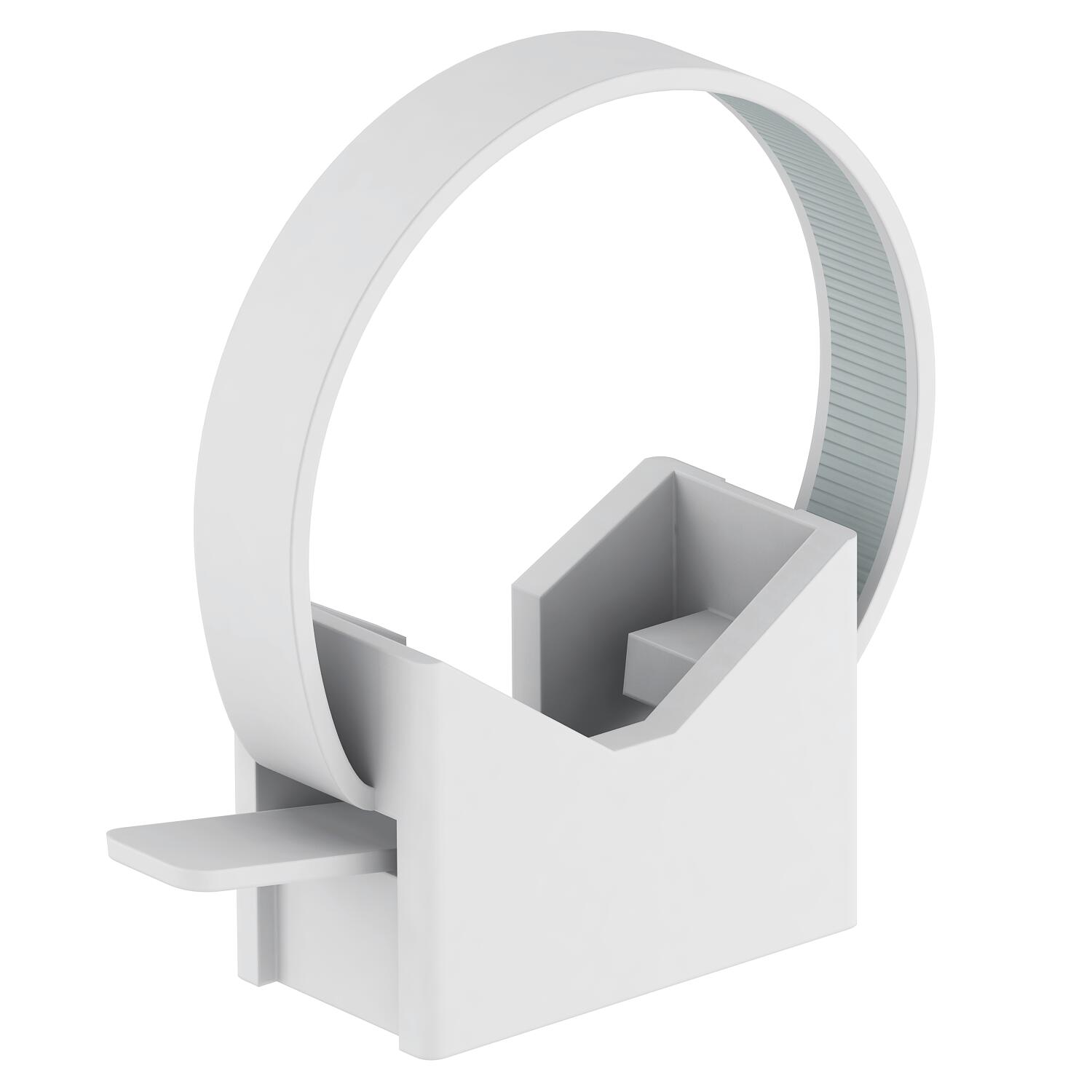

CTC cable tie clip

Item no. 2332790 | EAN 4012196515158

0.36 kN
Product description
Product description
Cable tie clip for easy and quick mounting of various cables, cable bundles and pipe dimensions.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 7,5x180mm
Dimension B 7,5 mm
Halogen-free yes
Height 1,5 mm
Labelling area Without
Length 180 mm
Material Polyamide
Max. Bundle diameter 32 mm
minimum breaking load 0,36 kN
Mounting temperature, max. 35 °C
Mounting temperature_min. -15 °C
Permitted temperature range, max. 85 °C
Permitted temperature range, min. -40 °C
Reflective no
Strip closure Plastic tongue/tab
Tensile strength 360 N
Transparent no
Width 7,5 mm
All types

All types

Types Length Max. Bundle diameter minimum breaking load Item no. Quantity SSU
CTC 7,5x180 LGR 180 mm 32 mm 0.36 kN 2332790
100 piece
CTC 7,5x280 LGR 281 mm 63 mm 0.36 kN 2332794
100 piece
