Cylinder head bolt G 10 | M6
morepic-1 morepic-2

Cylinder head bolt G

Item no. 3153096 | EAN 4012195254836

M6
Product description
Product description

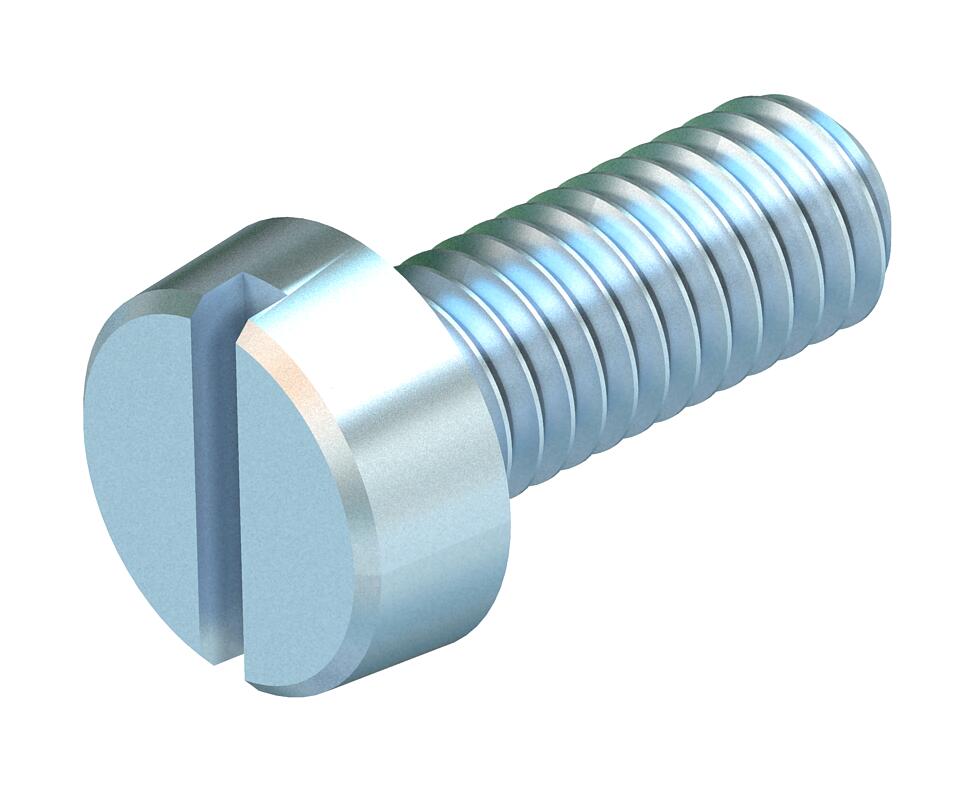

Cylinder head bolt according to ISO 1207 with metric thread. Drive slot M6 x 10 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Philips screw
Technical data

Technical data

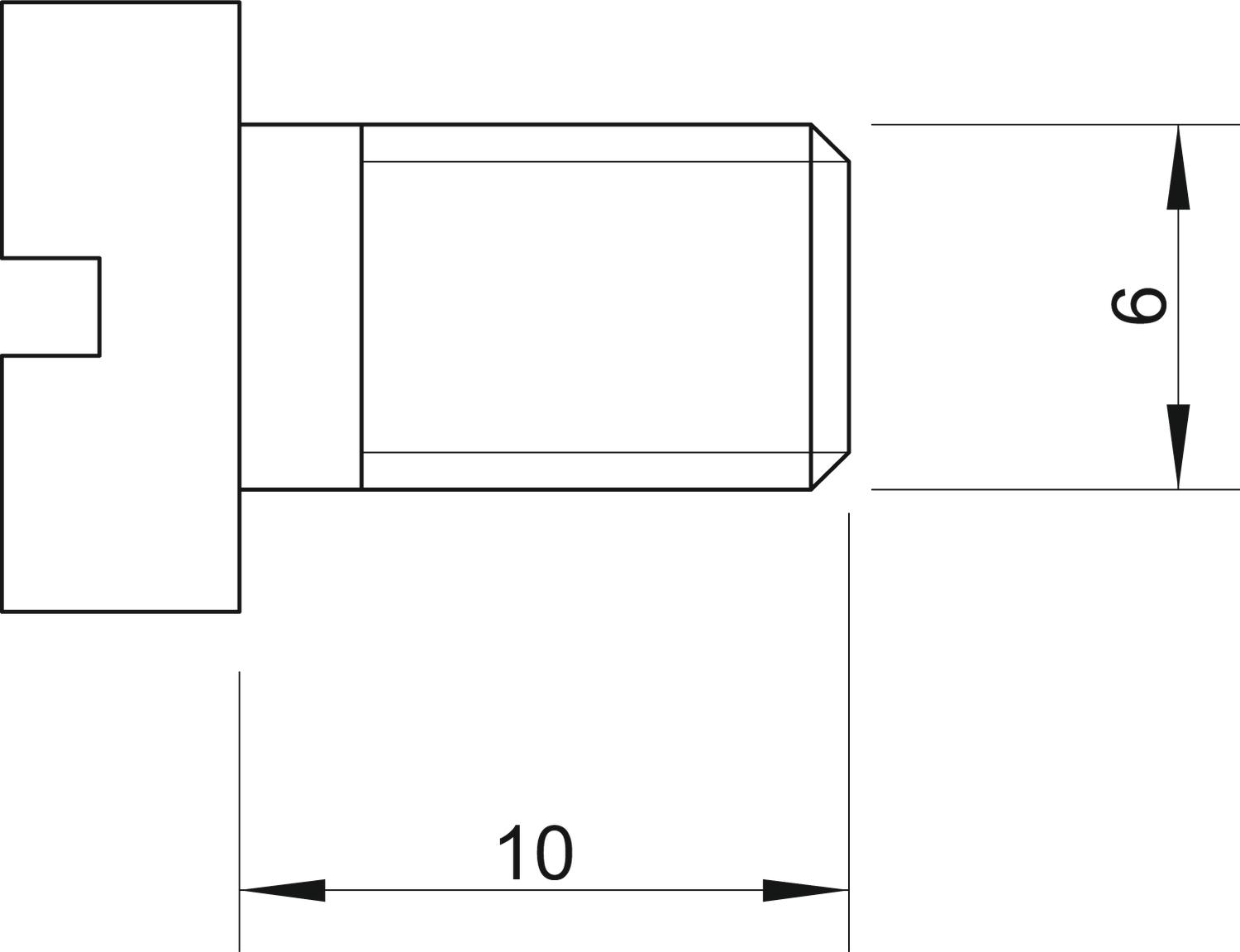

Dimension M6 x 10
Dimension M6x10mm
Length 10 mm
Material Steel
Screw system Screw slot
Surface Electrogalvanized
Thread M6
Thread metric 6
All types

All types

Types Length Thread Item no. Quantity SSU
341 M6x10 G 10 mm M6 3153096
100 piece
341 M6x16 G 16 mm M6 3153150
100 piece
341 M6x20 G 20 mm M6 3153207
100 piece
