Data cable protection device for coaxial TV/camera systems 1 | Fine protection | | 6 | BNC

Data cable protection device for coaxial TV/camera systems

Item no. 5082434 | EAN 4012196415731

Item no. / Types	5082434 / KOAX B-E2 FF-F

Number of poles	1

Version for	Fine protection

Maximum continuous voltage DC	6 V

Plug-in system	BNC

Product description

Product description

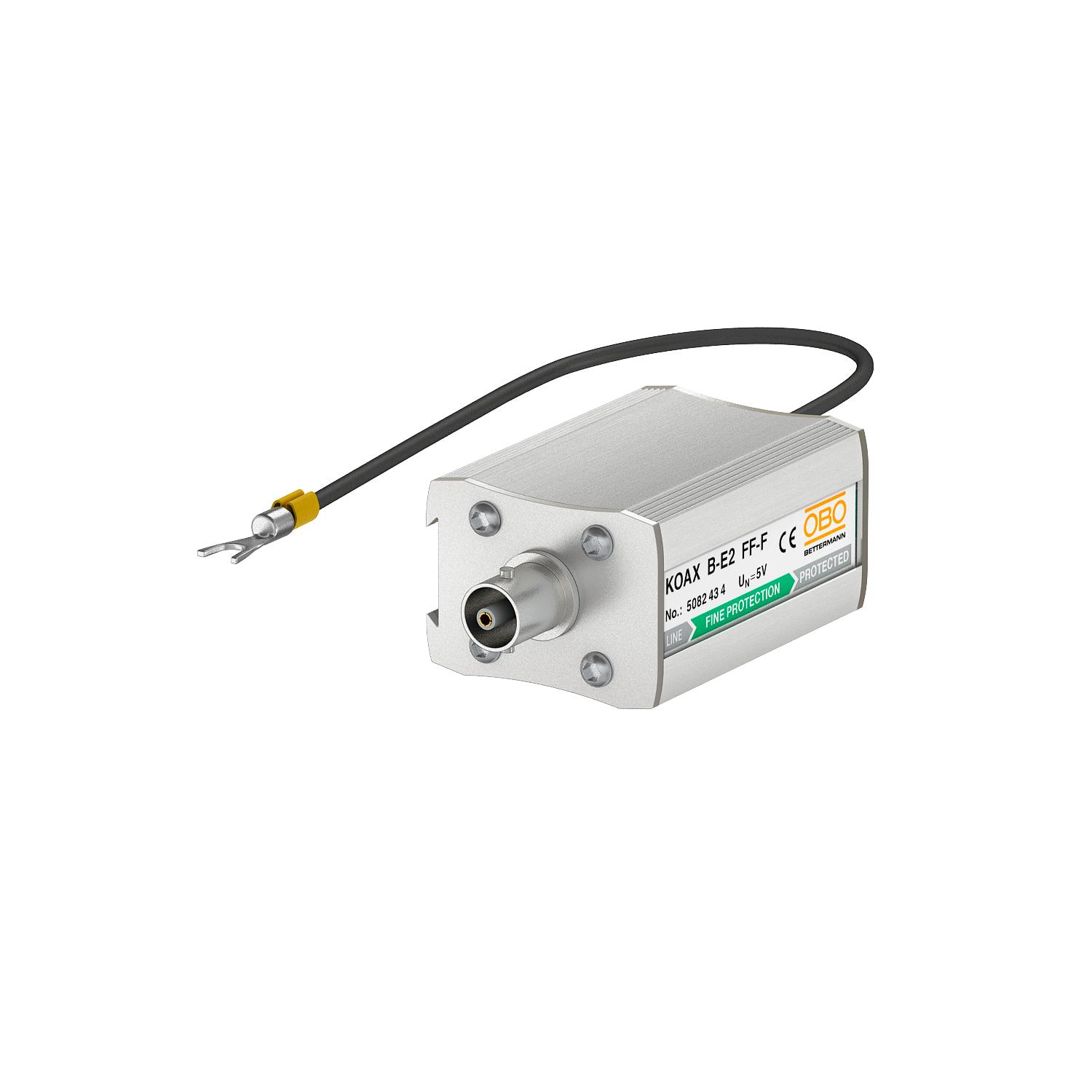

Data cable protection device for coaxial TV/camera systems

• In aluminium housing

• BNC connector socket/socket

• Simple mounting with adapter plug

• Two-stage protection circuit

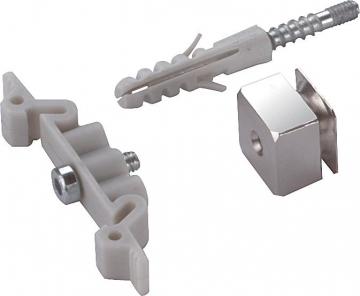

• DIN rail mounting with DLS-BS accessories (5082 38 2)

Application: Protection of CCTV, video signals; cameras and/or TV systems
• Usable in CCTV and diverse TV systems
• Optimised transmission properties
• Can be locked onto hat profile rail
• Simple connection technology

Technical data

Technical data

Cable type for surge protection devices	Data cable COAX
Capacity (wire-earth)	<100 pF
Capacity (wire-wire)	<100 pF
Cut-off frequency	160 MHz

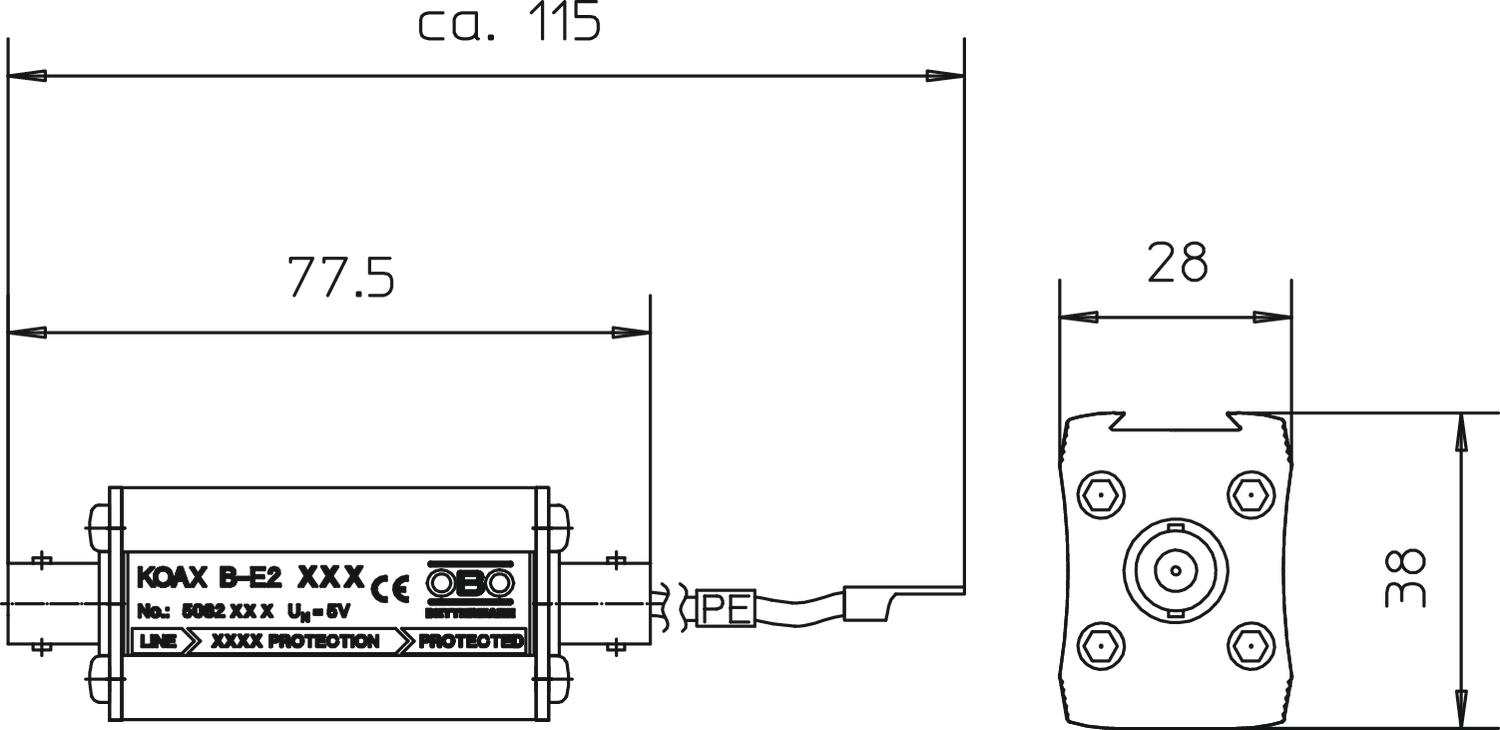

Dimension	6.2V
Earthing via:	Connection cable
Explosion-tested version	no
Impulse durability wire-earth	C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire	C1: 1 kV / 0,5 kA (8/20µs)
Insertion loss	≤1,7 dB
Insulation resistance	>1 GΩ
Kategorie	Type 2+3 / C2+C1
Lightning protection zone LPZ	1→3
Maximum continuous voltage AC	4,2 V
Maximum continuous voltage DC	6 V
Nominal load current AC	0,7 A
Nominal load current DC	1 A

Number of poles	1
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Plug-in system	BNC
Protection level wire-earth	<600 V
Protection level wire-wire	<40 V
Protection rating	IP40
Return loss	≥14 dB
Screening	Direct
Shielding connection available	yes
SPD to IEC 61643-21	Class II+III / C2+C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (8/20)	10 kA
Version for	Fine protection
Wave resistance	75 Ω
