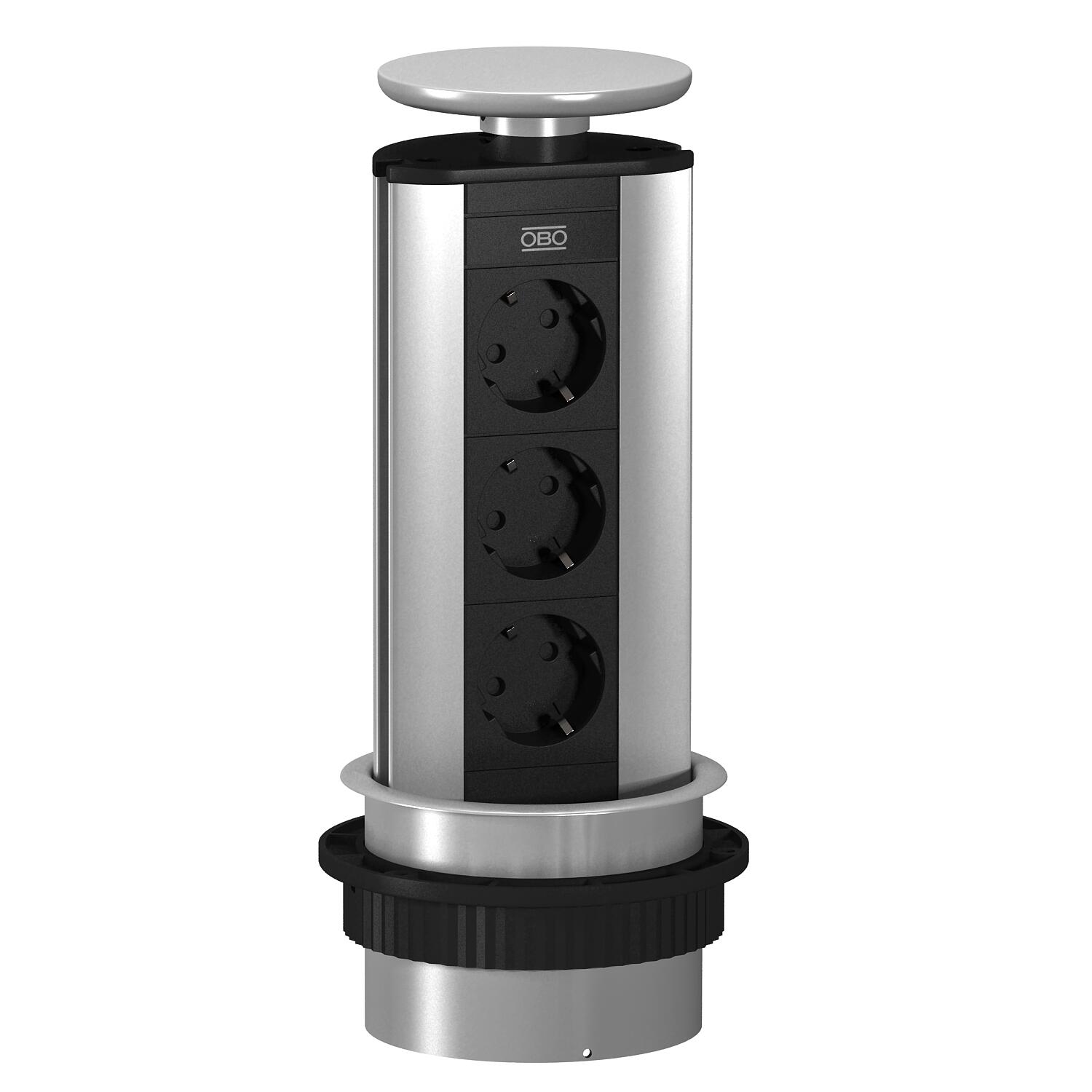

Deskbox DBV, 3 sockets
Item no. 6116862 | EAN 4012195875376
- Product description
-
Product description
Lowerable Deskbox with connection cable for fixed installation on a tabletop, plastic fastening sleeve, painted accordingly in cover shade. It is mounted using a drill hole (Ø102 mm) in the tabletop.
Equipment:
- Three black protection contact sockets in 60° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7.
Note: Can be used in tabletops of up to 50 mm thickness.
The ready-for-connection type DBV Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data

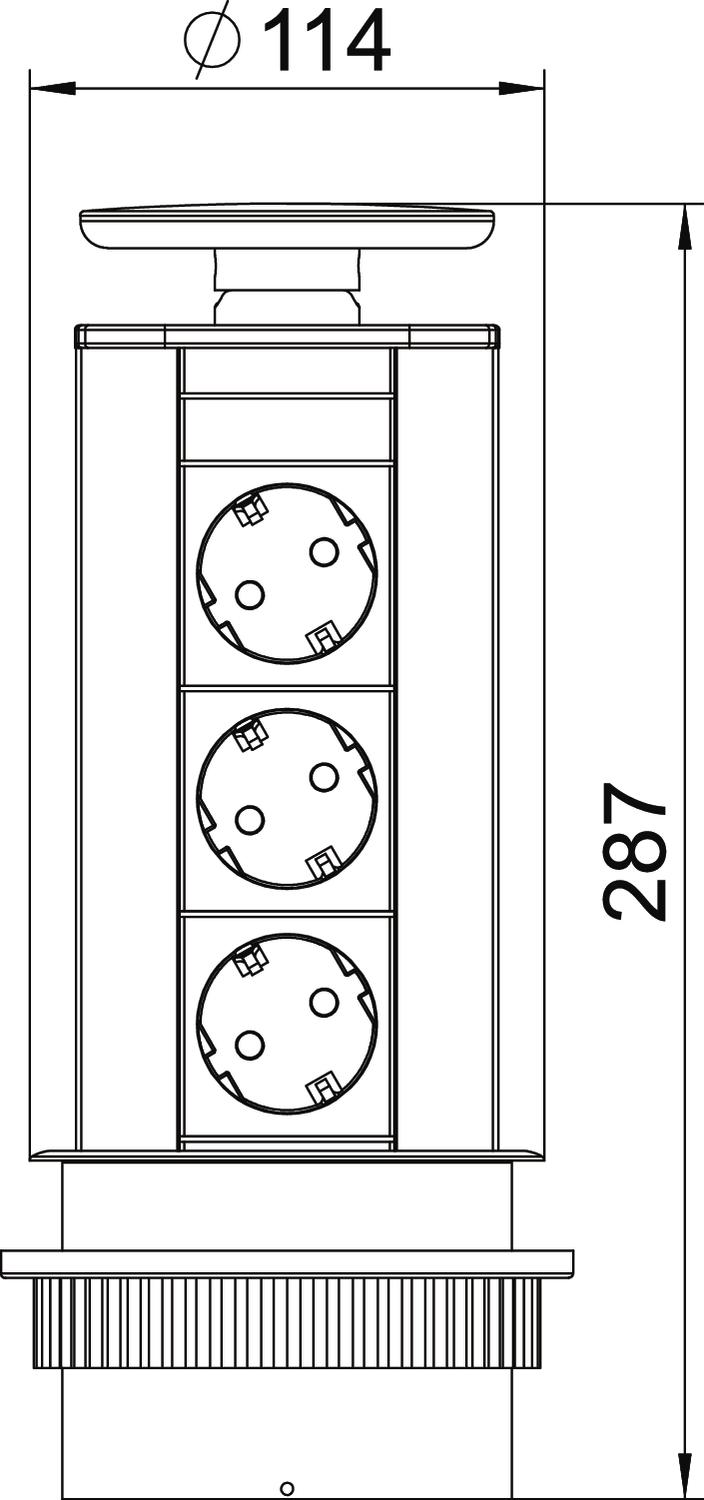

Colour Aluminium Extendable yes External diameter 114 mm Foldable no Length 287 mm Length of the supply cable 3 m Material Aluminium Number of SCHUKO sockets 3 Surface Anodised Surge protection no Version for Lid, painted silver - All types
- Downloads
-
Data sheet DBV-A3A D3S / 6116862 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity DBV-A3A D3S / 6116862 , 0.06MB , pdfMounting instructions Deskbox DBV , 5.47MB , pdfNo invitation to tender text is available for this product.
