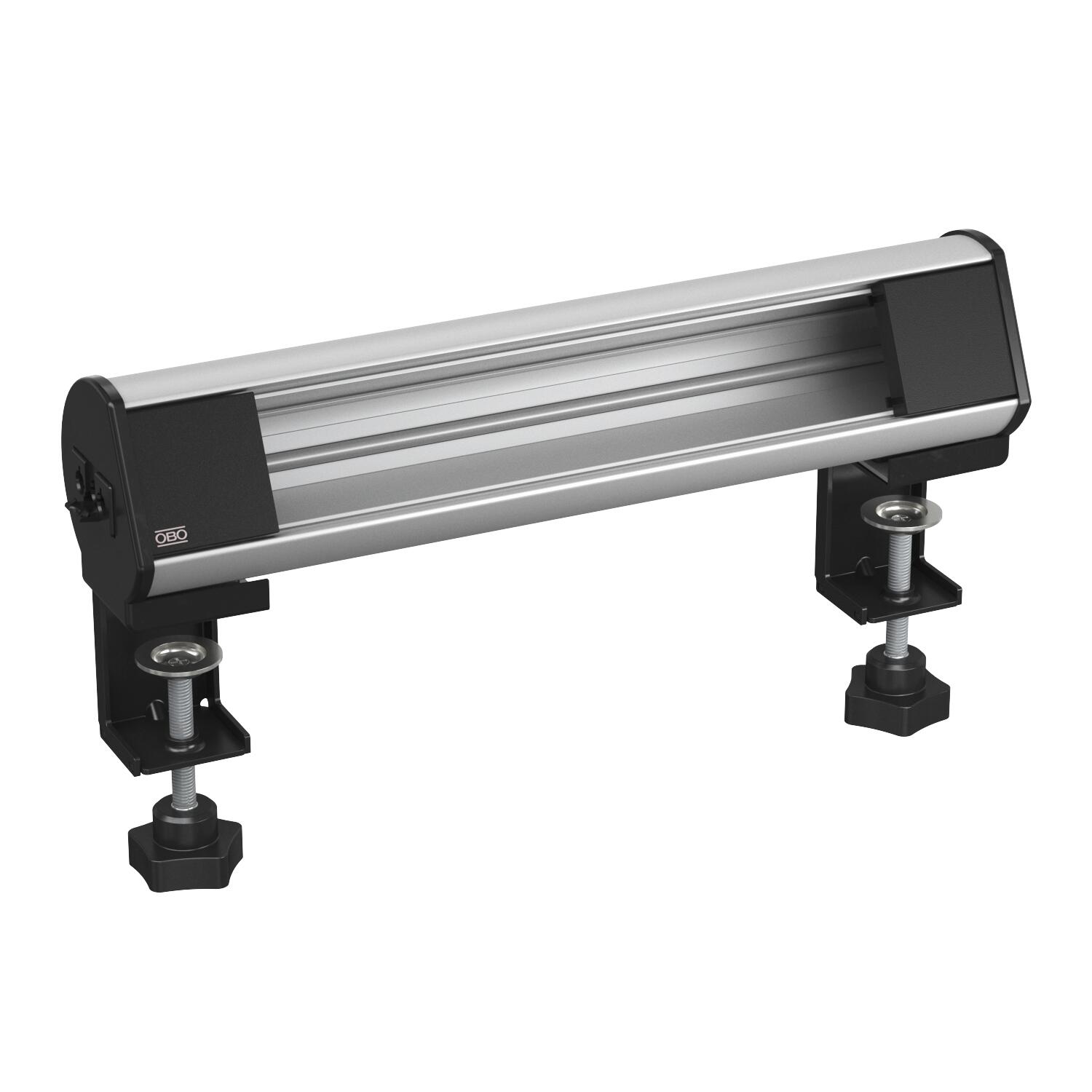

Deskbox with fastening clamp, unequipped
Item no. 6116760 | EAN 4012197333201
- Product description
-
Product descriptionReady-for-connection Deskbox DBL for the direct supply of workstations with power. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is not equipped and can be equipped with up to 5 installation devices of type Modul 45®.
-
- Technical data
-
Technical data

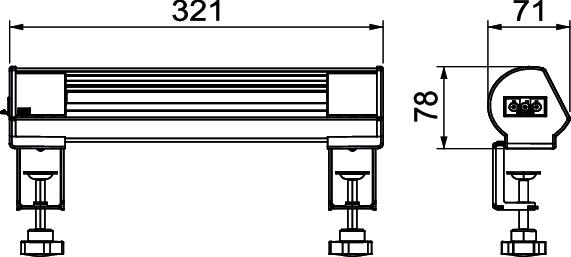

Colour aluminium Dimension 325x71x78 Extendable no Foldable no Height 59 mm Length 145 mm Material Aluminium Surface Anodised Surge protection no Width 183 mm - All types
- Downloads
-
Data sheet DBL-1B / 6116760 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity DBL-1B / 6116760 , 0.13MB , pdfRoHS Declaration of conformity DBL-1B / 6116760 , 0.13MB , pdfMounting instructions Deskbox DBL empty , 0.51MB , pdfMounting instructions Multimedia support/Data technology support MTG.../DTG.... , 0.29MB , pdf
