Device connection lid, branch trunking 800 | 150 | 40
morepic-1 morepic-2

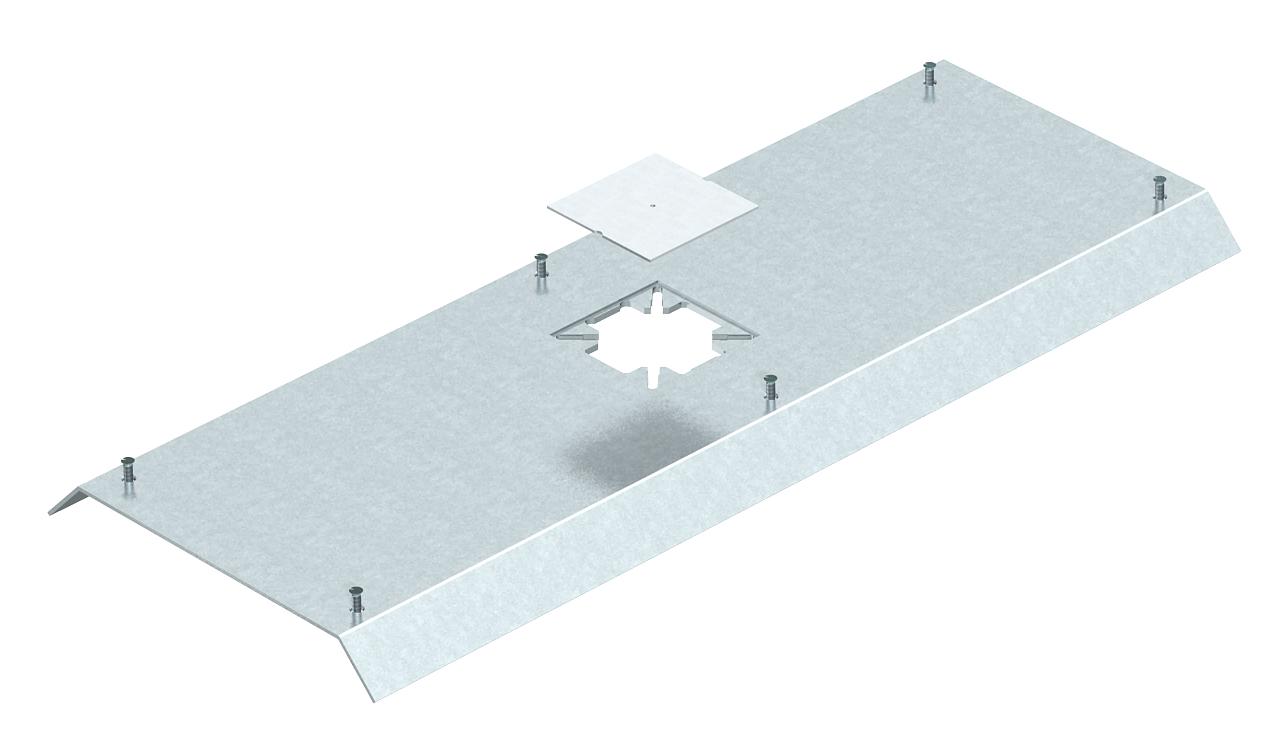

Device connection lid, branch trunking

Item no. 7404852 | EAN 4012195101277

800 mm
40 mm
Product description

Product description

Mounting lid for AIKA/U junction trunking base for Telitank set-up. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle on both sides.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Function Miscellaneous
Material Steel
Mounting opening Square
Surface Strip galvanized
Version for Cover sloping on one side
With connection opening no
With overhang yes

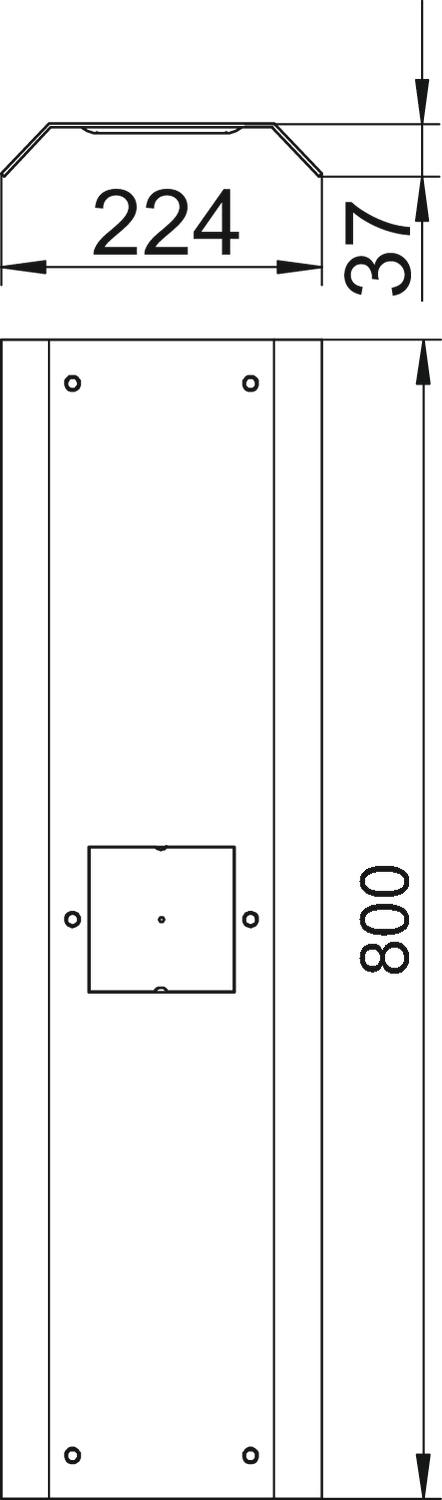

Dimensions

Dimension b 224 mm
Dimension h 37 mm
Height 40 mm
Length 800 mm
Width 150 mm
All types

All types

Types Length Width Height Item no. Quantity SSU
AIKA DAT 15040 800 mm 150 mm 40 mm 7404852
1 piece
AIKA DAT 25040 800 mm 250 mm 40 mm 7404860
1 piece
