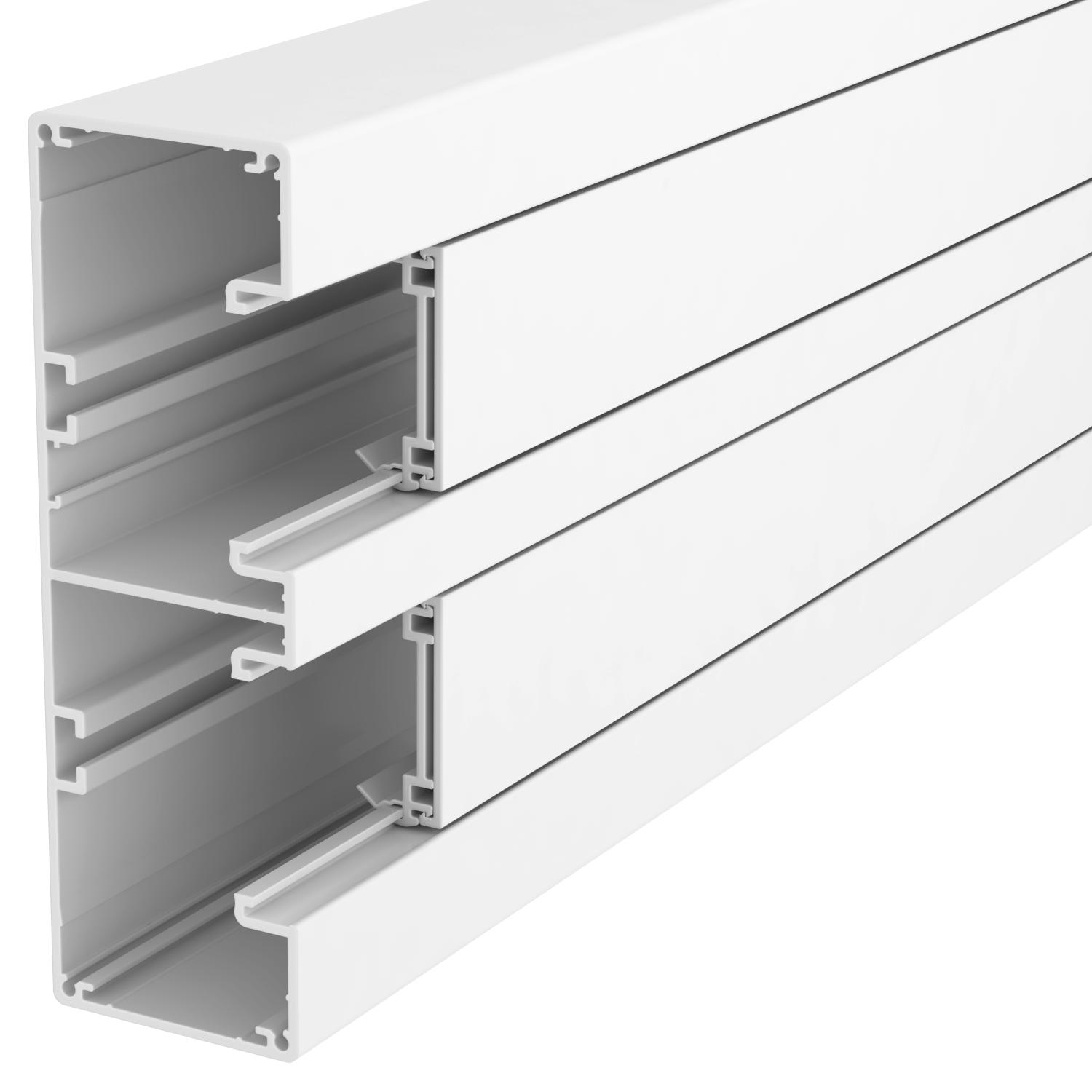

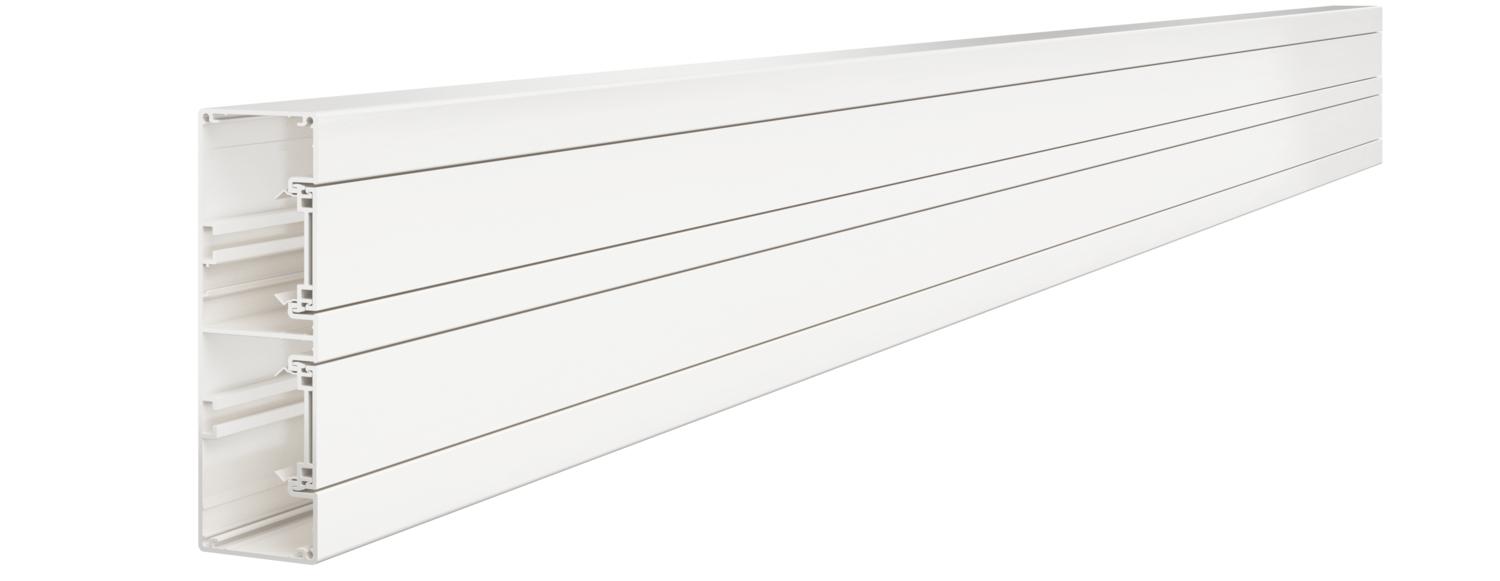

Device installation trunking Rapid 45-2, trunking width 165, trunking height 53
Item no. 6112600 | EAN 4012196418503
- Product description
-
Product description
Aluminium device installation trunking complete with bottom and top part. The lower part is without base perforation.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Internal Cover supplied yes Cover width 45 mm Cover width 2 45 mm Dimension 53x165x2000 Duct connector no Halogen-free yes Material Aluminium Mounting perforation in base no Number of covers 2 Number of insertable partitions 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Rear panel version (inner side) Continuous C profile Rectangular shape yes Symmetrical yes Usable cross-section 6600 mm² Dimensions

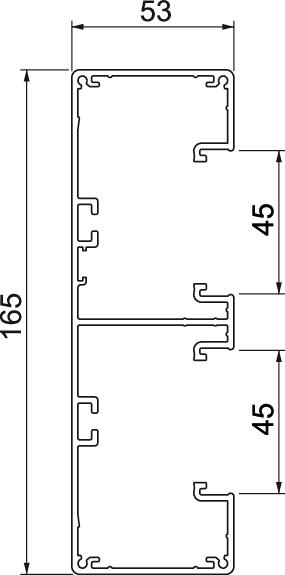

Height 53 mm Length 2000 mm Width 165 mm - All types
- Downloads
-
Data sheet GA-53165RW / 6112600 , 0.27MB , pdfDeclaration of conformity GA-53165RW / 6112600 , 0.13MB , pdfUK Declaration of Conformity GA-53165RW / 6112600 , 0.14MB , pdfREACH Declaration of conformity GA-53165RW / 6112600 , 0.12MB , pdfRoHS Declaration of conformity GA-53165RW / 6112600 , 0.12MB , pdfLabel approval VDE symbol approval, Rapid 45-2 GA , 0.20MB , pdfNo invitation to tender text is available for this product.
