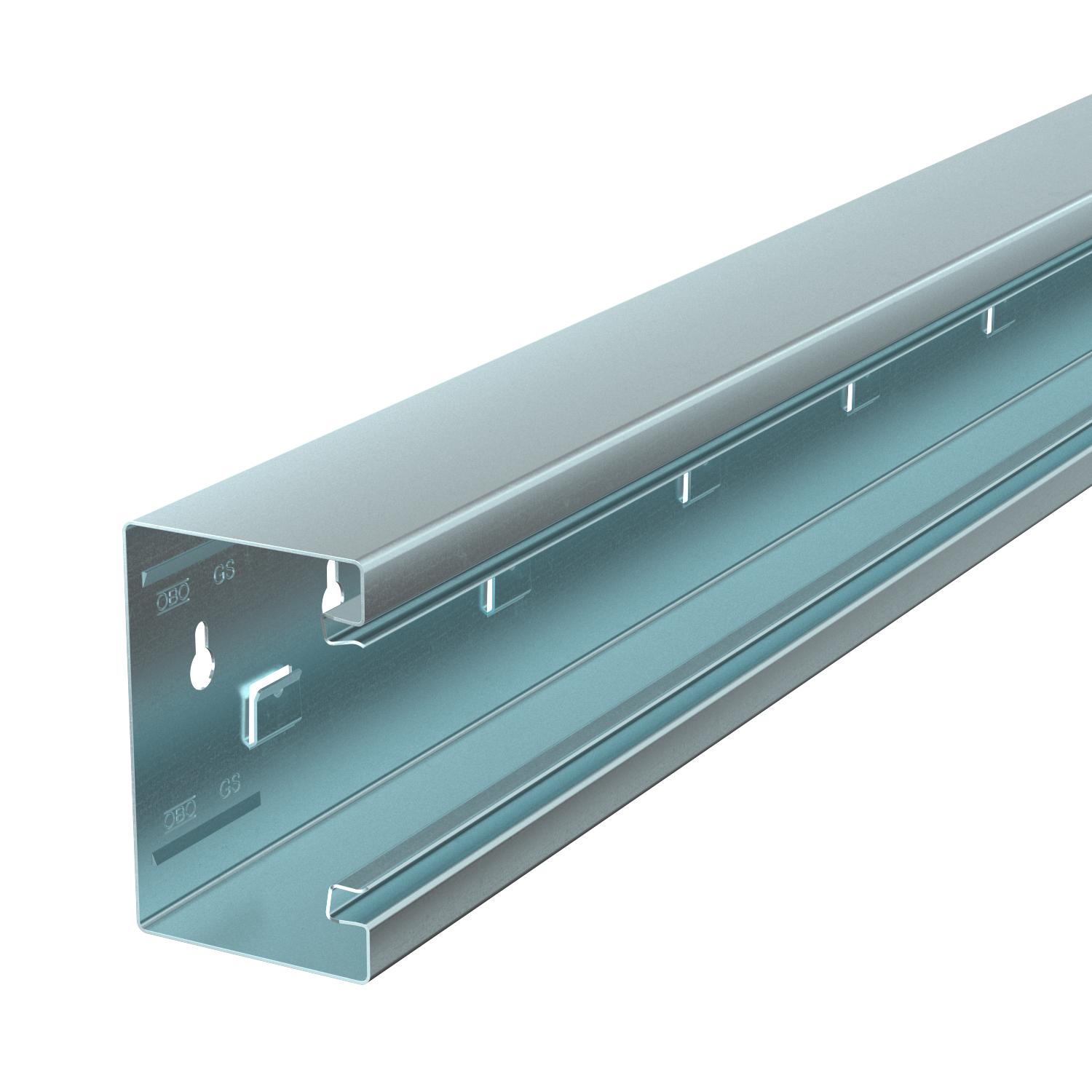

Device installation trunking Rapid 80, trunking width 110, trunking height 70, symmetrical
Item no. 6277003 | EAN 4012195658788
- Product description
-
Product description
GS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening is 76.5 mm. The cover must be ordered separately.
Over-lengths up to 3000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.
-
- Technical data
-
Technical data

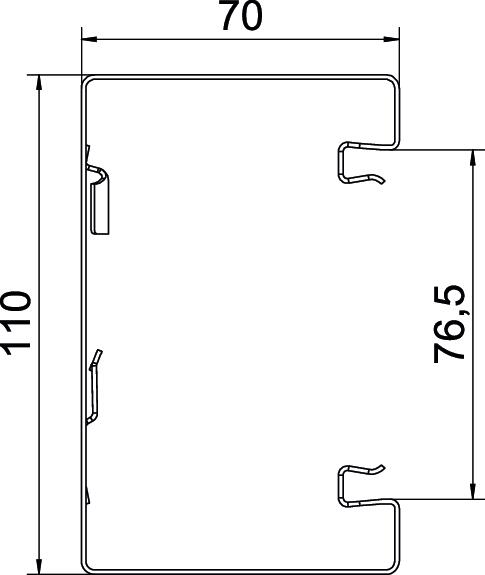

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Cover mounting type Internal Cover supplied no Cover width 76,5 mm Dimension 70x110x2000 Duct connector no Halogen-free yes Material Steel Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Rear panel version (inner side) With locking lugs Rectangular shape yes Surface Strip galvanized Symmetrical yes Usable cross-section 6036 mm² Dimensions
Height 70 mm Length 2000 mm Width 110 mm - All types
- Downloads
-
Data sheet GS-S70110FS / 6277003 , 0.32MB , pdfDeclaration of conformity GS-S70110FS / 6277003 , 0.13MB , pdfUK Declaration of Conformity GS-S70110FS / 6277003 , 0.14MB , pdfREACH Declaration of conformity GS-S70110FS / 6277003 , 0.12MB , pdfRoHS Declaration of conformity GS-S70110FS / 6277003 , 0.12MB , pdfNo invitation to tender text is available for this product.
