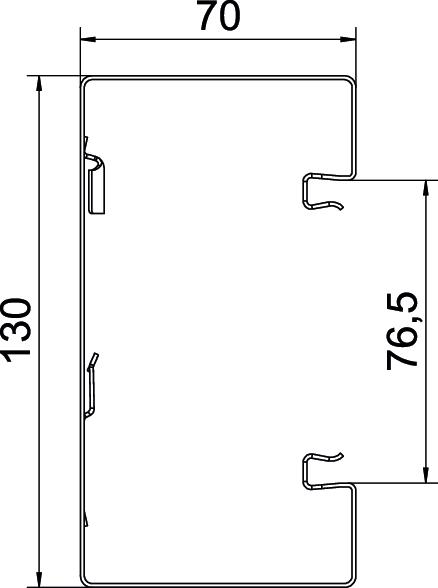

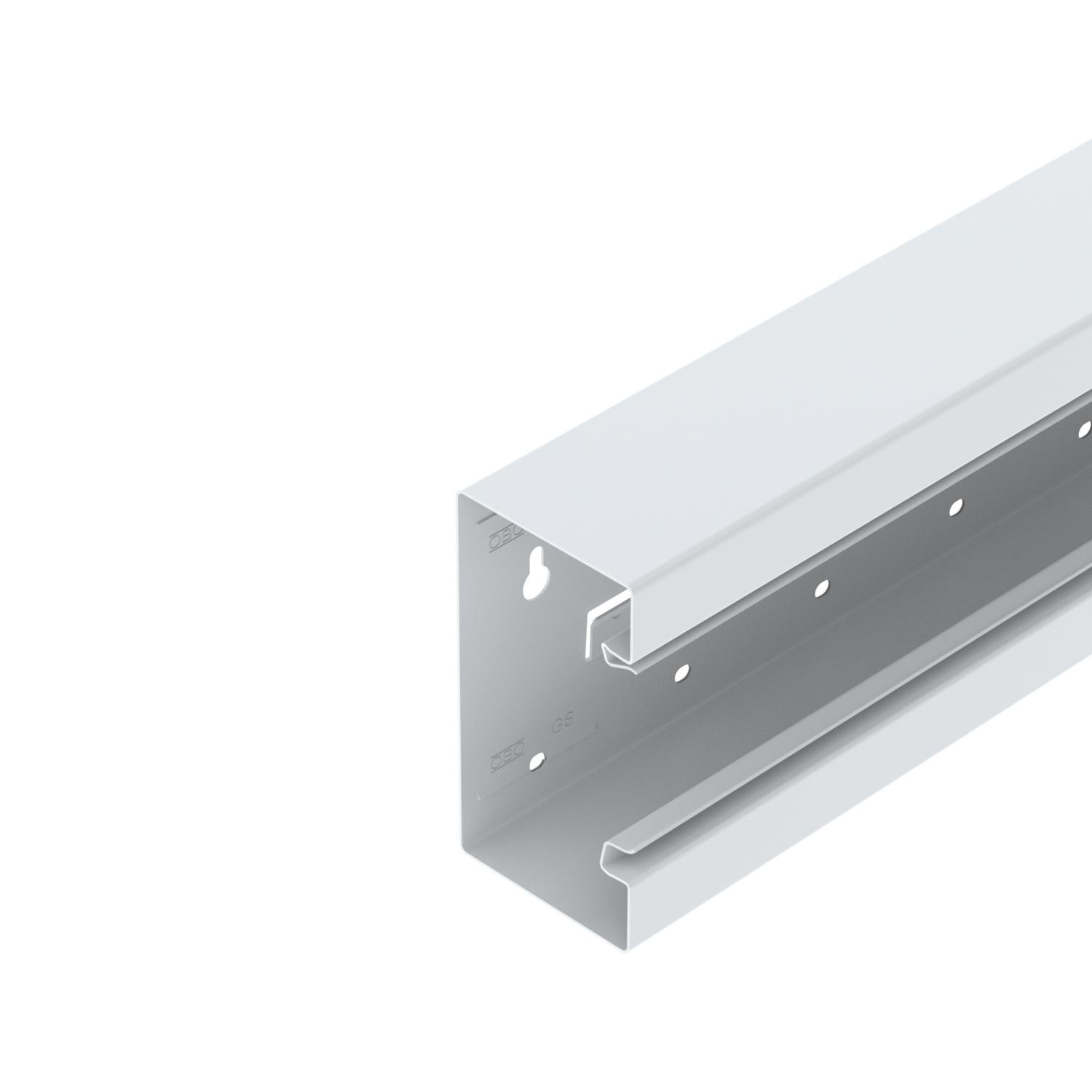

Device installation trunking Rapid 80, trunking width 130, trunking height 70, symmetrical
Item no. 6277200 | EAN 4012195660002
- Product description
-
Product description
GS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening is 76.5 mm. The cover must be ordered separately.
Over-lengths of up to 3,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.
-
- Technical data
-
Technical data
Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Internal Cover supplied no Cover width 76,5 mm Dimension 70x130x2000 Duct connector no Halogen-free yes Material Steel Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Rear panel version (inner side) With locking lugs Rectangular shape yes Symmetrical yes Usable cross-section 7480 mm² Dimensions
Height 70 mm Length 2000 mm Width 130 mm - All types
-
System accessories
- Downloads
-
Data sheet GS-S70130RW / 6277200 , 0.24MB , pdfDeclaration of conformity GS-S70130RW / 6277200 , 0.13MB , pdfUK Declaration of Conformity GS-S70130RW / 6277200 , 0.14MB , pdfREACH Declaration of conformity GS-S70130RW / 6277200 , 0.12MB , pdfRoHS Declaration of conformity GS-S70130RW / 6277200 , 0.12MB , pdfNo invitation to tender text is available for this product.
Coupling GS-KUP70
Accessory mounting box 71GD6, single
Accessory mounting box 71GD7-2, double
7ZE strain relief
Trunking cover, sheet steel
Locking bracket RKV3V

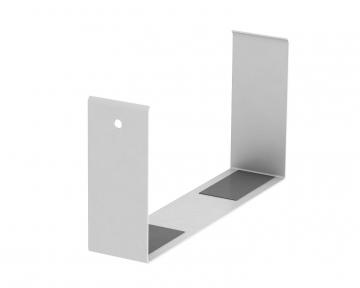

Joint cover, trunking height 70 mm

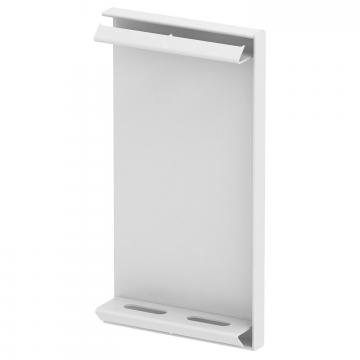

End piece, for device installation trunking Rapid 80 type GS-70130
Partition GS-TW70

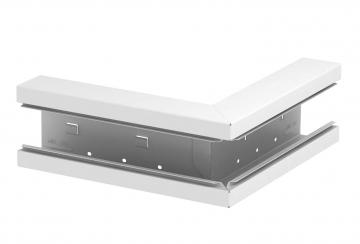

External corner, symmetrical, for device installation trunking Rapid 80 type GS-S70130
Sheet steel external corner cover

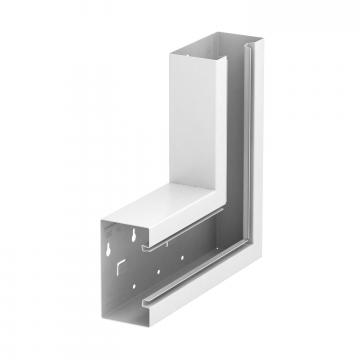

Flat angle, symmetrical, for device installation trunking Rapid 80 type GS-S70130
Sheet steel flat angle cover

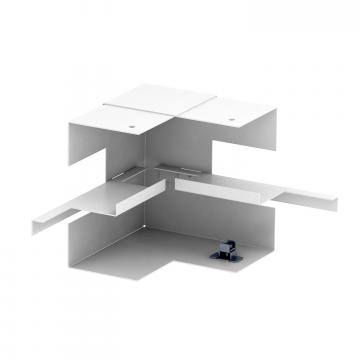

Internal corner, symmetrical, for device installation trunking Rapid 80 type GS-S70130
T piece, symmetrical, for device installation trunking Rapid 80 type GS-S70130
Duct clamp KL80A
Protective conductor connection bracket
AR45 socket unit, double

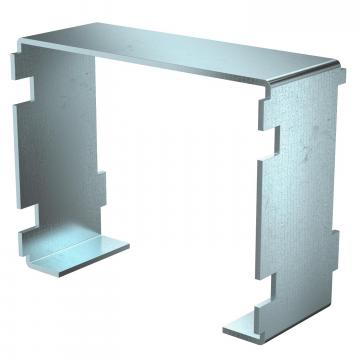

Calyx
