Device installation trunking Rapid 80, trunking width 170, trunking height 70, asymmetrical 2000

Device installation trunking Rapid 80, trunking width 170, trunking height 70, asymmetrical

Item no. 6277800 | EAN 4012195662945

Item no. / Types

Length

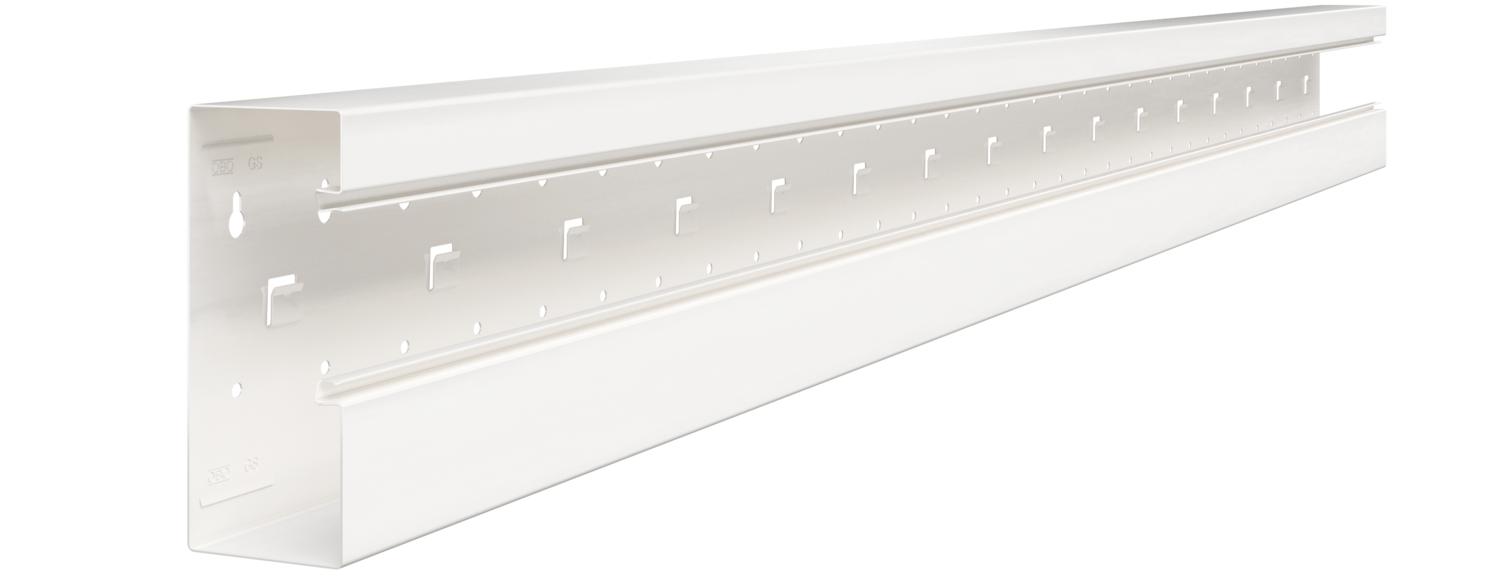

Product description

Product description

GS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening is 76.5 mm. The cover must be ordered separately.

Overlengths up to 3,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	76,5 mm
Dimension	70x170x2000
Duct connector	no
Halogen-free	yes
Material	Steel
Mounting perforation in base	yes

Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	yes
Rear panel version (inner side)	With locking lugs
Rectangular shape	yes
Symmetrical	no
Usable cross-section	10010 mm²

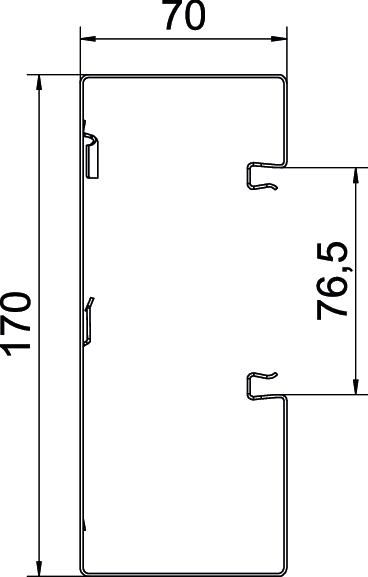

Dimensions

Height	70 mm
Length	2000 mm

Width	170 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
GS-A70170RW	2000 mm	6277800	m	2 m
GS-A70170RW	3000 mm	6277807	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Coupling GS-KUP70	GS-KUP70	6277290	PU	1 PU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
7ZE strain relief	7ZE	6288790	piece	50 piece
Trunking cover, sheet steel	GS-OTRW	6279850	m	2 m
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
Joint cover, trunking height 70 mm	G-SVS70170RW	6279768	piece	1 piece
End piece, for device installation trunking Rapid 80 type GS-70170	GS-E70170RW	6277670	piece	1 piece
Partition GS-TW70	GS-TW70	6277090	m	2 m

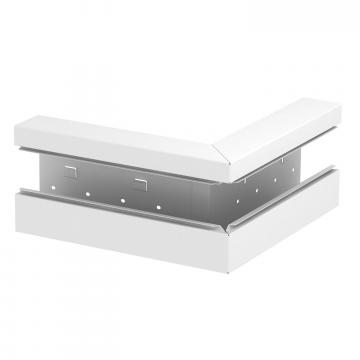

External corner, asymmetrical, for device installation trunking Rapid 80 type GS-A70170	GS-AA70170RW	6277810	piece	1 piece
Sheet steel external corner cover	GS-OTARW	6279870	piece	1 piece

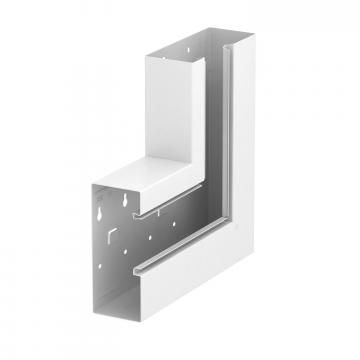

Flat angle, asymmetrical, rising, for device installation trunking Rapid 80 type GS-A70170	GS-AFS70170RW	6277820	piece	1 piece

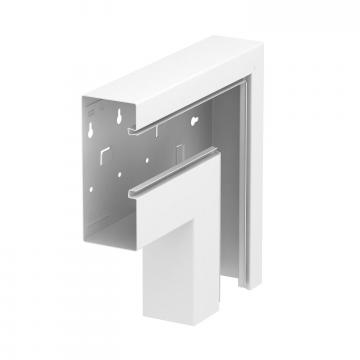

Flat angle, asymmetrical, falling, for device installation trunking Rapid 80 type GS-A70170	GS-AFF70170RW	6277830	piece	1 piece
Sheet steel flat angle cover	GS-OTFRW	6279860	piece	1 piece

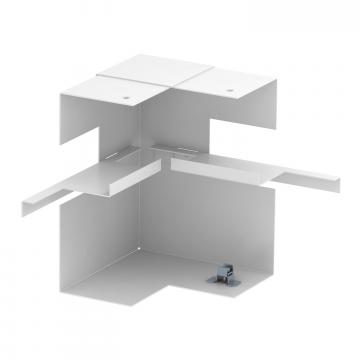

Internal corner, asymmetrical, for device installation trunking Rapid 80 type GS-A70170	GS-AI70170RW	6277840	piece	1 piece

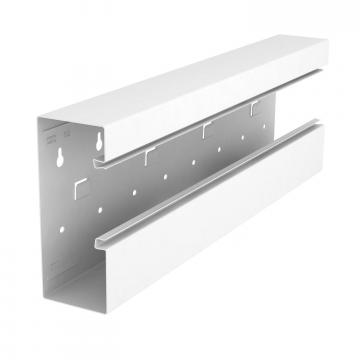

T piece, asymmetrical, for device installation trunking Rapid 80 type GS-A70170	GS-AT70170RW	6277860	piece	1 piece
Duct clamp KL80A	KL80A	6288640	piece	20 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
AR45 socket unit, double	SDE-RW D0RW2	6119407	piece	1 piece

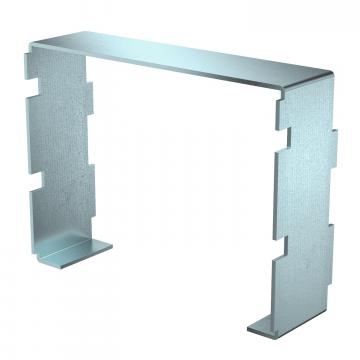

Calyx	SK GS-A70170	6288740	piece	1 piece
