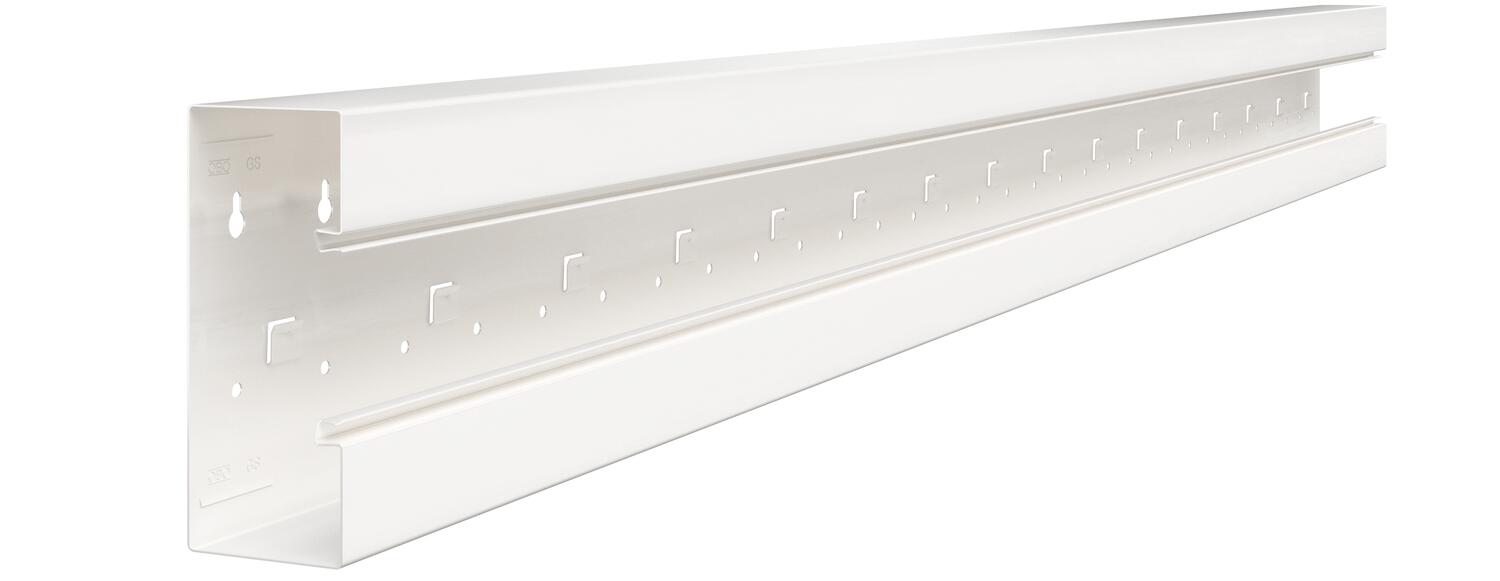

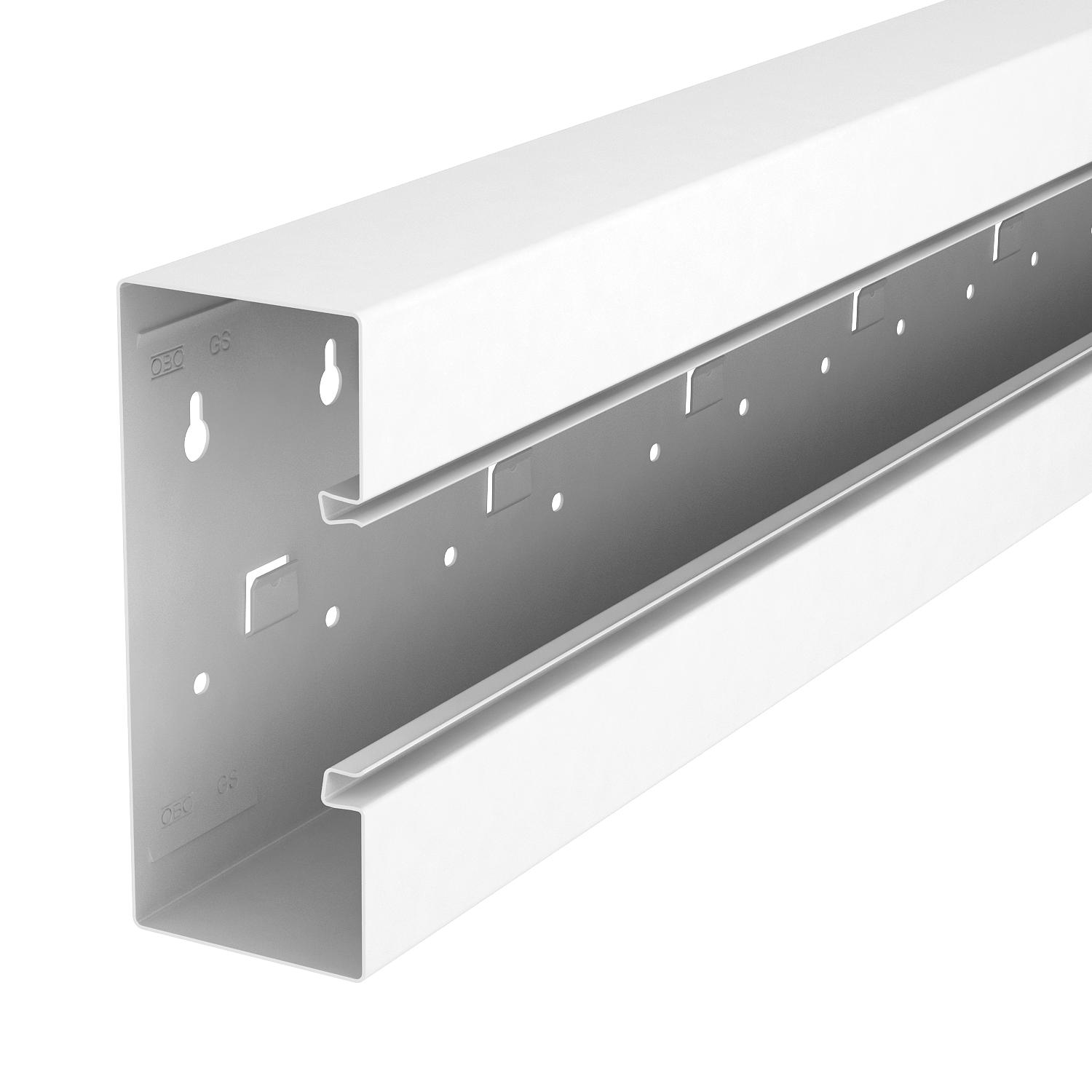

Device installation trunking Rapid 80, trunking width 170, trunking height 70, symmetrical
Item no. 6277607 | EAN 4012195740605
- Product description
-
Product descriptionGS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening is 76.5 mm. The cover must be ordered separately.
Over-lengths of up to 3,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.
-
- Technical data
-
Technical data
Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Internal Cover supplied no Cover width 76,5 mm CO₂ Footprint (GWP) Cradle-to-Gate 8,333 kg CO₂e / 1 Meter Dimension 70x170x3000 Duct connector no Halogen-free yes Height 70 mm Length 3000 mm Material Steel Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Rear panel version (inner side) With locking lugs Rectangular shape yes Symmetrical yes Usable cross-section 10010 mm² Width 170 mm - All types
- Downloads
-
Data sheet GS-S70170RW / 6277607 , 0.19MB , pdfEU declaration of conformity GS-S70170RW / 6277607 , 0.13MB , pdfUK Declaration of Conformity GS-S70170RW / 6277607 , 0.14MB , pdfNo invitation to tender text is available for this product.
