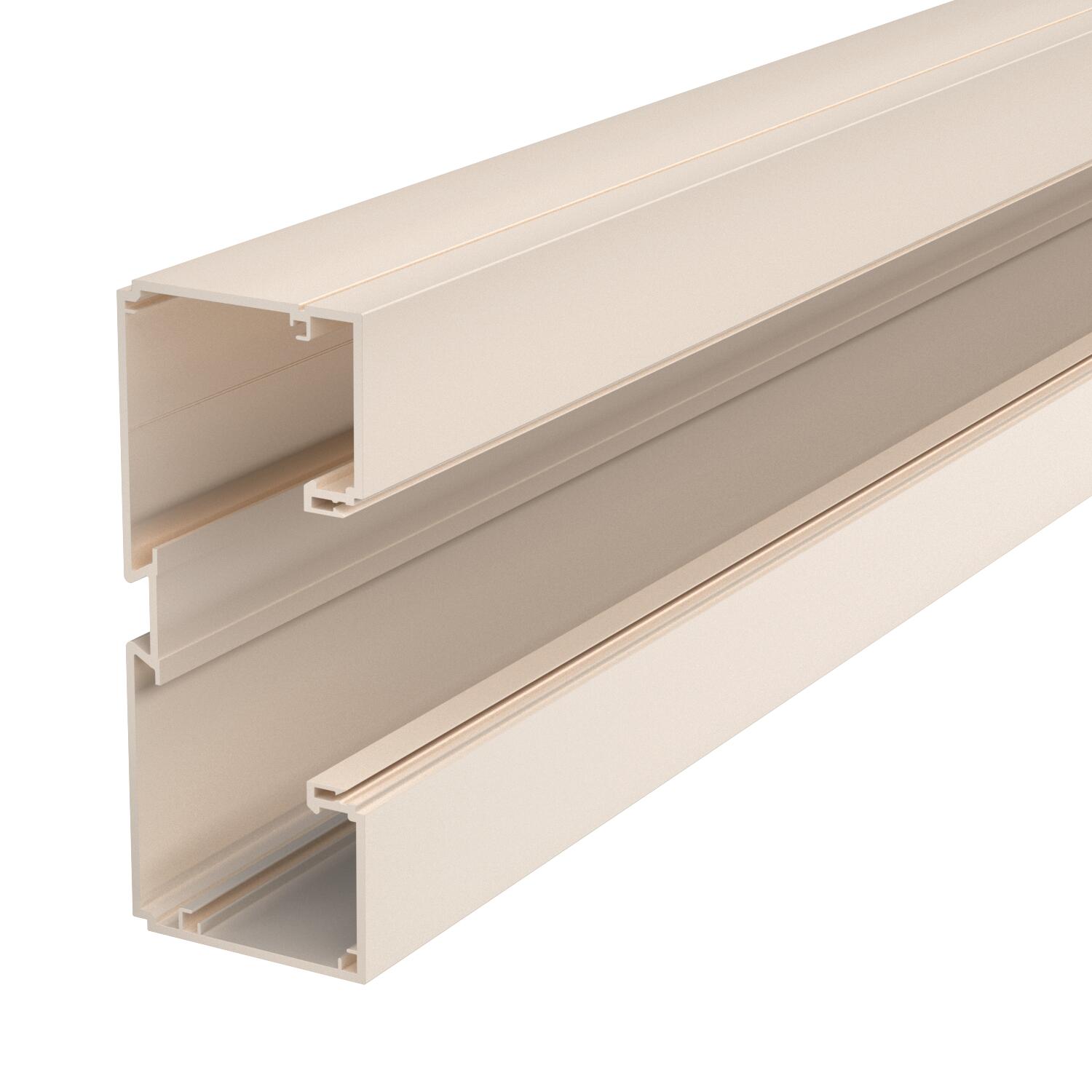

Device installation trunking Signa Base 70170
Item no. 6132730 | EAN 4012196717460
- Product description
-
Product description
Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip yes Colour Cream; RAL 9001 Cover mounting type Internal Cover supplied no Cover width 79 mm Duct connector yes Halogen-free no Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film yes Rear panel version (inner side) Continuous DIN rail Rectangular shape yes Symmetrical no Usable cross-section 10056 mm² Dimensions

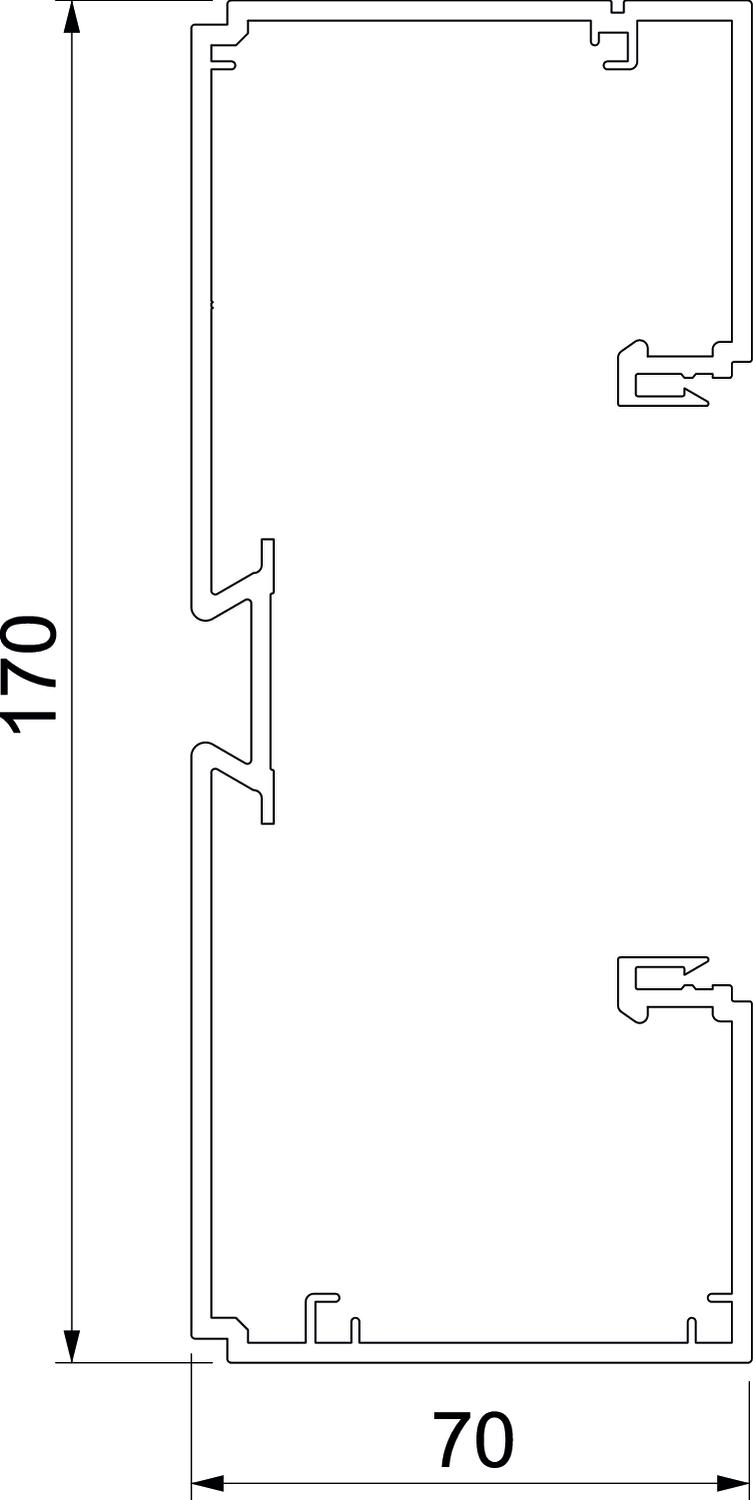

Height 70 mm Length 2000 mm Width 170 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Accessory mounting box BRK GD, single
BRK GD gr 6133577 10 piece
Accessory mounting box BRK GD2CEE, double
BRK GD 2CEE gr 6133579 4 piece
Cover Signa Base OT 700802
BRK 700802 cws 6132735 2 m

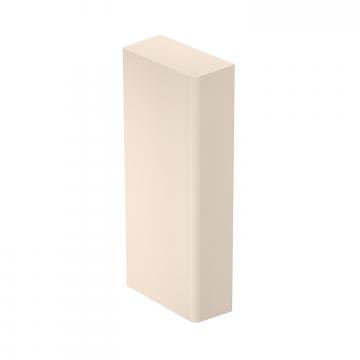

End piece Signa Base ES 70170
BRK ES70170 cws 6132780 1 piece

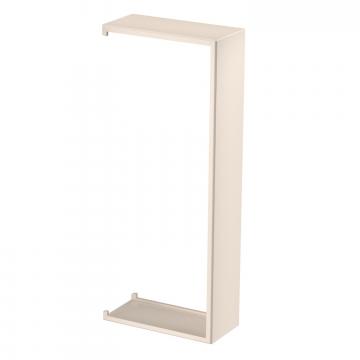

Joint cover Signa Base SSA 70170
BRK SSA70170 cws 6132794 1 piece
Partition BRK TW
BRK TW 6133610 2 m

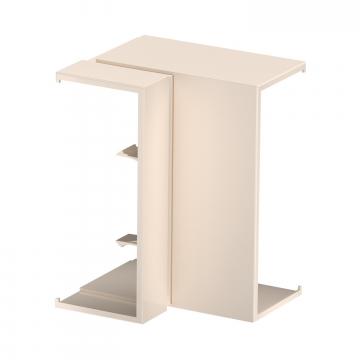

Internal corner Signa Base IE 70170
BRK IE70170 cws 6132755 1 piece

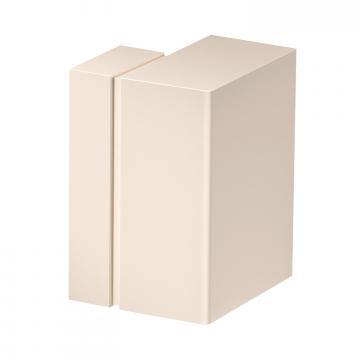

External corner Signa Base AE 70170
BRK AE70170 cws 6132747 1 piece

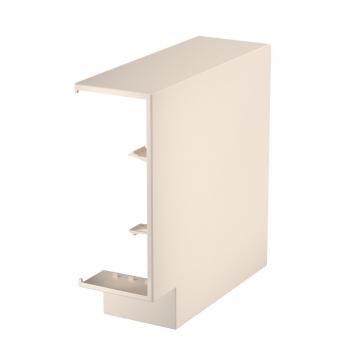

Flat angle Signa Base FW 70170
BRK FW70170 cws 6132769 1 piece
Cable retaining clip Signa Base HK
SB HK 6132799 10 piece
CEE flange BRK CEE FL
BRK CEE FL cws 6121122 1 piece
Data socket BRK GD UAE
BRK GD UAE 6121072 1 piece
Keystone support BRK-Key A45
BRK Key A45 cws 6121082 1 piece - Downloads
-
Data sheet BRK 70170 cws / 6132730 , 0.25MB , pdfDeclaration of conformity BRK 70170 cws / 6132730 , 0.17MB , pdfREACH Declaration of conformity BRK 70170 cws / 6132730 , 0.12MB , pdfRoHS Declaration of conformity BRK 70170 cws / 6132730 , 0.12MB , pdfMounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdfNo invitation to tender text is available for this product.
