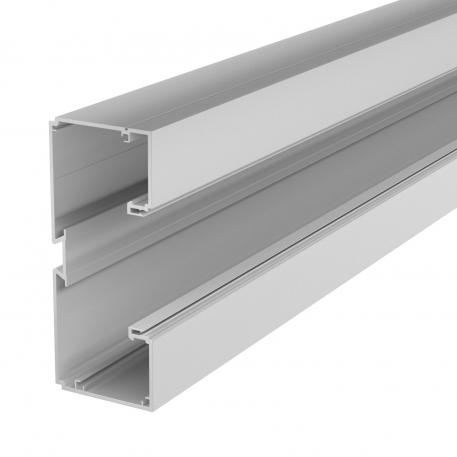

Device installation trunking Signa Base 70170
Item no. 6132732 | EAN 4012196717484
- Product description
-
Product descriptionTrunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.
-
- Technical data
-
Technical data

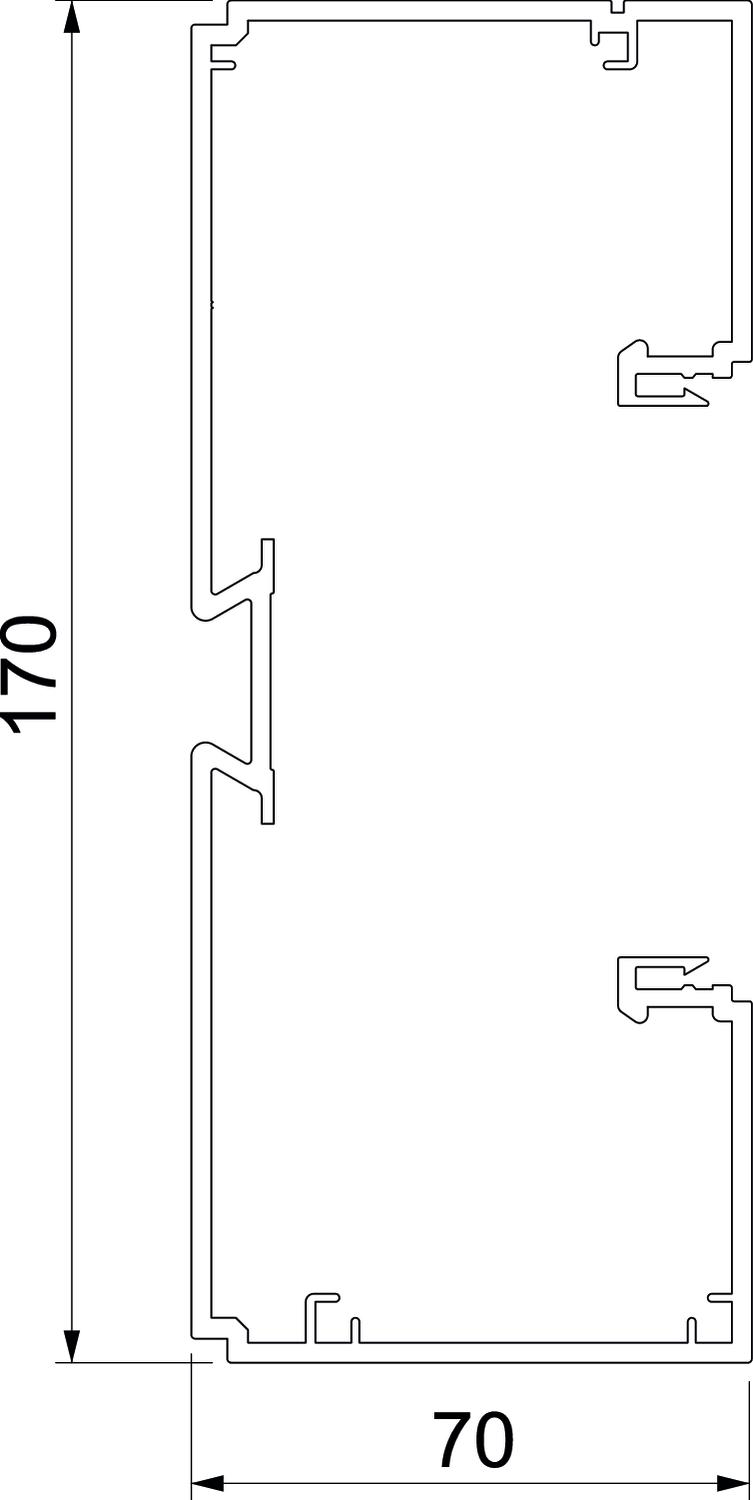

Antibacterial treatment no Cable retaining clip yes Colour Light grey; RAL 7035 Cover mounting type Internal Cover supplied no Cover width 79 mm CO₂ Footprint (GWP) Cradle-to-Gate 2,816 kg CO₂e / 1 Meter Duct connector yes Halogen-free no Height 70 mm Length 2000 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film yes Rear panel version (inner side) Continuous DIN rail Rectangular shape yes Symmetrical no Usable cross-section 10056 mm² Width 170 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Accessory mounting box BRK GD, single
BRK GD gr 6133577 10 piece
Accessory mounting box BRK GD2CEE, double
BRK GD 2CEE gr 6133579 4 piece

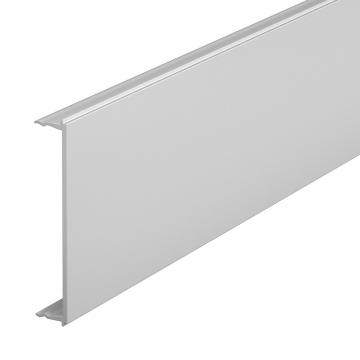

Cover Signa Base OT 700802
BRK 700802 lgr 6132737 32 m

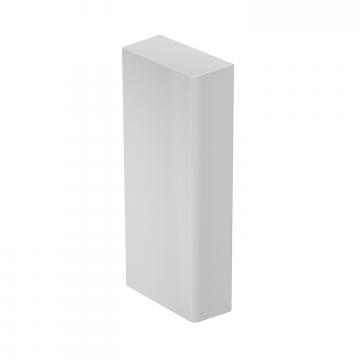

End piece Signa Base ES 70170
BRK ES70170 lgr 6132782 10 piece

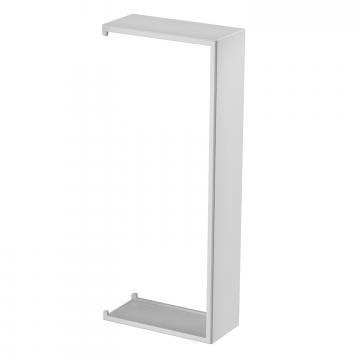

Joint cover Signa Base SSA 70170
BRK SSA70170 lgr 6132796 10 piece
Partition BRK TW
BRK TW 6133610 40 m

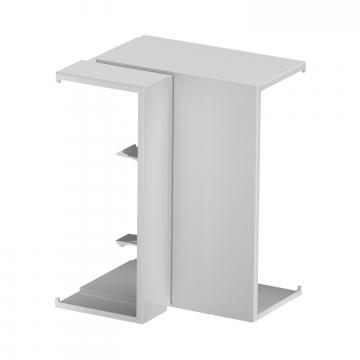

Internal corner Signa Base IE 70170
BRK IE70170 lgr 6132757 1 piece
External corner Signa Base AE 70170
BRK AE70170 lgr 6132749 4 piece

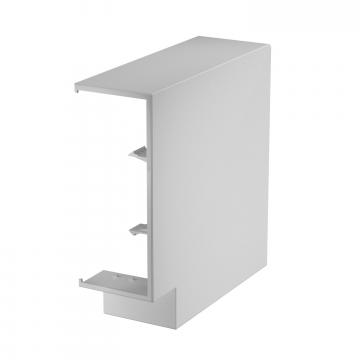

Flat angle Signa Base FW 70170
BRK FW70170 lgr 6132771 10 piece
Cable retaining clip Signa Base HK
SB HK 6132799 120 piece - Downloads
-
