Device installation trunking Signa Base 70170 2000 | Pure white; RAL 9010

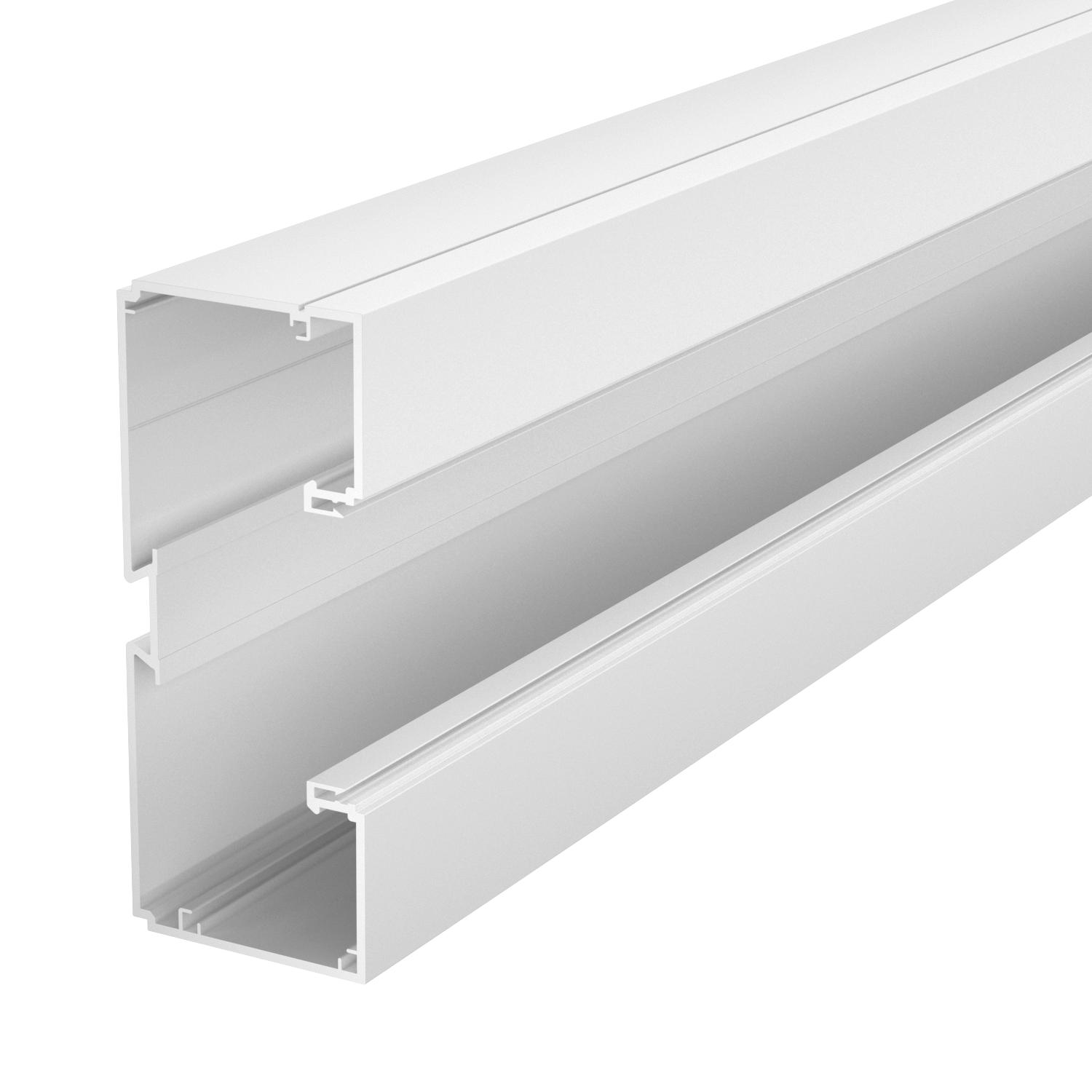

Device installation trunking Signa Base 70170

Item no. 6132731 | EAN 4012196717477

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	79 mm
Duct connector	yes
Halogen-free	no
Material	Polyvinylchloride
Mounting perforation in base	yes
Number of covers	1

Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	yes
Rear panel version (inner side)	Continuous DIN rail
Rectangular shape	yes
Symmetrical	no
Usable cross-section	10056 mm²

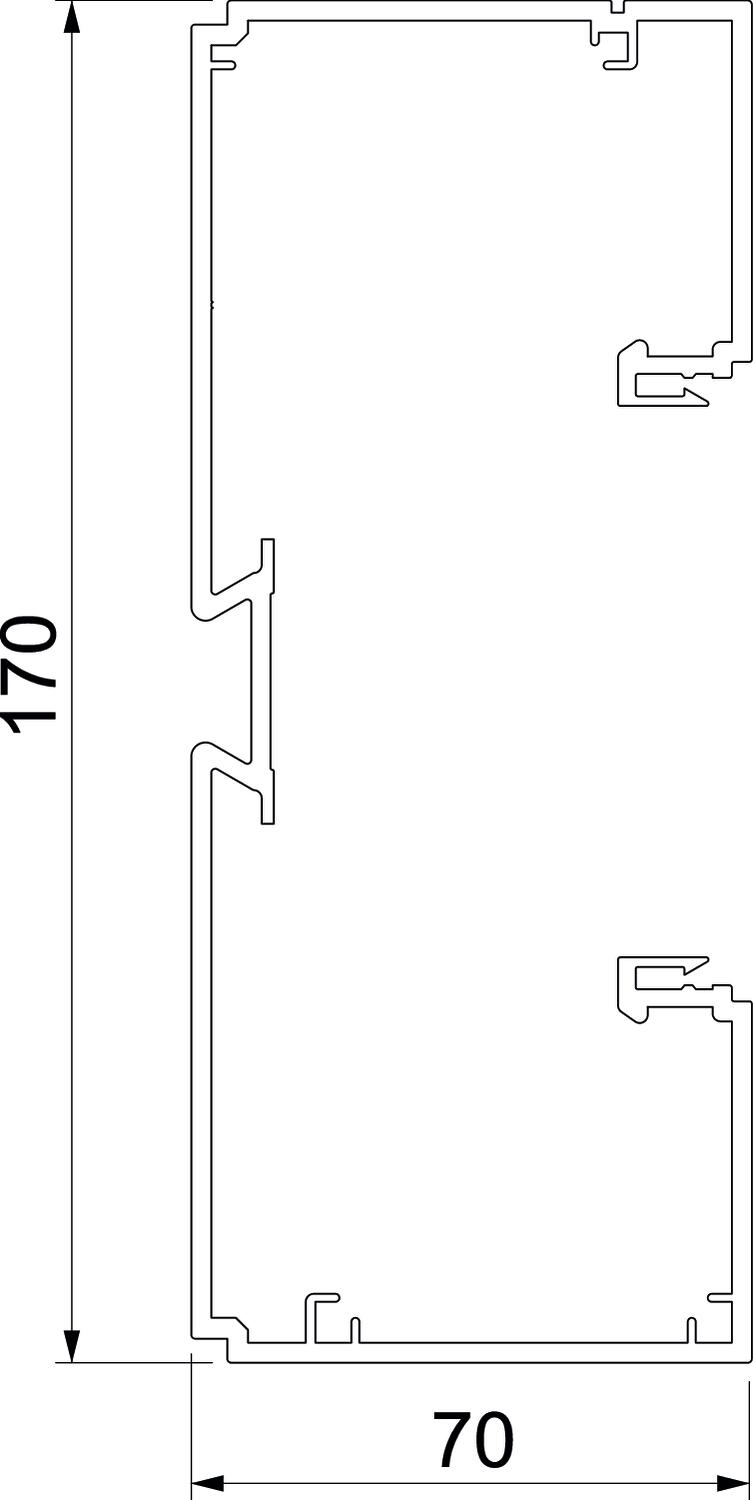

Dimensions

Height	70 mm
Length	2000 mm

Width	170 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
BRK 70170 cws	2000 mm	Cream; RAL 9001	6132730	m	2 m
BRK 70170 rws	2000 mm	Pure white; RAL 9010	6132731	m	2 m
BRK 70170 lgr	2000 mm	Light grey; RAL 7035	6132732	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box BRK GD, single	BRK GD gr	6133577	piece	10 piece
Accessory mounting box BRK GD2CEE, double	BRK GD 2CEE gr	6133579	piece	4 piece

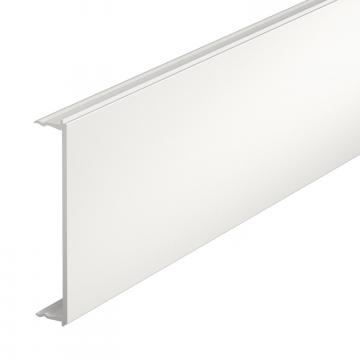

Cover Signa Base OT 700802	BRK 700802 rws	6132736	m	2 m

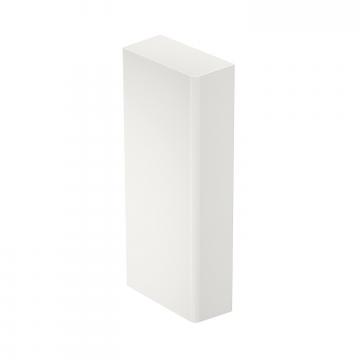

End piece Signa Base ES 70170	BRK ES70170 rws	6132781	piece	1 piece

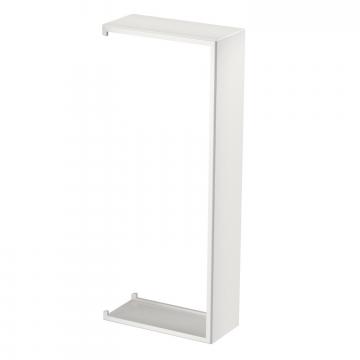

Joint cover Signa Base SSA 70170	BRK SSA70170 rws	6132795	piece	1 piece
Partition BRK TW	BRK TW	6133610	m	2 m

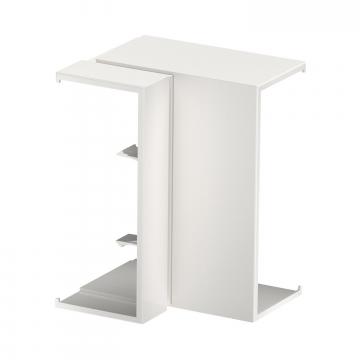

Internal corner Signa Base IE 70170	BRK IE70170 rws	6132756	piece	1 piece

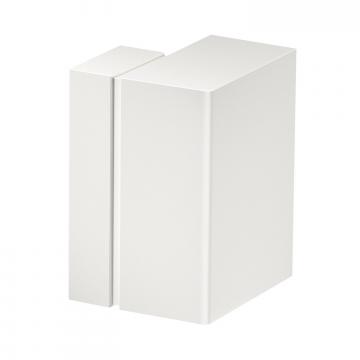

External corner Signa Base AE 70170	BRK AE70170 rws	6132748	piece	1 piece

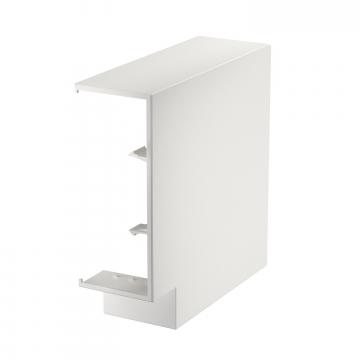

Flat angle Signa Base FW 70170	BRK FW70170 rws	6132770	piece	1 piece
Cable retaining clip Signa Base HK	SB HK	6132799	piece	10 piece
Trunking socket BRK, double	BRK 2STD rws	6121014	piece	1 piece

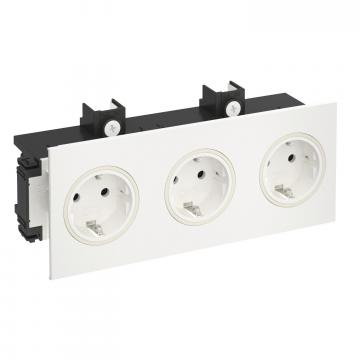

Trunking socket BRK, triple	BRK 3STD rws	6121032	piece	1 piece

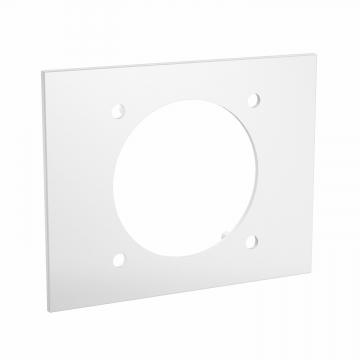

Device panels BRK BL CEE	BRK BL CEE rws	6133591	piece	1 piece

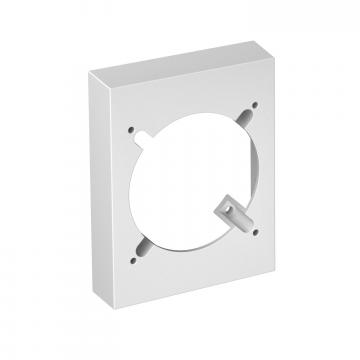

CEE flange BRK CEE FL	BRK CEE FL rws	6121124	piece	1 piece
Data socket BRK GD UAE	BRK GD UAE	6121072	piece	1 piece

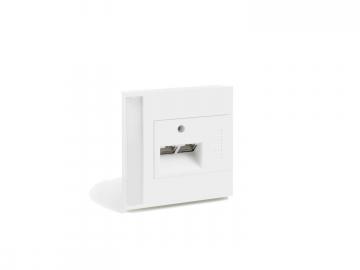

Data panel DB	DB 2 rws	6121075	piece	1 piece
Keystone support BRK-Key A45	BRK Key A45 rws	6121084	piece	1 piece

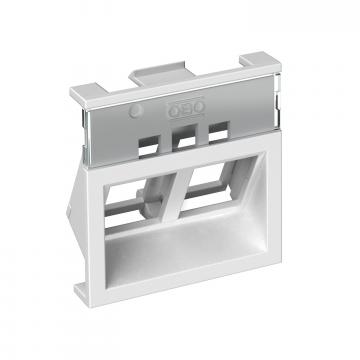

Keystone support BRK-Key B45	BRK Key B45 rws	6121090	piece	1 piece
