Device installation trunking, Signa Style, trunking width 110, trunking height 70 2000
morepic-1 morepic-2

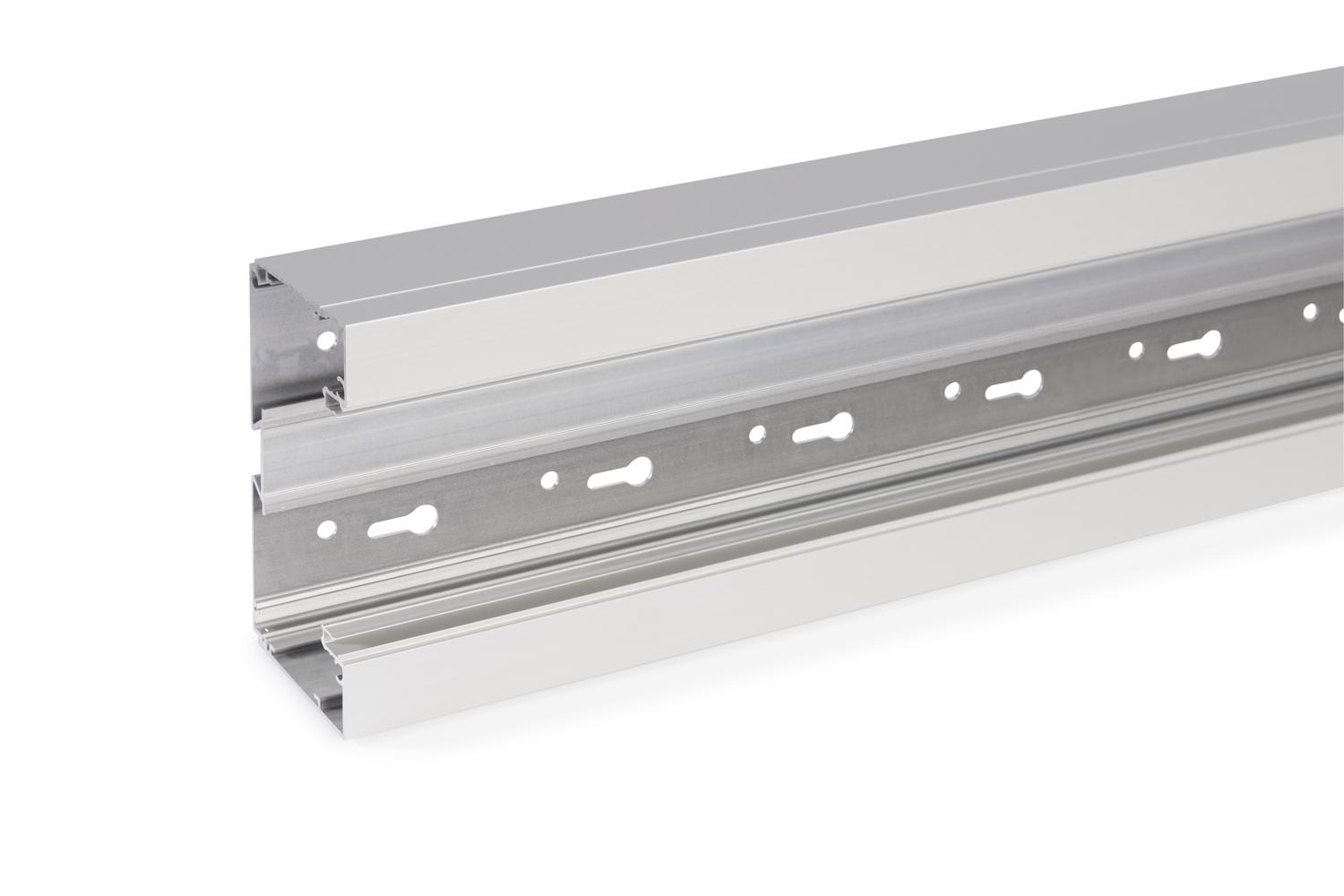

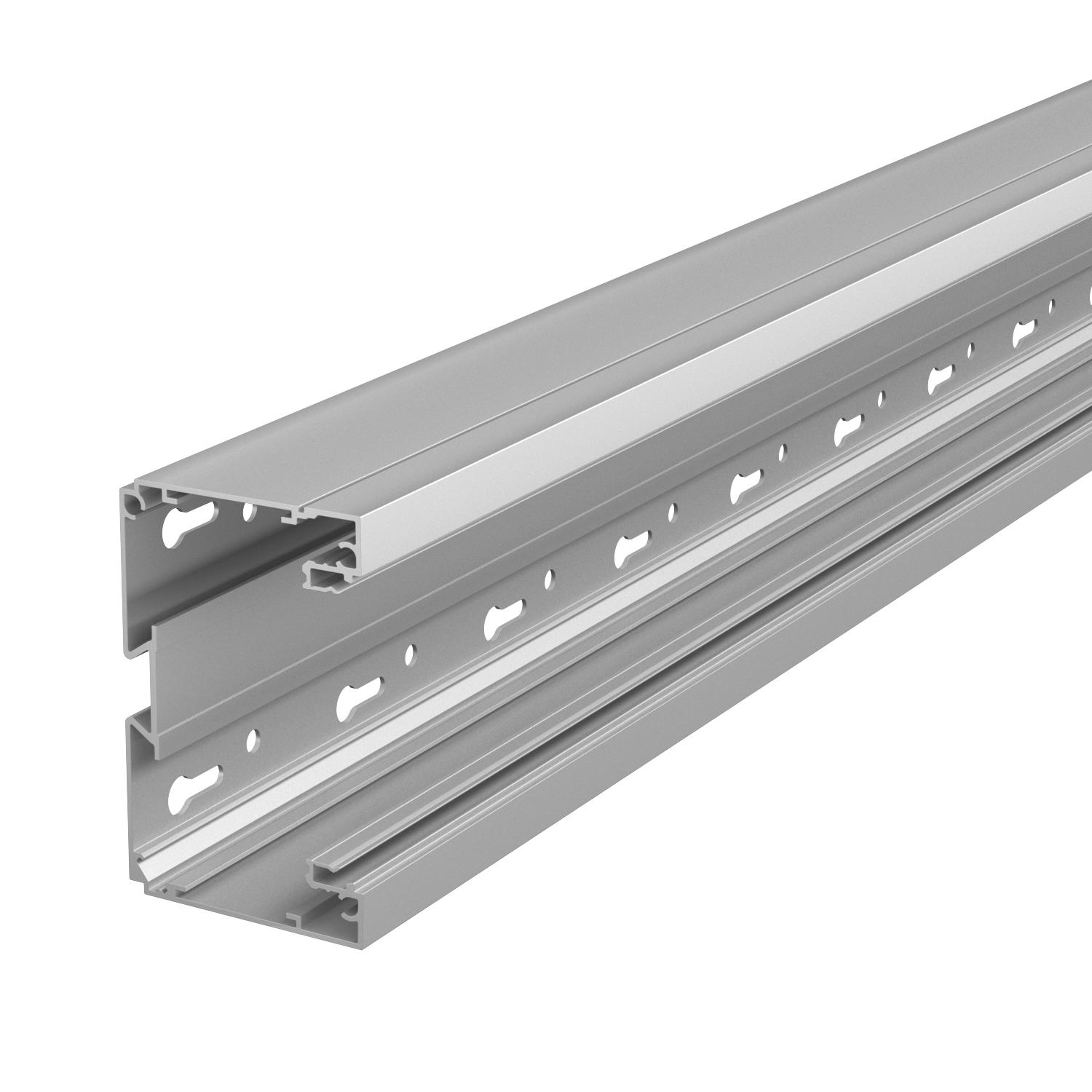

Device installation trunking, Signa Style, trunking width 110, trunking height 70

Item no. 6133260 | EAN 4012196735280

6133260 / BRA 70110 EL
2000 mm
Product description
Product description
Device installation trunking with base perforation for direct wall mounting or mounting on panels. Other RAL colours can be supplied on request. The visible surfaces of the painted device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, slight colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Base perforation With base perforation
Cable retaining clip no
Cover mounting type Internal
Cover supplied no
Cover width 80 mm

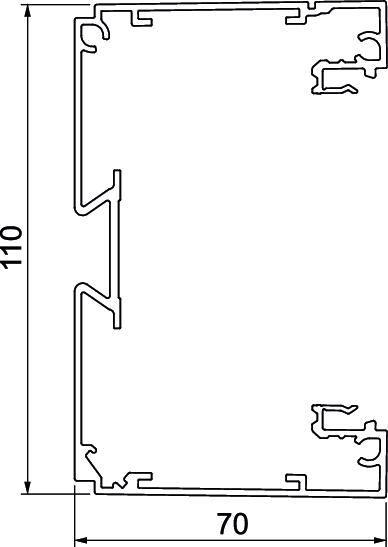

Dimension 70x110x2000
Duct connector no
Halogen-free yes
Height 70 mm
Length 2000 mm
Material Aluminium
Mounting perforation in base yes
Number of covers 1
Number of insertable partitions 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film yes
Rear panel version (inner side) Continuous DIN rail
Rectangular shape yes
Surface Anodised
Symmetrical no
Usable cross-section 6050 mm²
Width 110 mm
All types

All types

Types Length Item no. Quantity SSU
BRA 70110 EL 2000 mm 6133260
12 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Coupling pin Coupling pin BRA KS 6133621
100 piece
Accessory mounting box BRK GD, single Accessory mounting box BRK GD, single BRK GD gr 6133577
10 piece
Accessory mounting box BRK GD2CEE, double Accessory mounting box BRK GD2CEE, double BRK GD 2CEE gr 6133579
4 piece
Cover BRA OT 80 Cover BRA OT 80 BRA OT 80 EL 6133267
40 m

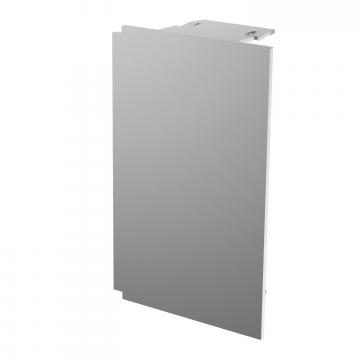

End piece BRA ES 70110 End piece BRA ES 70110 BRA ES70110 EL 6133291
1 piece
Partition BRA TW, steel Partition BRA TW, steel BRA TW Stahl 6133178
30 m

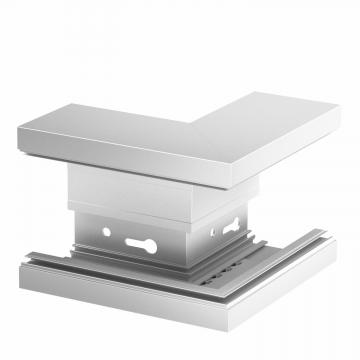

External corner BRA AE 70110 External corner BRA AE 70110 BRA AE70110 EL 6133271
1 piece
Cover BRA OT AE 80 Cover BRA OT AE 80 BRA OT 80 AE EL 6133266
1 piece

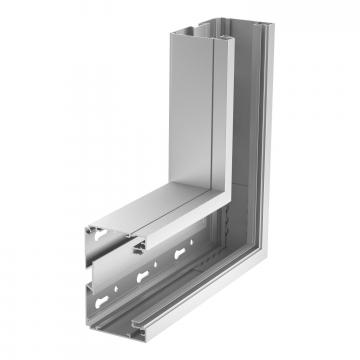

Flat angle BRA FW 70110, rising Flat angle BRA FW 70110, rising BRA FWS70110 EL 6133281
1 piece

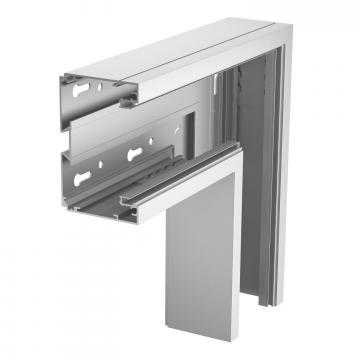

Flat angle BRA FW 70110, falling Flat angle BRA FW 70110, falling BRA FWF70110 EL 6133286
1 piece
Cover BRA OT FW 80 EL Cover BRA OT FW 80 EL BRA OT 80 FW EL 6133268
1 piece

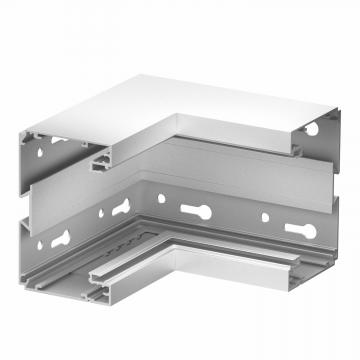

Internal corner BRA IE 70110 Internal corner BRA IE 70110 BRA IE70110 EL 6133276
1 piece
BRA ERD KL earthing clamp BRA ERD KL earthing clamp BRA ERD KL 6133407
10 piece
BRA ERD KUP earthing coupling BRA ERD KUP earthing coupling BRA ERD KUP 6133408
10 piece
BRA ERD VB TW earthing clip BRA ERD VB TW earthing clip BRA ERD VB TW 6133562
20 piece
BRA ERDL FL earthing wire BRA ERDL FL earthing wire BRA ERDL FL 6133564
10 piece
BRA ERD KL TW earthing terminal BRA ERD KL TW earthing terminal BRA ERD KL TW 6133615
100 piece
BRA EB earthing bridge BRA EB earthing bridge BRA EB 6133616
10 piece
Downloads

Download

EU declaration of conformity BRA 70110 EL / 6133260 , 0.10MB , pdf
Download
REACH Declaration of conformity BRA 70110 EL / 6133260 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRA 70110 EL / 6133260 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
