Device installation trunking, Signa Style, trunking width 170, trunking height 70
Item no. 6133262 | EAN 4012196735303
- Product description
-
Product description

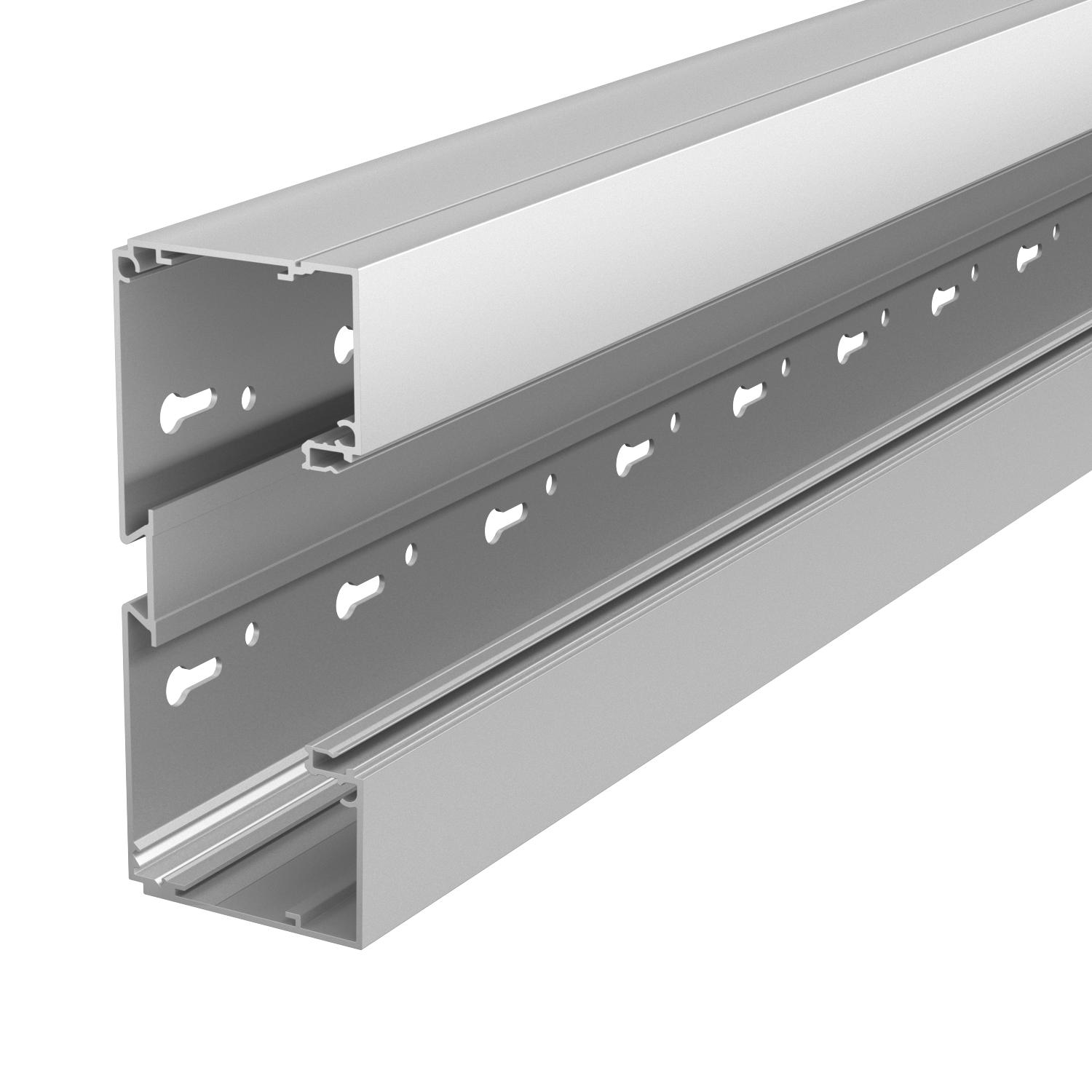

Device installation trunking with base perforation for direct wall mounting or mounting on panels. Other RAL colours can be supplied on request. The visible surfaces of the painted device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, slight colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).
-
- Technical data
-
Technical data

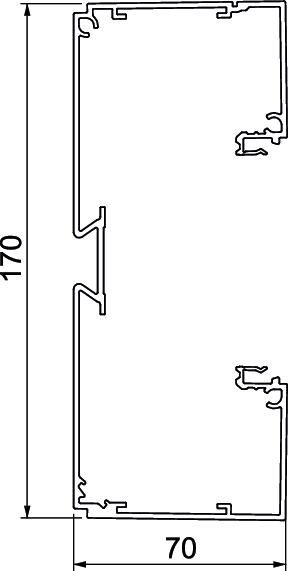

Antibacterial treatment no Base perforation With base perforation Cable retaining clip no Cover mounting type Internal Cover supplied no Cover width 80 mm Dimension 70x170x2000 Duct connector no Halogen-free yes Material Aluminium Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film yes Rear panel version (inner side) Continuous DIN rail Rectangular shape yes Surface Anodised Symmetrical no Usable cross-section 9880 mm² Dimensions
Height 70 mm Length 2000 mm Width 170 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Coupling pin
BRA KS 6133621 100 piece
Accessory mounting box BRK GD, single
BRK GD gr 6133577 10 piece
Accessory mounting box BRK GD2CEE, double
BRK GD 2CEE gr 6133579 4 piece
Cover BRA OT 80
BRA OT 80 EL 6133267 2 m

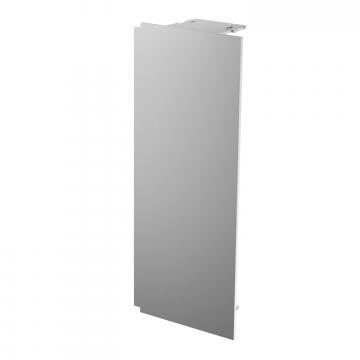

End piece BRA ES 70170
BRA ES70170 EL 6133293 1 piece
Partition BRA TW, steel
BRA TW Stahl 6133178 30 m

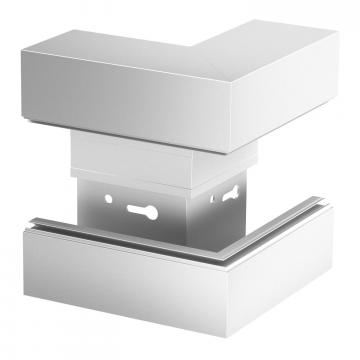

External corner BRA AE 70170
BRA AE70170 EL 6133273 1 piece
Cover BRA OT AE 80
BRA OT 80 AE EL 6133266 1 piece

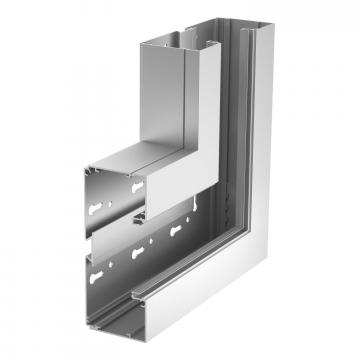

Flat angle BRA FW 70170, rising
BRA FWS70170 EL 6133283 1 piece
Flat angle BRA FW 70170, falling
BRA FWF70170 EL 6133288 1 piece
Cover BRA OT FW 80 EL
BRA OT 80 FW EL 6133268 1 piece

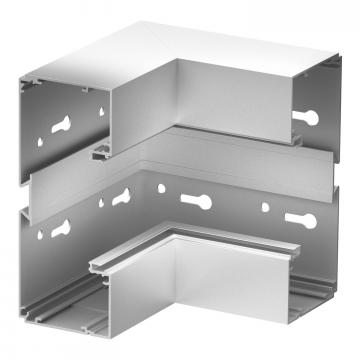

Internal corner BRA IE 70170
BRA IE70170 EL 6133278 1 piece
BRA ERD KL earthing clamp
BRA ERD KL 6133407 10 piece
BRA ERD KUP earthing coupling
BRA ERD KUP 6133408 10 piece
BRA ERD VB TW earthing clip
BRA ERD VB TW 6133562 20 piece
BRA ERDL FL earthing wire
BRA ERDL FL 6133564 10 piece
BRA ERD KL TW earthing terminal
BRA ERD KL TW 6133615 100 piece
BRA EB earthing bridge
BRA EB 6133616 10 piece - Downloads
-
