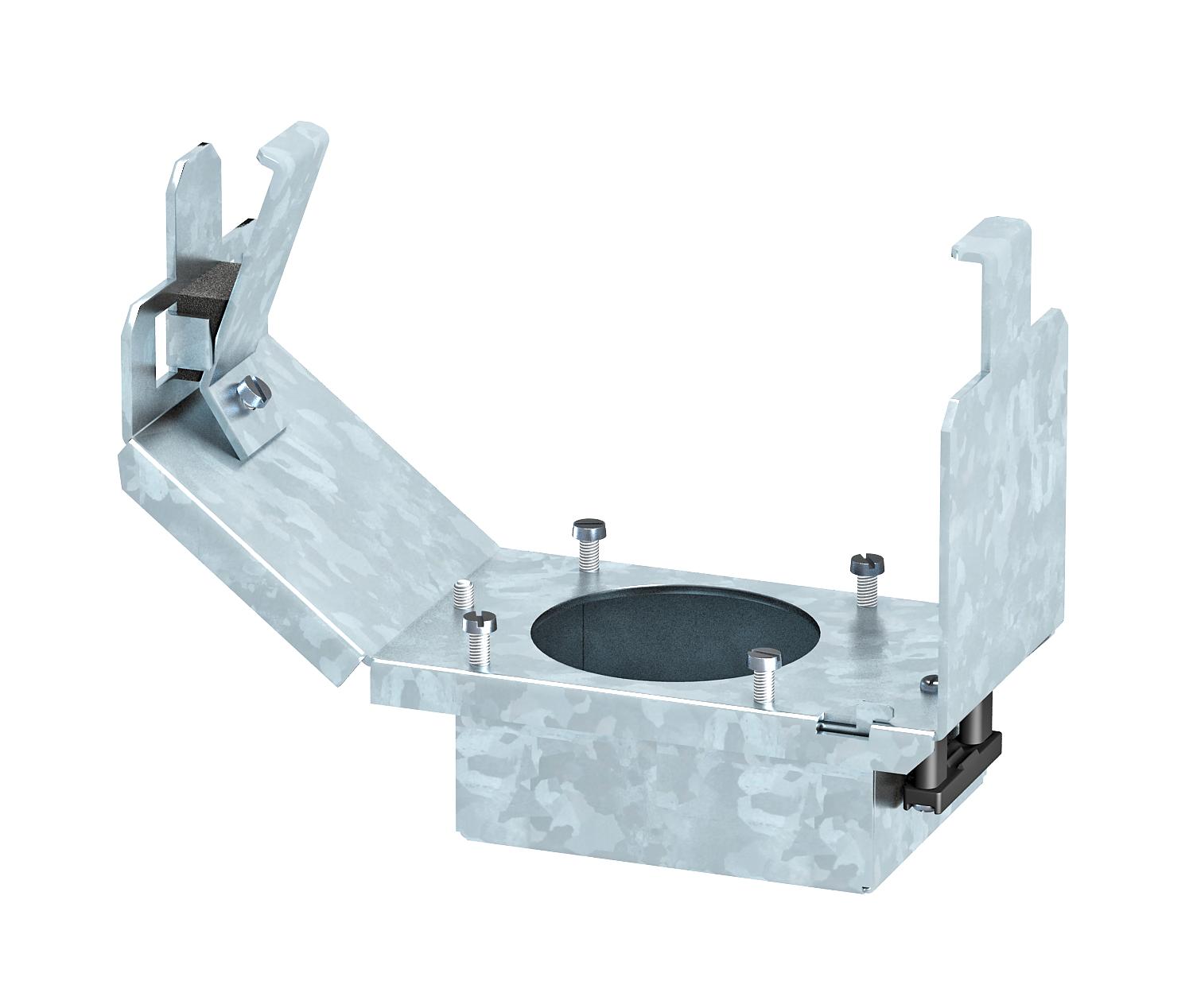

Device support for CEE installation, system length 165 mm, without CEE
Item no. 7407665 | EAN 4012195450788
- Product description
-
Product description
Device support of nominal size 2 for the installation of a CEE plug connection 16 A or 32 A for installation in service outlets and cassettes of nominal size 2, 4, 6 and R7. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.
-
- Technical data
-
Technical data

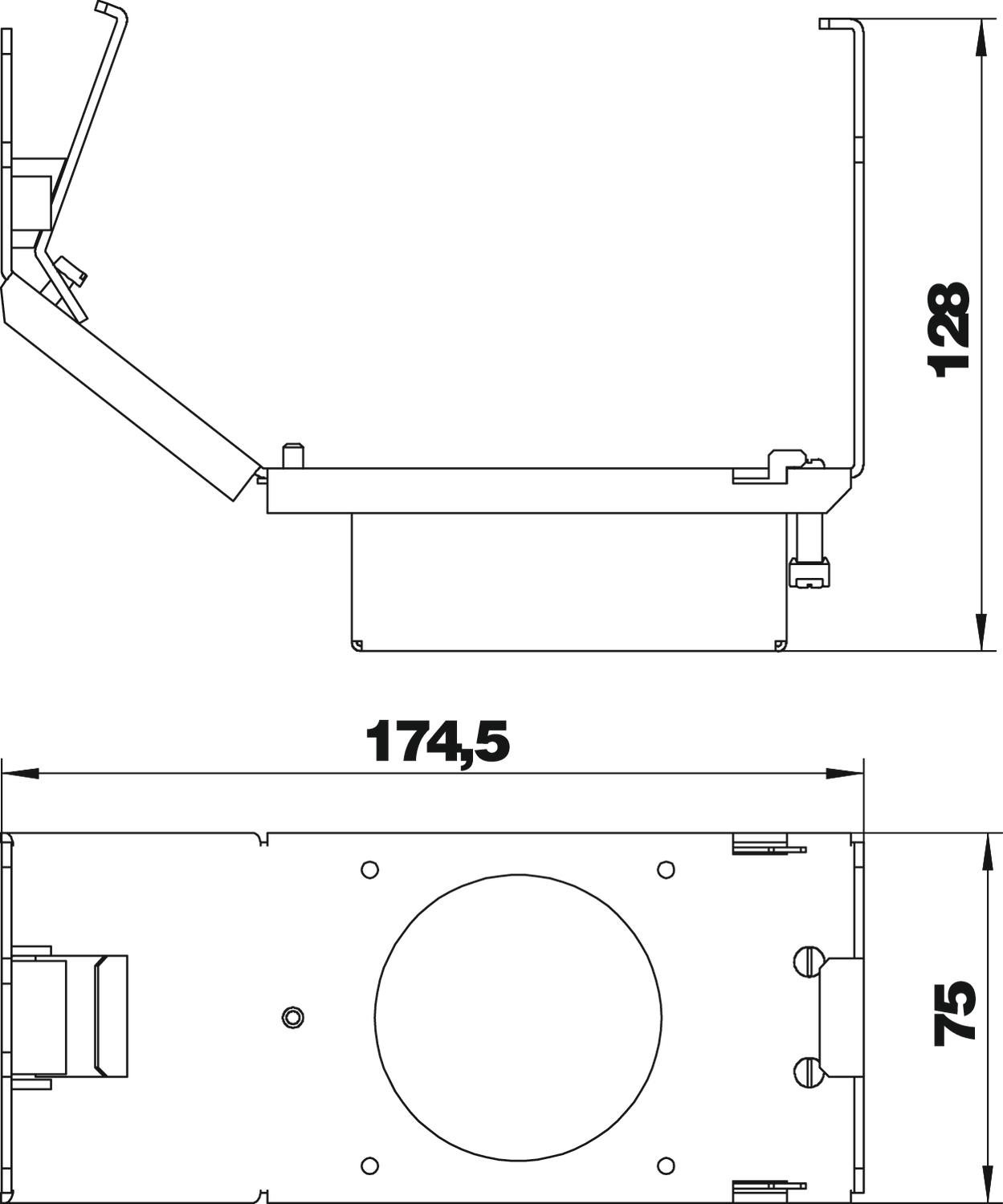

Dimension 175x75x128 Floor plate no Material Steel Number of installable devices 1 Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Surface Strip galvanized - All types
- Downloads
-
Data sheet GT2CEE / 7407665 , 0.18MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
