Device support for CEE installation, system length 208 mm, with CEE

Item no. 7407667 | EAN 4012195450825

Product description

Product description

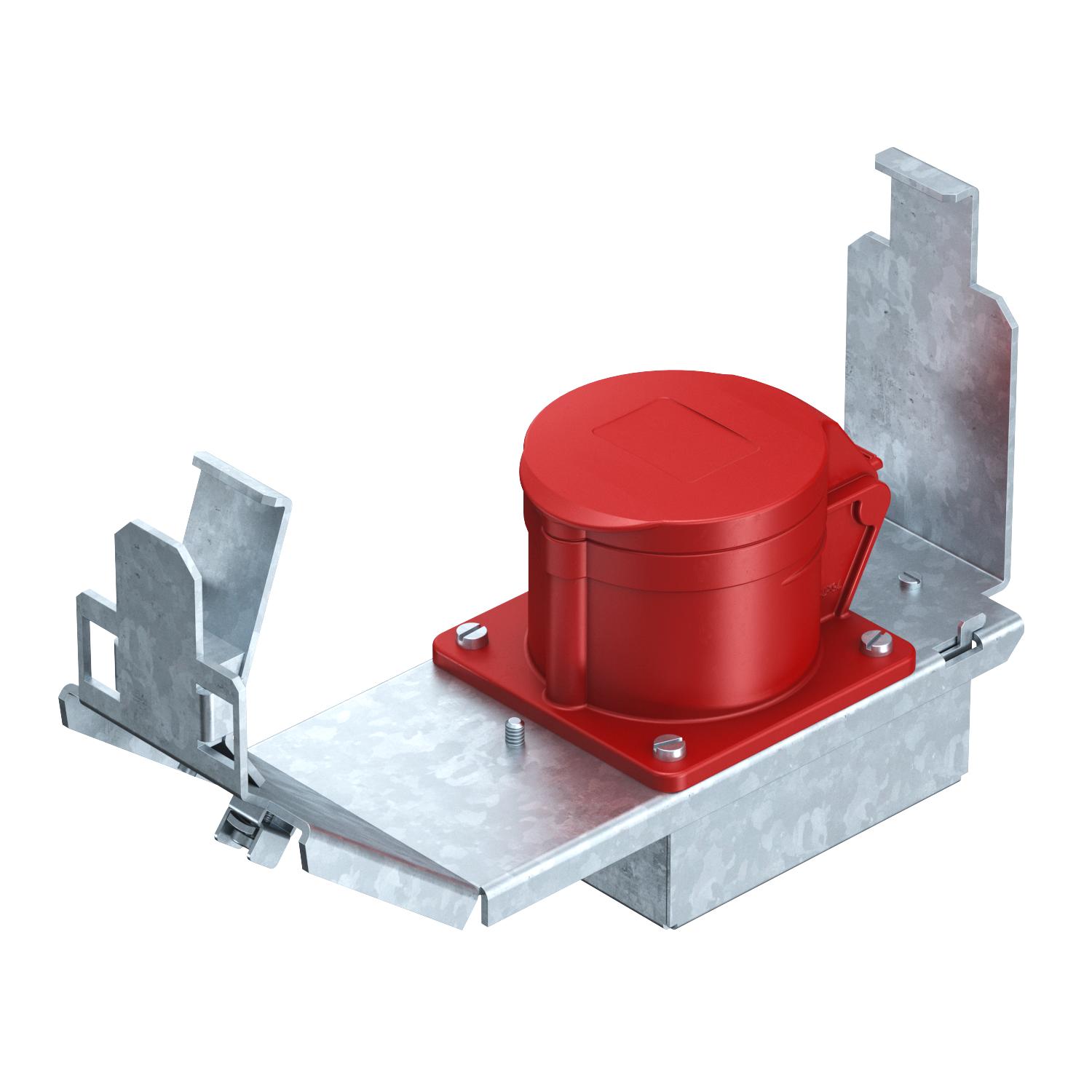

Device support of nominal size 3 with a CEE plug connection 16 A for installation in service outlets and cassettes of nominal sizes R7, 9 and R9. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

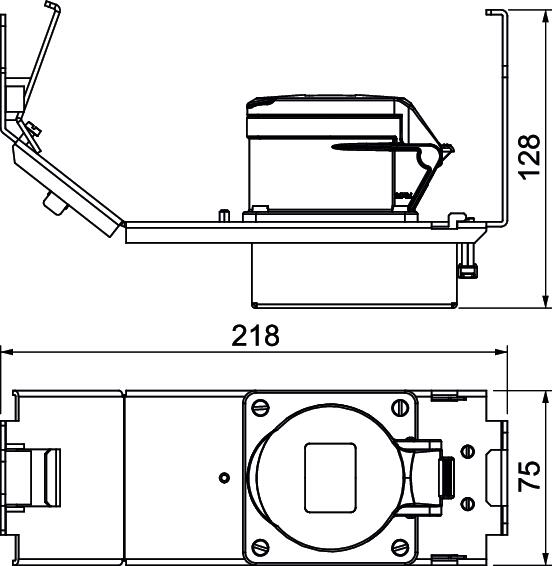

Dimension 218x75x128
Floor plate no
Material Steel
Seal installation option no
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts yes
Suitable for underfloor ducts yes
Surface Strip galvanized
All types

All types

Types Item no. Quantity SSU
GT3 CEE16 7407667
4 piece
