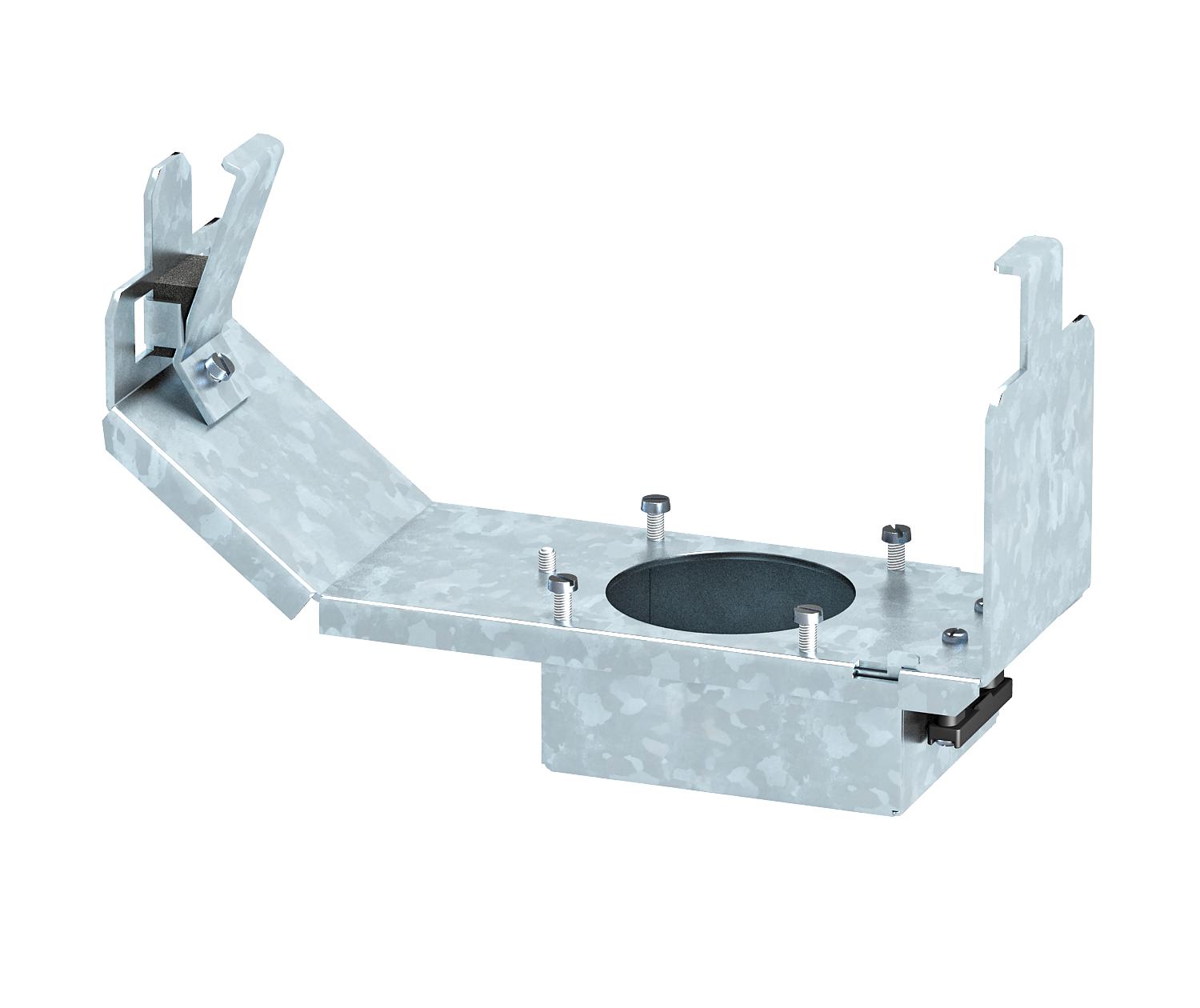

Device support for CEE installation, system length 208 mm, without CEE

Item no. 7407669 | EAN 4012195450832

Product description
Product description
Device support of nominal size 3 for the installation of a CEE plug connection 16 A or 32 A for installation in service outlets and cassettes of nominal size R7, 9 and R9. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

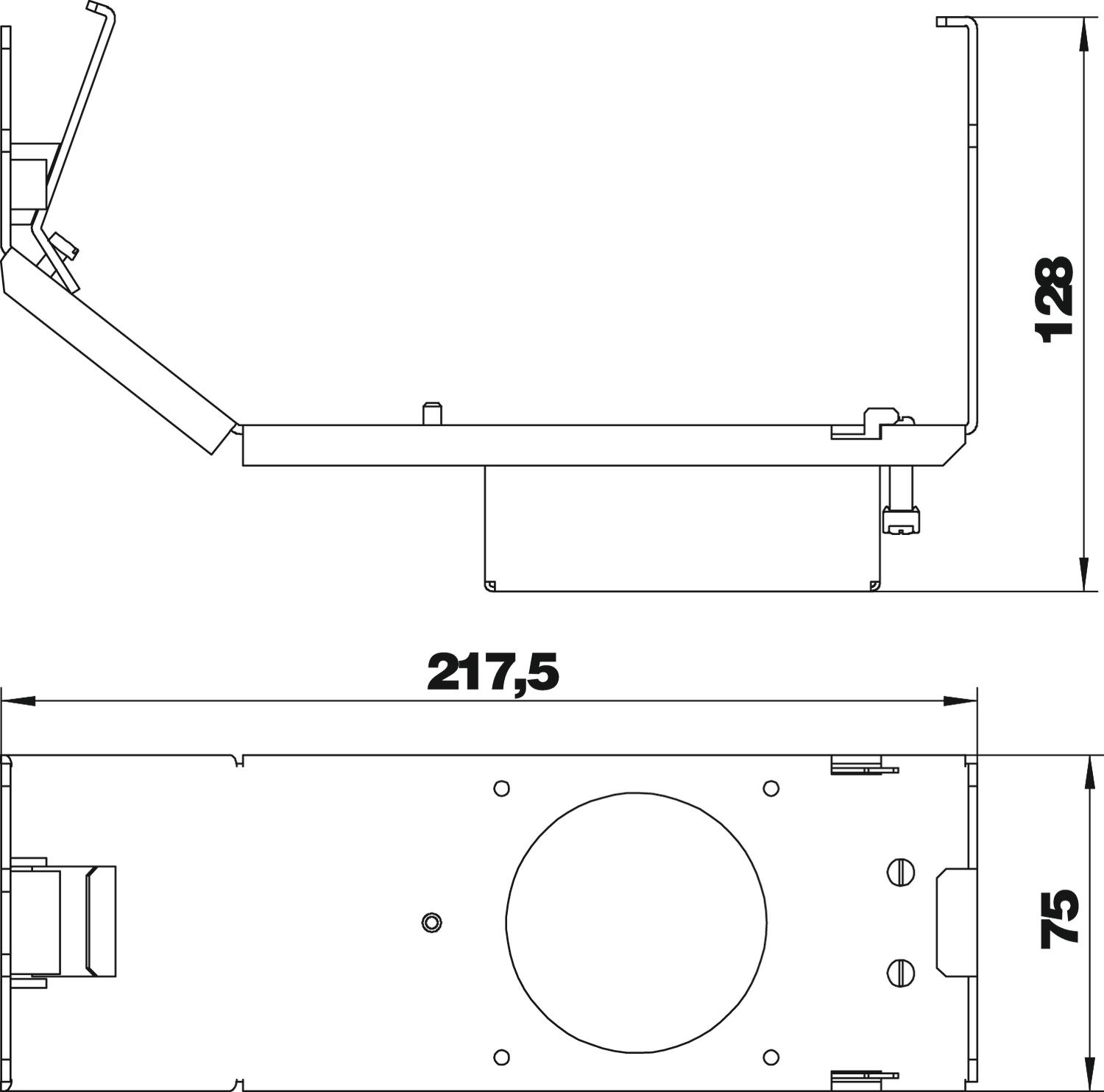

Dimension 218x75x128
Floor plate no
Material Steel
Number of installable devices 1
Seal installation option no
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts yes
Suitable for underfloor ducts yes
Surface Strip galvanized
All types

All types

Types Item no. Quantity SSU
GT3 CEE 7407669
10 piece
