Device support SL 2GT20110 Pure white; RAL 9010
morepic-1 morepic-2

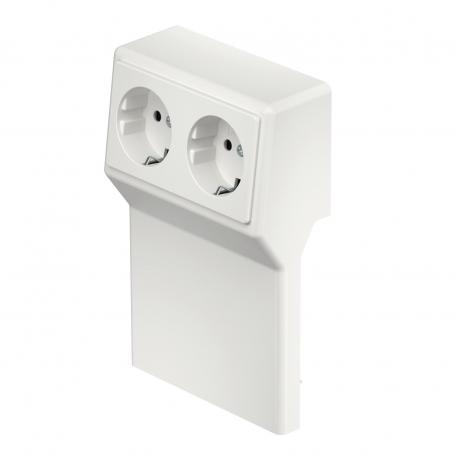

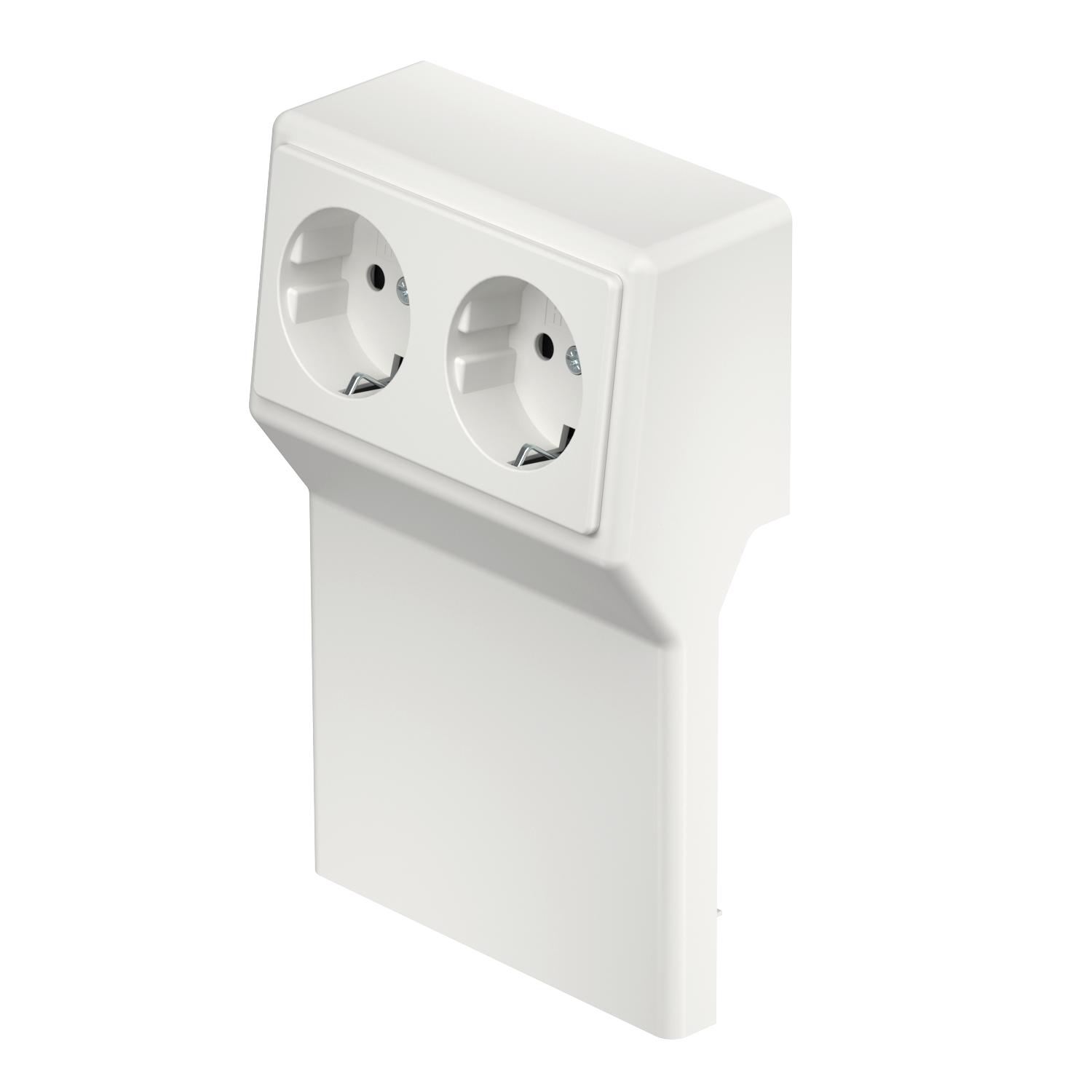

Device support SL 2GT20110

Item no. 6132250 | EAN 4012196726462

6132250 / SL2GT20110 rws
Pure white; RAL 9010
Product description

Product description

Device support with pre-terminated double protective contact socket for the skirting trunking in the trunking width 110 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessory mounting type Pre-equipped
Colour Pure white; RAL 9010
Decoration Without
Equipment 2x protective contact socket
Halogen-free no

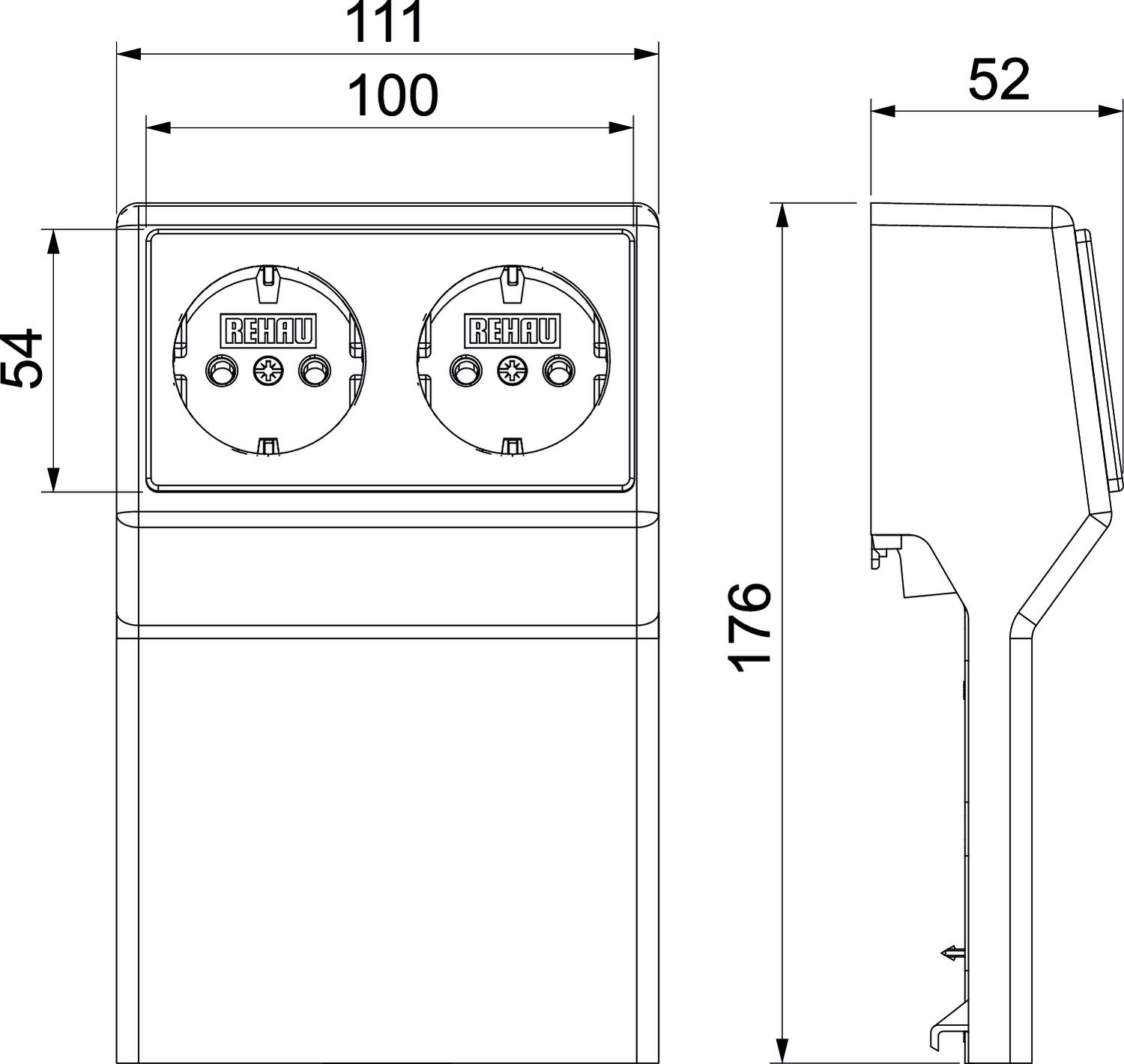

Height 176 mm
Length 52 mm
Material Polyvinylchloride
Number of units 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Width 111 mm
All types

All types

Types Colour Item no. Quantity SSU
SL2GT20110 rws Pure white; RAL 9010 6132250
10 piece
