Device support SL2GT5070 Cream; RAL 9001
morepic-1 morepic-2

Device support SL2GT5070

Item no. 6132246 | EAN 4012196720729

Product description

Product description

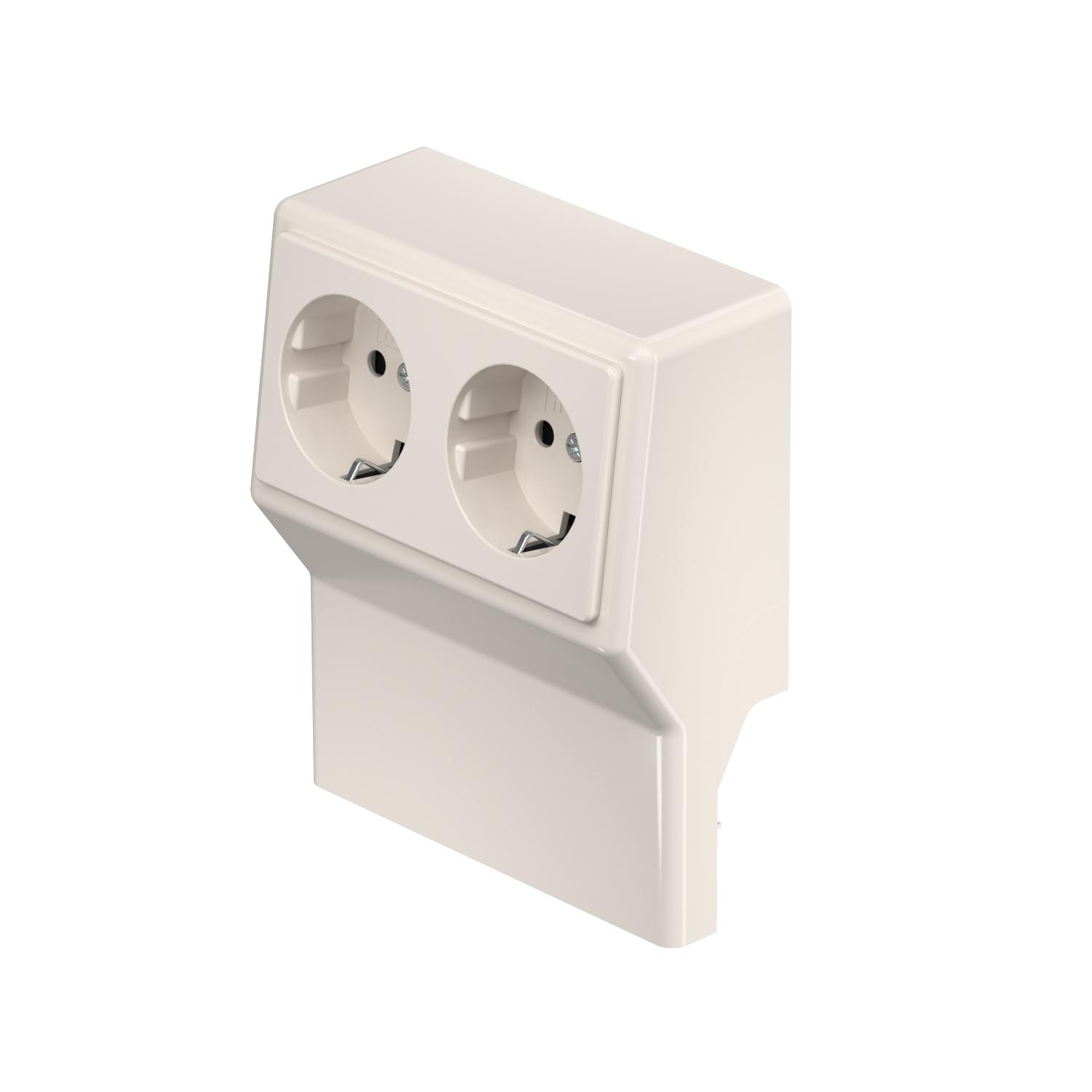

Device support with pre-terminated double protective contact socket for the skirting trunking in the trunking widths 50 and 70 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessory mounting type Pre-equipped
Colour Cream; RAL 9001
Decoration Without
Equipment 2x protective contact socket
Halogen-free no

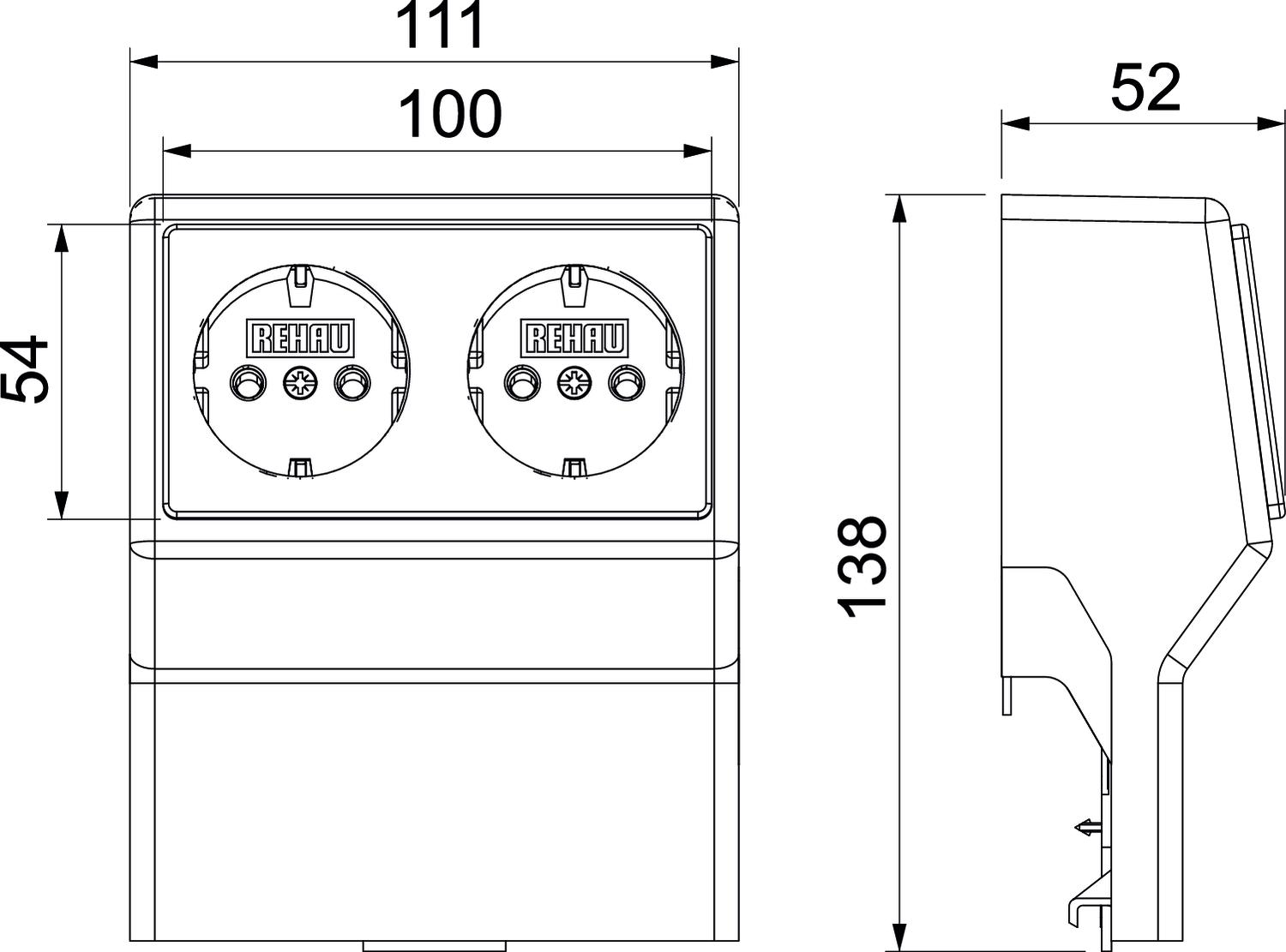

Height 138 mm
Length 52 mm
Material Polyvinylchloride
Number of units 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Width 111 mm
All types

All types

Types Colour Item no. Quantity SSU
SL2GTK5070 rws Pure white; RAL 9010 6132179
10 piece
SL2GT5070 rws Pure white; RAL 9010 6132245
10 piece
SL2GT5070 cws Cream; RAL 9001 6132246
10 piece
SL2GT5070 lgr Light grey; RAL 7035 6132247
10 piece
